1. Names and Functions of Components 3-1

Names and Specifications of Components

1. Names and Functions of Components

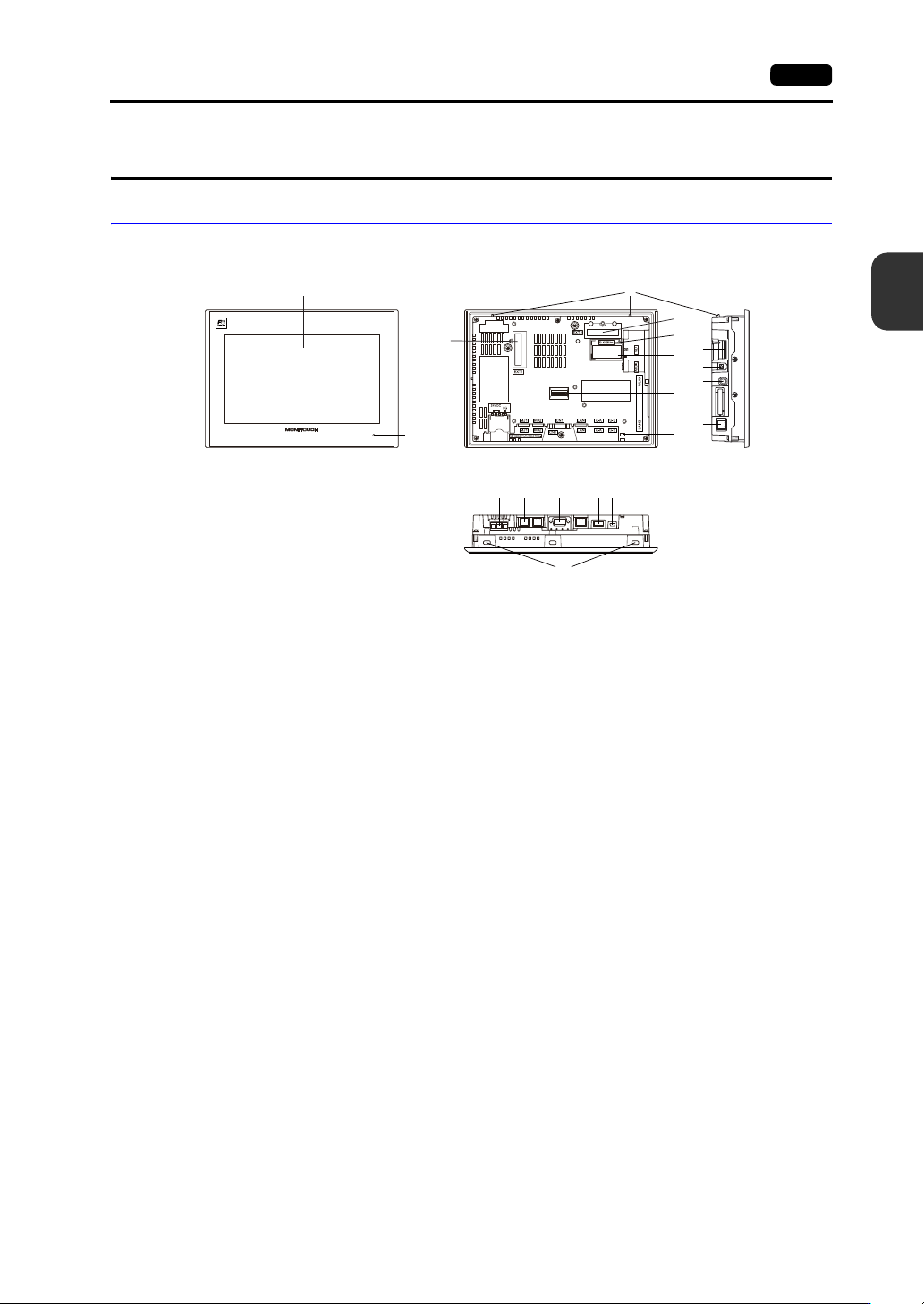

Advanced Model

1. Display

This is the display area.

2. POWER lamp

This lamp illuminates green when the V9 series is powered ON and operating normally.

The lamp flashes when there is a failure (circuit board failure, power supply failure).

3. Communication interface unit connector (EXT1)

This connector is used to connect any “CUR-xx” communication interface unit (for SX-BUS,

OPCN-1, T-Link, CC-Link, Ethernet, PROFIBUS-DP, DeviceNet, and FL-net).

4. Fall prevention tabs

These tabs prevent the V9 series unit from falling off the mounting panel until the mounting fixtures

are tightened.

5. Connector for optional unit (EXT2)

This connector is used to connect each optional “GUR-xx” unit (for video input, RGB input, and

RGB output).

6. SD card access LED

This LED flashes when the unit is reading from or writing to an SD card.

7. Battery holder

This part contains the backup battery for the SRAM and clock.

When the battery voltage drops, replace the battery with a new one.

8. DIP switches

This 8-bit DIP switch is used for setting the terminating resistance of the CN1 signal line and the

MJ1/MJ2 RS-485 signal line.

9. USB cable clamp hole

This clamp hole is used to attach a USB cable tie.

10. SD card slot (SD)

This slot is where an SD card can be inserted.

11. Audio output connector (AUDIO)

This terminal is used for audio output.

V910xiW

15 16 17 18 19 20
