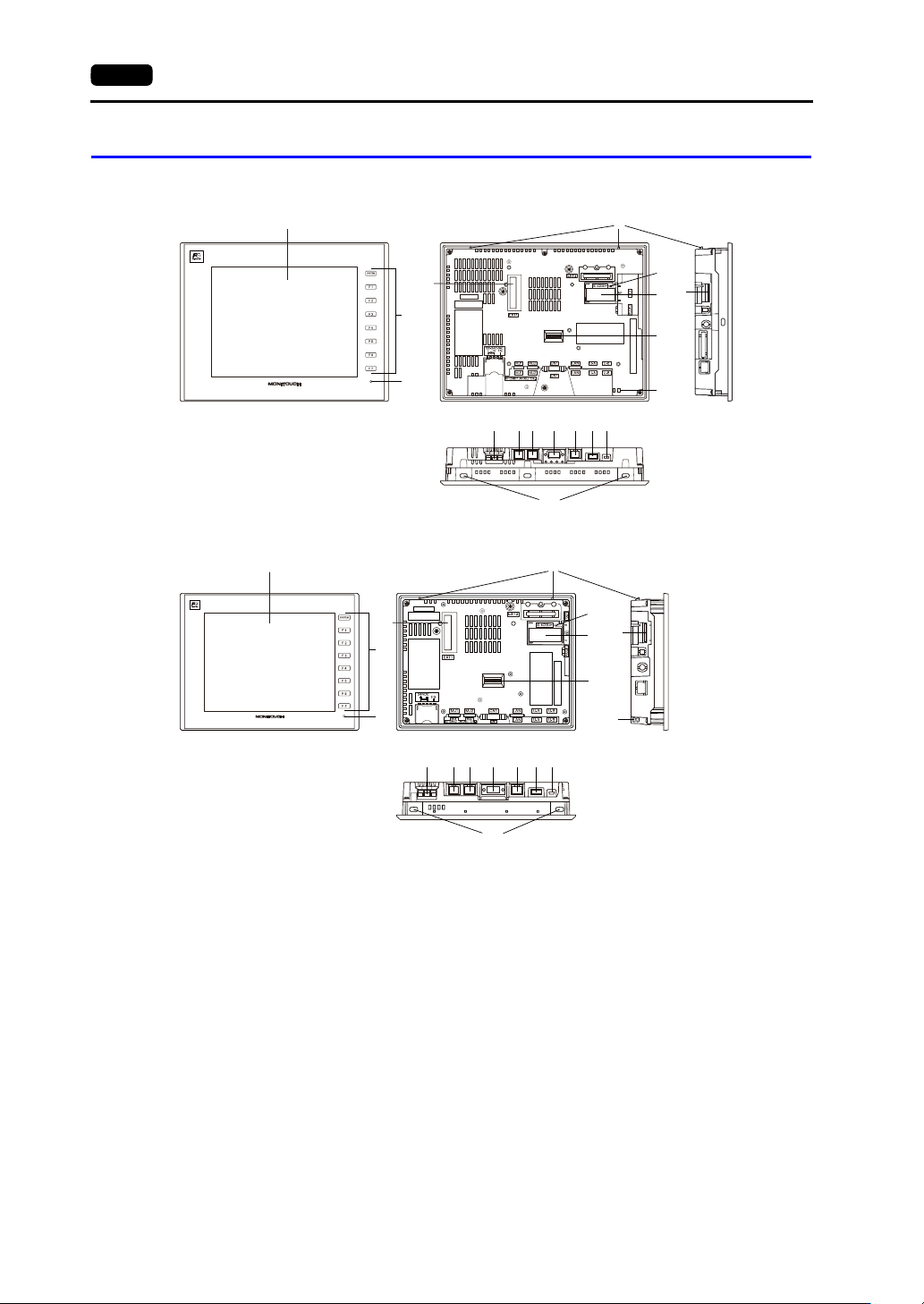

3-6 1. Names and Functions of Components

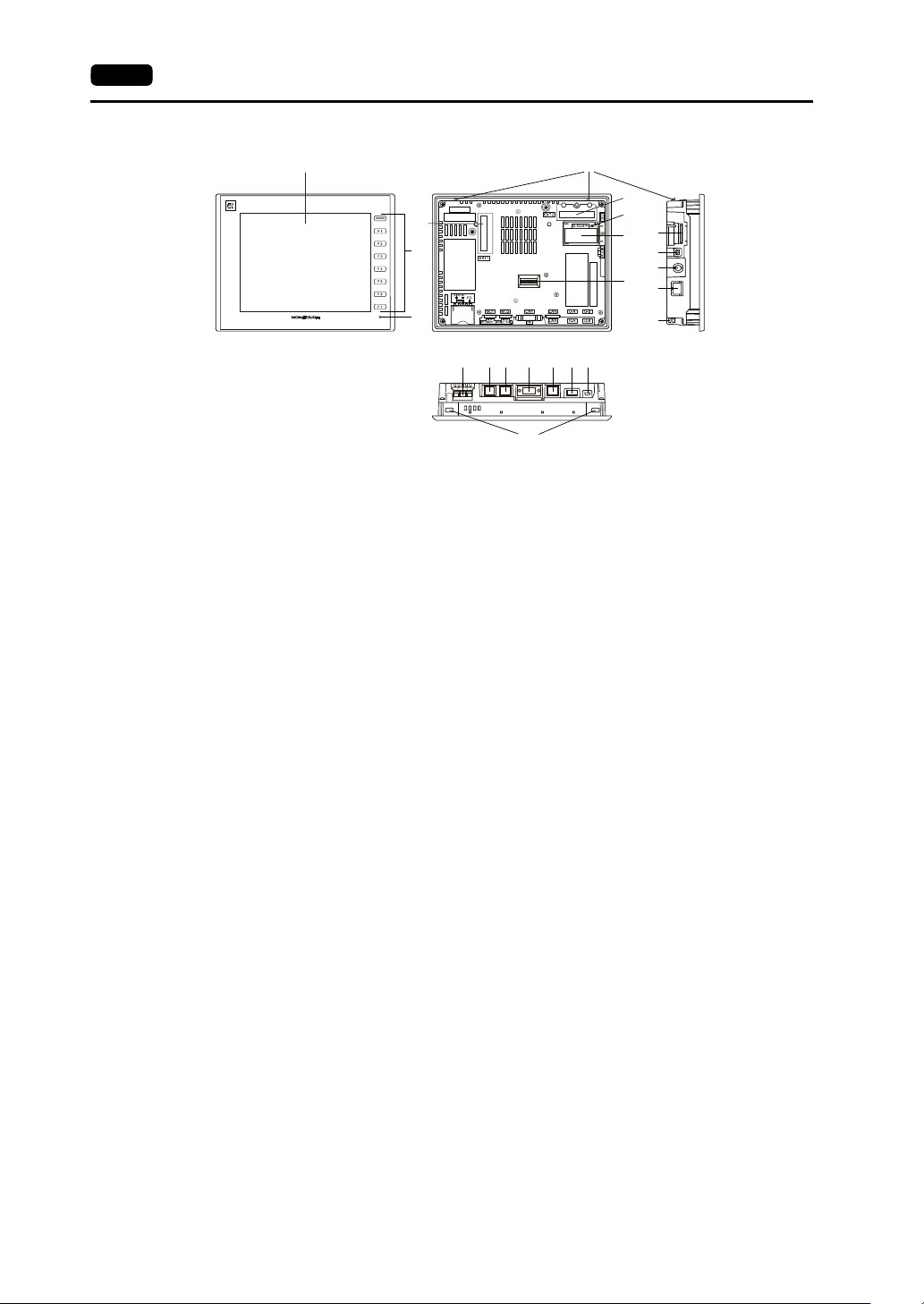

1. Display

This is the display area.

2. Function switches

There are 8 function switches comprising the [SYSTEM] switch and [F1] to [F7] switches.

The [SYSTEM] switch is used to display or hide the system menu (for switching between the RUN

and Local modes, adjusting brightness, etc.).

Switches [F1] to [F7] can be used as user switches in RUN mode.

3. POWER lamp

This lamp illuminates green when the V9 series is powered ON and operating normally. The lamp

flashes when there is a failure (backlight failure, circuit board failure, power supply failure).

4. Communication interface unit connector (EXT1)

This connector is used to connect any “CUR-xx” communication interface unit (for SX-BUS,

OPCN-1, T-Link, CC-Link, Ethernet, PROFIBUS-DP, DeviceNet, and FL-net).

5. Fall prevention tabs

These tabs prevent the V9 series unit from falling off the mounting panel until the mounting fixtures

are tightened.

6. Connector for optional unit (EXT2)

This connector is used to connect each optional “GUR-xx” unit (for video input, RGB input, and

RGB output).

7. SD card access LED

This LED flashes when the unit is reading from or writing to an SD card.

8. Battery holder

This part contains the backup battery for the SRAM and clock.

When the battery voltage drops, replace the battery with a new one.

9. DIP switches

This 8-bit DIP switch is used for setting the terminating resistance of the CN1 signal line and the

MJ1/MJ2 RS-485 signal line.

10. USB cable clamp hole

This clamp hole is used to attach a USB cable tie.

11. SD card slot (SD)

This slot is where an SD card can be inserted.

12. Audio output connector (AUDIO)

This terminal is used for audio output.

13. Connector for wireless LAN dipole antenna (WLAN)

Only for wireless LAN I/F models.

This connector is for connecting the external dipole antenna “V9-ANT” (optional) for wireless LAN.

16 17 18 19 20 21

V9080iSD

1. Names and Functions of Components 3-7

Names and Specifications of Components

14. 100BASE-TX/10BASE-T connector (LAN2)

Only for additional wired LAN I/F models.

This connector is used for Ethernet communication.

15. Power supply terminal block

This terminal block supplies power to the V9 series unit (100 to 240 VAC, 24 VDC).

16. Modular jack 1 (MJ1)

This connector is used for screen program transfer and connection with PLCs or other peripheral

devices.

17. Modular jack 2 (MJ2)

This connector is used for connection with PLCs or other peripheral devices.

18. PLC communication connector (CN1)

This connector is used for connection to a controller (PLC, temperature controller, inverter, etc.).

19. 100BASE-TX/10BASE-T connector (LAN)

This connector is used for Ethernet connection.

20. USB-A (U-A)

This port is used to connect a printer, USB flash drive, keyboard, or mouse.

21. USB mini-B (U-B)

This port is used for transferring screen programs or connecting a PictBridge-compatible printer.

22. Mounting holes

The mounting holes are used for inserting fixtures when securing the V9 series unit to a mounting

panel.

3-8 1. Names and Functions of Components

Lite Model
