1-2 1. Features
10. Scheduler function
Predetermined operations (turning bits ON, executing macros, etc.) can be executed at a time set
in advance, such as every week, every day, or a specified time. Operations such as periodical
saving of logging/alarm data can be scheduled easily.
11. TrueType font
TrueType fonts enable smoother character expression through anti-aliasing processing.
1
2. Models and Peripheral Equipment 1-3
Product Outline
2. Models and Peripheral Equipment
MONITOUCH Models
The model name consists of the following information.
Lineup
Power supply specification
None: 100 to 240 VAC type
D: 24 VDC type
Additional wired LAN I/F
None: No additional wired LAN I/F
L: With additional wired LAN I/F
Wireless LAN I/F
None: No wireless LAN I/F
R: With wireless LAN I/F
Device specification
X: TFT color LCD (XGA)
W: TFT color LCD (WSVGA: V910xiW)
(WVGA: V907xiW)
S: TFT color LCD (SVGA)
C: TFT color LCD (VGA)
T: TFT color LCD (VGA)
Functional specification
i: With built-in LAN port
Touch switch specification
0: Analog resistive film type
1: Capacitive type
Screen size
15: 15.0-inch
12: 12.1-inch
10: 10.4-inch (Standard/Lite models)
10.1-inch, widescreen (Advanced models)
08: 8.4-inch
07: 7.0-inch widescreen (Advanced models)
06: 5.7-inch
V9 i
Model
15.0-inch 12.1-inch 10.4-inch
10.1-inch
Widescreen
8.4-inch
7.0-inch
Widescreen
5.7-inch
XGA
(1024×768)
SVGA
(800 600)
SVGA
(800 600)
VGA
(640 480)
WSVGA
(1024 600)
SVGA
(800 600)
VGA
(640 480)
WVGA
(800 480)
VGA
(640×480)
Advanced - - -
V9101iWRLD
V9100iWRLD
V9101iWLD
V9100iWLD
--
V9071iWRLD
V9070iWRLD
V9071iWLD
V9070iWLD
-
Standard
V9150iX
V9150iXD
V9150iXLD
V9150iXRD
V9120iS
V9120iSD
V9120iSLD
V9120iSRD
V9100iS
V9100iSD
V9100iSLD
V9100iSRD
--
V9080iSD
V9080iSLD
V9080iSRD
---
Lite - -
V9100iC
V9100iCD
- - V9080iCD - V9060iTD
1-4 2. Models and Peripheral Equipment

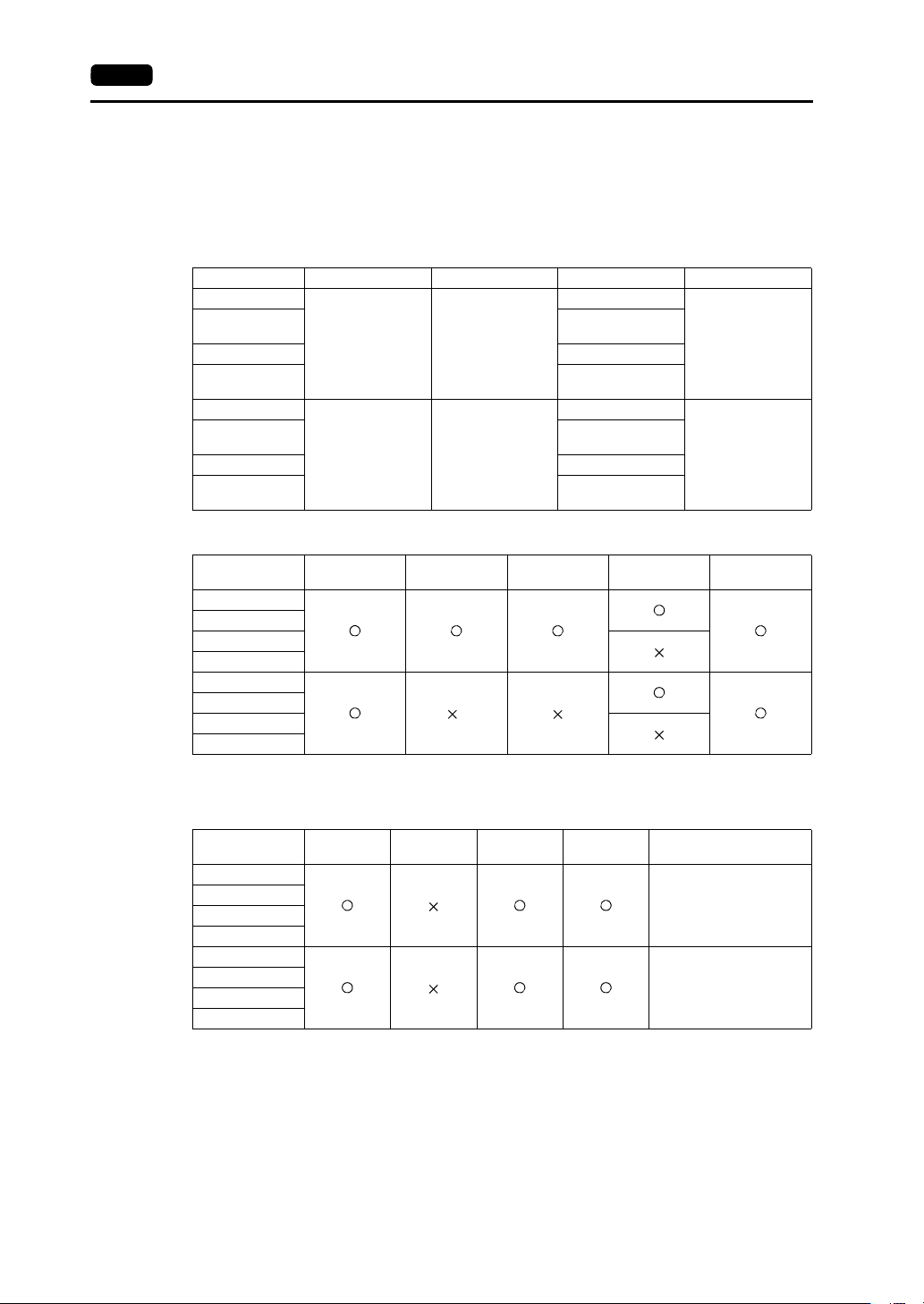

Advanced Model
A high-definition/resolution and high-performance model standardly equipped with a wide
high-resolution LCD, two wired LAN connectors, and connectors for communication interface units.
Capacitive touch panel types are also available.
Unit specifications
External I/F
*When attaching the optional “DUR-00” unit, connect it to the communication I/F unit connector.
Standards
Model Display Device Resolution Touch switch Power supply type
V9101iWRLD
10.1-inch
Widescreen
1024 600 dots
Capacitive type
DC power supply
V9100iWRLD
Analog resistive film
type
V9101iWLD Capacitive type
V9100iWLD
Analog resistive film
type
V9071iWRLD
7.0-inch
Widescreen
800 480 dots
Capacitive type
DC power supply
V9070iWRLD
Analog resistive film
type
V9071iWLD Capacitive type
V9070iWLD
Analog resistive film
type
Model
Communication
I/F Unit
Optional Units Audio Output Wireless LAN
Additional
Wired LAN
V9101iWRLD
V9100iWRLD
V9101iWLD
V9100iWLD
V9071iWRLD
*
V9070iWRLD
V9071iWLD
V9070iWLD
Model UL508 ANSI/ISA CE KC
Wireless Standards
Certification in:
V9101iWRLD
Japan, Europe, USA,
Korea
V9100iWRLD
V9101iWLD
V9100iWLD
V9071iWRLD
Japan, Europe, USA,
Korea
V9070iWRLD
V9071iWLD
V9070iWLD
