Instruction manual SIPLACE X-Series 3 Technical data and assemblies From software version 713.0 Edition 11/2019 3.5 Placement head 125 3.5.5 SIPLACE MultiSt ar CPP 3 3 Fig. 3.5 - 5 SIPLACE MultiSt ar C PP - front view , …
3 Technical data and assemblies Instruction manual SIPLACE X-Series
3.5 Placement head From software version 713.0 Edition 11/2019
124
The vacuum pump is switched on and off with the placement machine. The station software auto-
matically takes into account an overrun time of 6 minutes, to prevent the motor overheating.
3
3.5.4.5 Maintenance instructions
Observe the additional maintenance instructions for the vacuum pump.
Read the relevant section in the maintenance manual for your placement machine.
PLEASE NOTE
The compressed air consumption values can be found in section 3.3
, page 110.
Instruction manual SIPLACE X-Series 3 Technical data and assemblies
From software version 713.0 Edition 11/2019 3.5 Placement head
125
3.5.5 SIPLACE MultiStar CPP
3
3

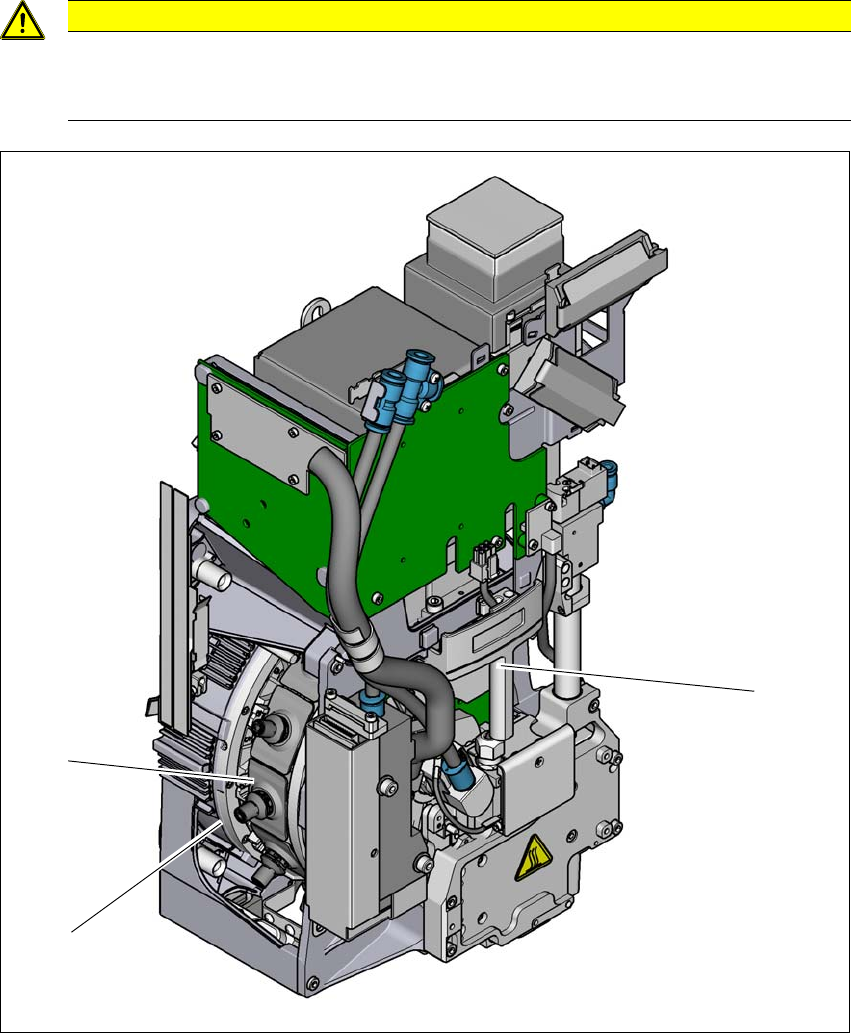

Fig. 3.5 - 5 SIPLACE MultiStar CPP - front view, function groups part 1
(1) Handle
(2) Star with 12 segments
(3) Segment with integrated DP drive
CAUTION
Always take hold of the handle to push the placement head
The placement head may only be moved by pushing manually against the handle provid-
ed.
(2)
(3)
(1)
3 Technical data and assemblies Instruction manual SIPLACE X-Series
3.5 Placement head From software version 713.0 Edition 11/2019
126
3
Fig. 3.5 - 6 SIPLACE MultiStar CPP - front view, function groups part 2
(1) C&P component camera, type 30 GigE
(2) Torque motor for star drive
(3) Z drive (linear motor)
(4) Return cylinder
(5) Pressure control valve
(1)
(2)
(3)
(4)
(5)
