3 Technical data and assemblies Instruction manual SIPLACE X-Series
3.8 SIPLACE tape feeder modules for SIPLACE X-Series S From software version 713.0 Edition 11/2019
160
3.8.4.1 Feeder module adapter with label presenter
3

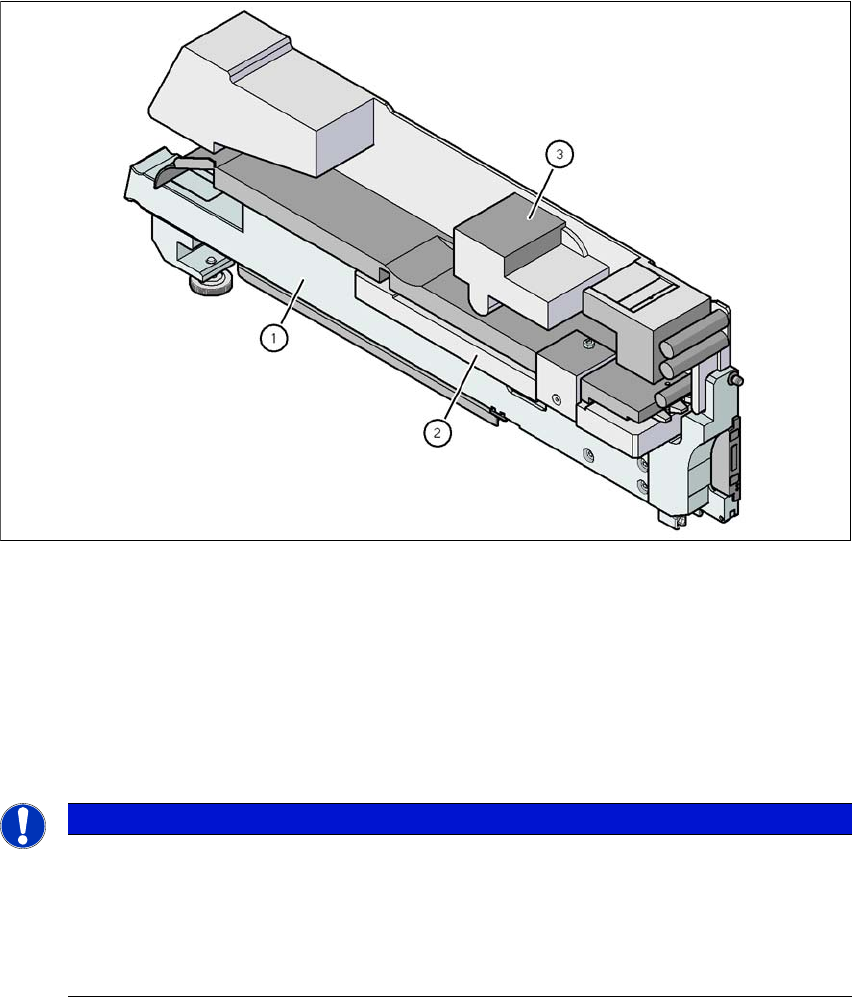

Fig. 3.8 - 5 Feeder module adapter with label presenter
(1) Adapter for X-Series S feeder modules (item no. 00141305-xx)
(2) Adapter plate for label presenter (item no. 00141310-xx)
(3) Label presenter
3.8.4.2 Feeder module adapter with linear vibratory feeder
3
3
PLEASE NOTE
Use of adapter plate
An adapter plate is supplied as standard with the adapter for feeder modules:
The adapter plate should be used for component heights up to 16.5 mm.
Component heights between 16.5 mm and 25 mm are processed without an adapter
plate.
Instruction manual SIPLACE X-Series 3 Technical data and assemblies
From software version 713.0 Edition 11/2019 3.8 SIPLACE tape feeder modules for SIPLACE X-Series S
161
3
Fig. 3.8 - 6 Feeder module adapter for the X-Series S with linear vibratory feeder
(1) Adapter for feeder modules (item no. 00141305-xx)
(2) Adapter plate 16.5 mm (in the deliverables)
(3) Linear vibratory feeder, type 3 (item no. 00142031-xx)
Width 34.4 mm
Tracks per feeder module 1, 2 or 3 3
Occupied feeder module locations 3 3
Stock of components Up to 150 per steel stick magazine, 3
depending on the component length 3
Specific data for stick magazines 9.5 mm wide / x 3 3
15 mm wide / x 2 3
> 15 mm wide / x 1 3
30 mm wide / 1 x 3
Vibrating time: variable setting with SIPLACE Pro from 400 to
over 1000 msec 3
3 Technical data and assemblies Instruction manual SIPLACE X-Series
3.8 SIPLACE tape feeder modules for SIPLACE X-Series S From software version 713.0 Edition 11/2019
162
3.8.4.3 Feeder module adapter with reject conveyor (reject module)
3
Fig. 3.8 - 7 Feeder module adapter with reject conveyor
(1) Adapter for feeder modules (item no. 00141305-xx)
(2) Adapter plate for reject conveyor (item no. 00141308-xx)
(3) Reject conveyor (reject module)
