6.1.4.3 Configuration example: TwinStar for SIPLACE X4 S
One nozzle changer can be installed at each of the following locations for the TwinStar.
Nozzle changer at location 1, 3 and 4: 12 magazines
Nozzle changer at location 2: 10 magazines
This gives a total capacity of 2 nozzle changers with 22 magazines and a total of 44 nozzle ga-
rages.
6

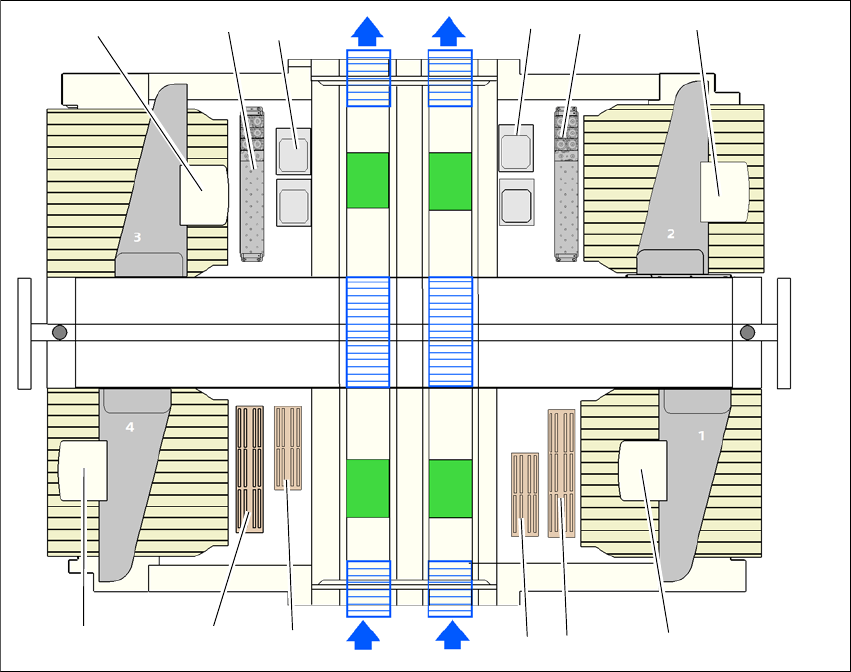

Fig. 6.1 - 15 Position of nozzle changer for the SIPLACE TwinStar machine - configuration example (SIPLACE X4 S)
(1) Nozzle changer for the TwinStar
(2) TwinStar
(3) Stationary cameras
(4) SIPLACE MultiStar CPP
(5) Nozzle changer for SIPLACE Multistar CPP
(6) Nozzle changer row 2 for SIPLACE Multistar CPP (optional)
(4)
(5)
(5)
(4)
(1)
(2) (2)
(3)
(3)
(1)
(6)
(6)
Instruction manual SIPLACE X-Series S 6 Station extensions
From software version 713.0 Edition 11/2019 6.1 Nozzle changer
307
6.1.4.4 Assembly
The nozzle changer is fixed to the COT insert.
6
Fig. 6.1 - 16 Assembly position
(1) Marking hole
(2) Operator side
(3) Arrow pointing toward the PCB conveyor
6
Align the nozzle changer so that the marking hole (item 1) is on the left, as viewed by the op-
erator.
6.1.4.5 Special nozzles
The SIPLACE placement machines process components in accordance with the standard SMT
spectrum.
ASM is continually developing its range of special nozzles.
Special nozzles are available for all placement heads in order to process placement jobs with max-
imum speed, precision and flexibility. The use of automatic nozzle changers also reduces the
setup times that occur at a product change.
For the production of special magazines and grippers, please contact ASM.
(1)
(2)
(3)
6 Station extensions Instruction manual SIPLACE X-Series S
6.1 Nozzle changer From software version 713.0 Edition 11/2019
308
6.1.4.6 Component reject bin for the SIPLACE TwinStar
A component reject bin can be installed for the SIPLACE TwinStar. This is positioned next to the
stationary camera.
6
Fig. 6.1 - 17 Component reject bin for the SIPLACE TwinStar
