6 Station extensions Instruction manual SIPLACE X-Series S 6.4 Matrix tray changer From software versio n 713.0 Edition 11/2019 316 6.4.5 Dimensions of the SIPLACE X2 S / X3 S / X4 S placement machine with MTC 6 Fig. 6.4…
Instruction manual SIPLACE X-Series S 6 Station extensions
From software version 713.0 Edition 11/2019 6.4 Matrix tray changer
315
6.4.4.2 Controls
6
Fig. 6.4 - 2 Matrix tray changer, back view
(1) Main switch
(2) EMERGENCY STOP button
(3) Tower 1 for accommodating max. 30 waffle pack tray carriers (up to 60 JEDEC trays)
(4) Tower 2 for accommodating max. 40 waffle pack tray carriers (up to 40 JEDEC trays)
(5) Attachment point for crank used to adjust the matrix tray changer height
6 Station extensions Instruction manual SIPLACE X-Series S
6.4 Matrix tray changer From software version 713.0 Edition 11/2019
316
6.4.5 Dimensions of the SIPLACE X2 S / X3 S / X4 S placement machine with MTC
6

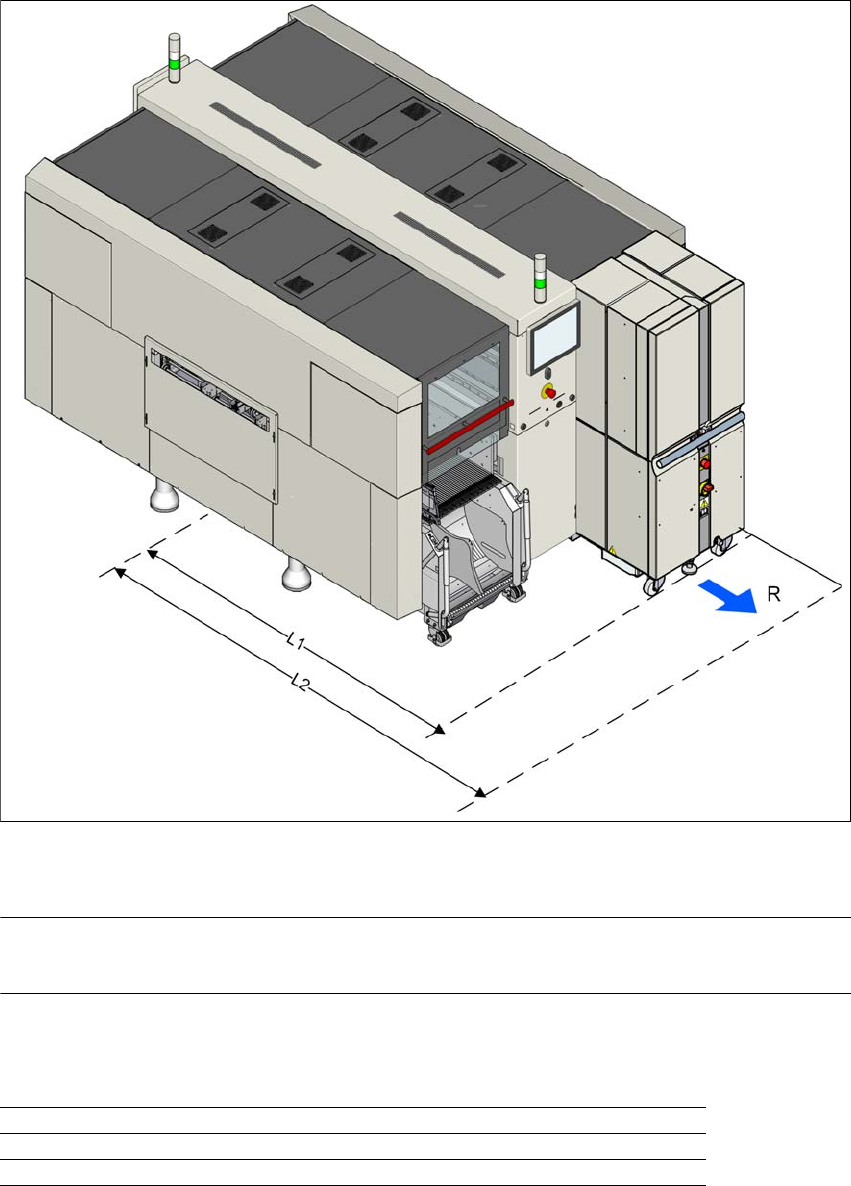

Fig. 6.4 - 3 Dimensions of the SIPLACE X2 S / X3 S / X4 S placement machine with Matrix Tray Changer
in millimeters
PLEASE NOTE 6
A Matrix Tray Changer can be docked at location 2, in place of the component trolley.
The maneuvering distance R of the MTC in SIPLACE X2 S / X3 S / X4 S placement machines is
as follows:
6
Maneuvering distance R location position 2 750 mm
Distance L1: Machine center to outer edge of MTC 1938 mm
Distance L2: Machine center to wall 2688 mm
Instruction manual SIPLACE X-Series S 6 Station extensions
From software version 713.0 Edition 11/2019 6.5 Waffle pack changer (WPC5/WPC6)
317
6.5 Waffle pack changer (WPC5/WPC6)
6.5.1 Description
The waffle pack changer makes components available in the waffle pack trays, to avoid unneces-
sary loss of time during storage and automatic changing of the waffle pack trays. The individual,
programmable access to up to 28 waffle pack trays also increases the range of components avail-
able.
The waffle pack changer has an integral chassis, and is easy to move to other locations. It is sup-
plied with the PCB conveyor height set for the customer-specific placement machine but can be
quickly and easily adapted to conveyor heights of 900, 930, and 950 mm. The fixed component
table must be configured at the remaining location.
