User’s Manual SIPLACE HS-50 3 Introduction and Basic Concepts Software Version S R.501.xx Edition 01/99 3.3 User Interface - Views and M enus 109 6ZL WFKWR0, 6 This menu function cannot be execu ted in the cu rrent s…
3 Introduction and Basic Concepts User’s Manual SIPLACE HS-50
3.3 User Interface - Views and Menus Software Version SR.501.xx Edition 01/99
108
0HQXV
0RGH0HQX
The complete set of functions present in the "Mode" menu is only available in the main view.
In the views "Setup ...", "Errors..." and "Feeders" and their sub-views, only the menu items
"Stop processing PCB" and "Processing PCB" are available. In the other views, the "Mode"
menu is not displayed.
NOTE
For a detailed description of the menu items "Stop processing PCB", "Processing PCB" and
"Continue processing", refer to section 3.2.2.1 since these functions are usually activated via
the corresponding icons in the working area.
3URFHVVLQJ3&%
Assembly of the PCBs is started or continued if previously interrupted.
Å Click the menu item 3URFHVVLQJ3&%(or the corresponding icon).
6WRSSURFHVVLQJ3&%
The current PCB assembly process is stopped.
Å Click the menu item 6WRSSURFHVVLQJ3&%(or the corresponding icon)
$ ERUWSURFHVVLQJ
This function allows you to abort certain operating steps such as feeder position recognition
or nozzle changes in the event of a machine stoppage (fatal error, Stop button pressed)
Å Click the menu item $ERUWSURFHVVLQJ.
The current operation is aborted when you confirm the action in the displayed dialog box.
&RQWLQXHSURFHVVLQJ
The preceding assembly process, interrupted for example because of an error, is continued
once the fault has been eliminated.
Å Click the menu item &RQWLQXHSURFHVVLQJ (or the corresponding icon).
User’s Manual SIPLACE HS-50 3 Introduction and Basic Concepts
Software Version SR.501.xx Edition 01/99 3.3 User Interface - Views and Menus
109
6ZLWFKWR0,6
This menu function cannot be executed in the current software version.
6ZLWFKWR6,3/$&(3UR
This menu function cannot be executed in the current software version.
6ZLWFKWRRSHUDWLQJV\VWHP
You use this menu item to switch to the Windows operating system after entering your
password. From here, you can then subsequently return to the SIPLACE user interface.
NOTE
This menu option is not available at the "Operator" access level.
Å Click the menu item 6ZLWFKWRRSHUDWLQJV\VWHP
The Windows user interface is displayed and the SC software continues to run in the
background.
6KXWGRZQFRPSXWHU
All applications are closed without any files which may have been processed being saved and
the station computer is shut down.
NOTE
This menu option is not available at the "Operator" access level.
Å Click the menu item 6KXWGRZQFRPSXWHU

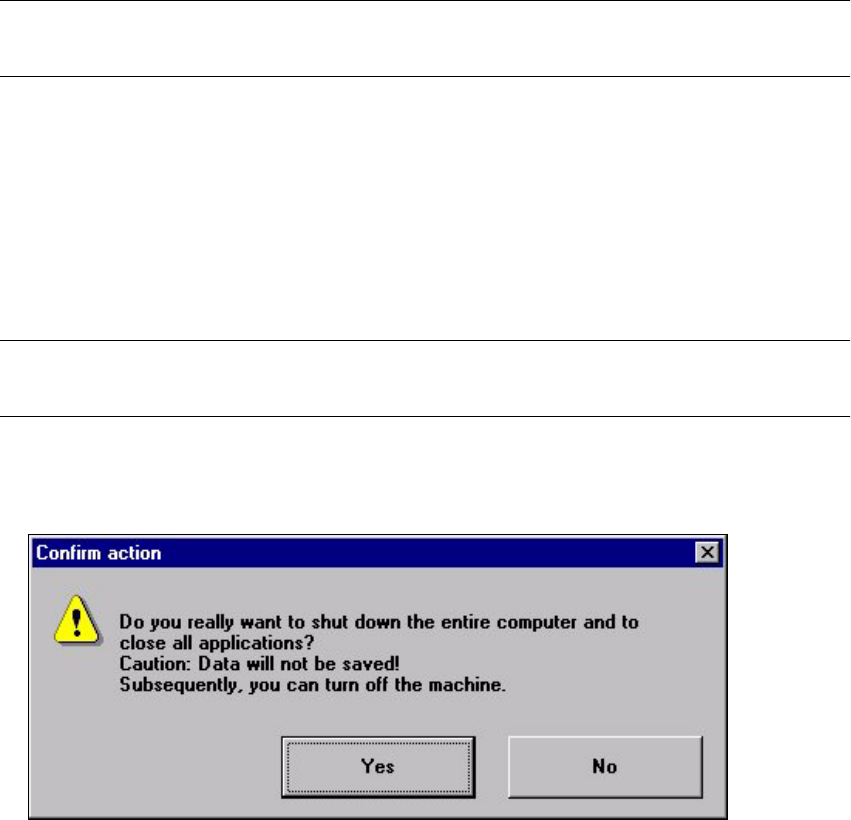

The following dialog box is opened.
Å Click <HV if you want to terminate your work.
The station computer is shut down.
Å Switch off the machine at the main switch.
3 Introduction and Basic Concepts User’s Manual SIPLACE HS-50
3.3 User Interface - Views and Menus Software Version SR.501.xx Edition 01/99
110
9LHZ0HQX
The "View" menu contains the options for calling the placement functions, single functions and
vision functions. It is also used to start the SITEST test program and call the view for running
the GEM functions.
Å Click the required menu option.
The screen display is switched to the corresponding view in which you can then call the
necessary functions.
NOTE
All the options in this menu can also be called by clicking the corresponding toolbar button
(see section 3.2.2.2) or by pressing the corresponding function key. If shortcuts have been
defined, these can also be used.
NOTE
The 3 menu options below belong to the group of placement functions.
6HWXS )
The setup for a feeder location is displayed in tabular form. It can be called separately for each
of the four locations.
The procedure is described in more detail in Chapter 4 "Placement Functions".
(UURUV )
Errors are differentiated by type and each error type is presented in a separate table. You can
call separate tables for track errors, conveyor errors, machine errors and general errors.
The last error to have occurred is always displayed at the top of the table. Identical errors are
cumulated in the error counter ("#E" column).
The procedure is described in more detail in Chapter 4 "Placement Functions".
)HHGHUV )
Here you can use a variety of functions to display and fill empty tracks for linear feeders or to
display and modify inventory levels for trays and wafflepack changers.
The procedure is described in more detail in Chapter 4 "Placement Functions".
