3 Installation
3.8 Running and Connecting the Cable
100 Assembly Instructions / Montageanleitung SIPLACE TX-Series, X-Series S, SX1/SX2 V2
Option PCB Barcode / LP-Barcode (Lector 620) 05/2019

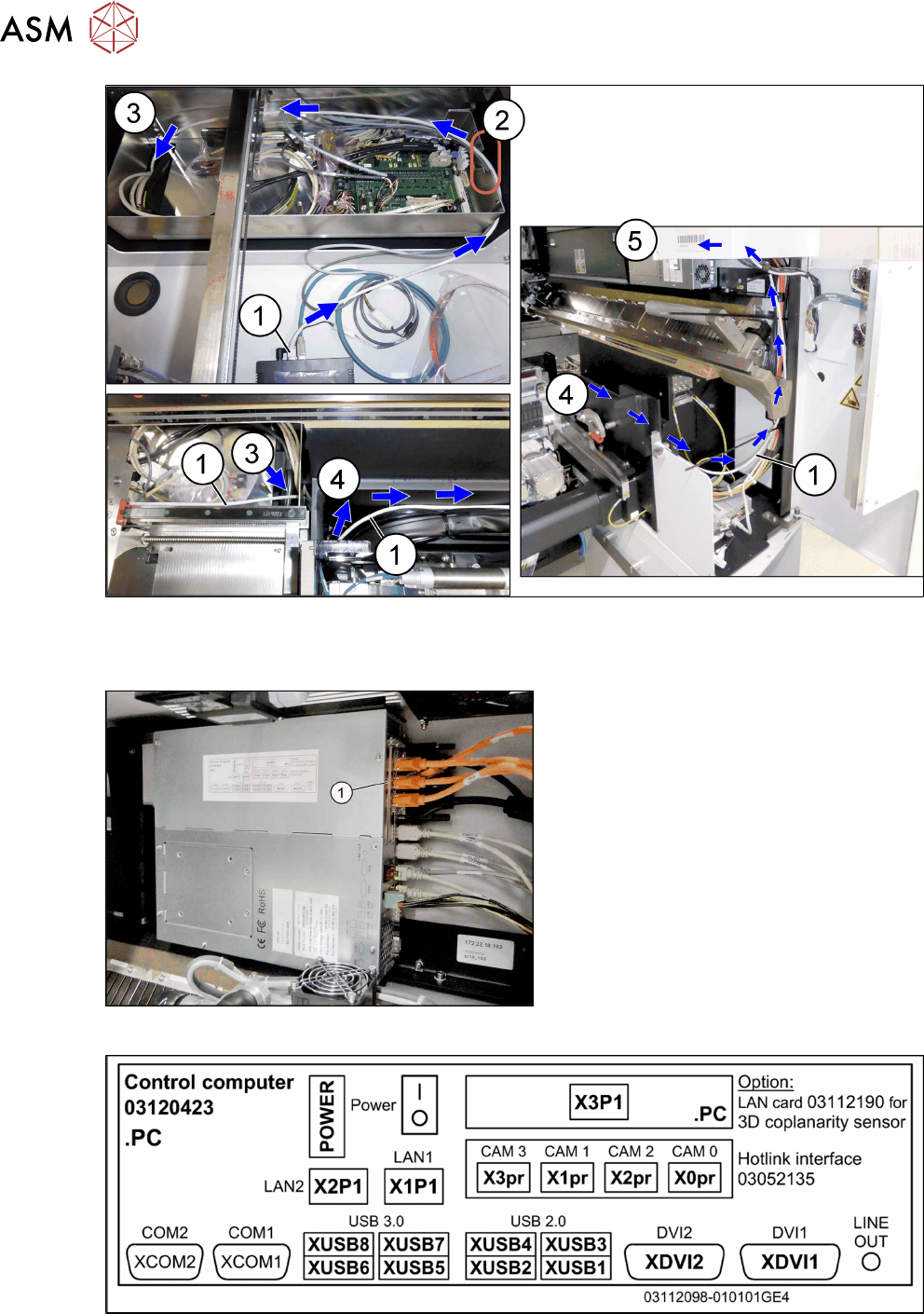

Fig.47: LAN cable routing
► Run the LAN cable(1) from the switch through the recess(2) at the conveyor control, through
the pedestal(3), and through the cable duct(4) to the BoxPC(5).
Fig.48: BoxPC ABP402-A
► Connect the LAN cable to the new LAN
card in the BoxPC(1) (see also 3.7 "In-
stalling the LAN card in the
BoxPC" [}97]).
Fig.49: Connections BoxPC ABP402-A CPU1020E 2xPCI SSD (iBase) [03120423-xx] (from Nxxxx onwards)
3 Installation
3.8 Running and Connecting the Cable
Assembly Instructions / Montageanleitung SIPLACE TX-Series, X-Series S, SX1/SX2 V2
Option PCB Barcode / LP-Barcode (Lector 620) 05/2019
101
3.8.2 SIPLACE X-Series S: Running and connecting cables
The connectors for the PCB barcode readers are located on the conveyor control units.
The conveyor control units are located under the lifting table plate of placement area1.
Removing the lifting table plate
The connectors for the PCB barcode readers are located under the lifting table plate.
► Remove the lifting table plate in placement area 1, using the following procedure. (Remove
both lifting table plates for dual conveyors.)
WARNING
Heavy machine part
Take care when lifting out the plate.
► Wear safety shoes.

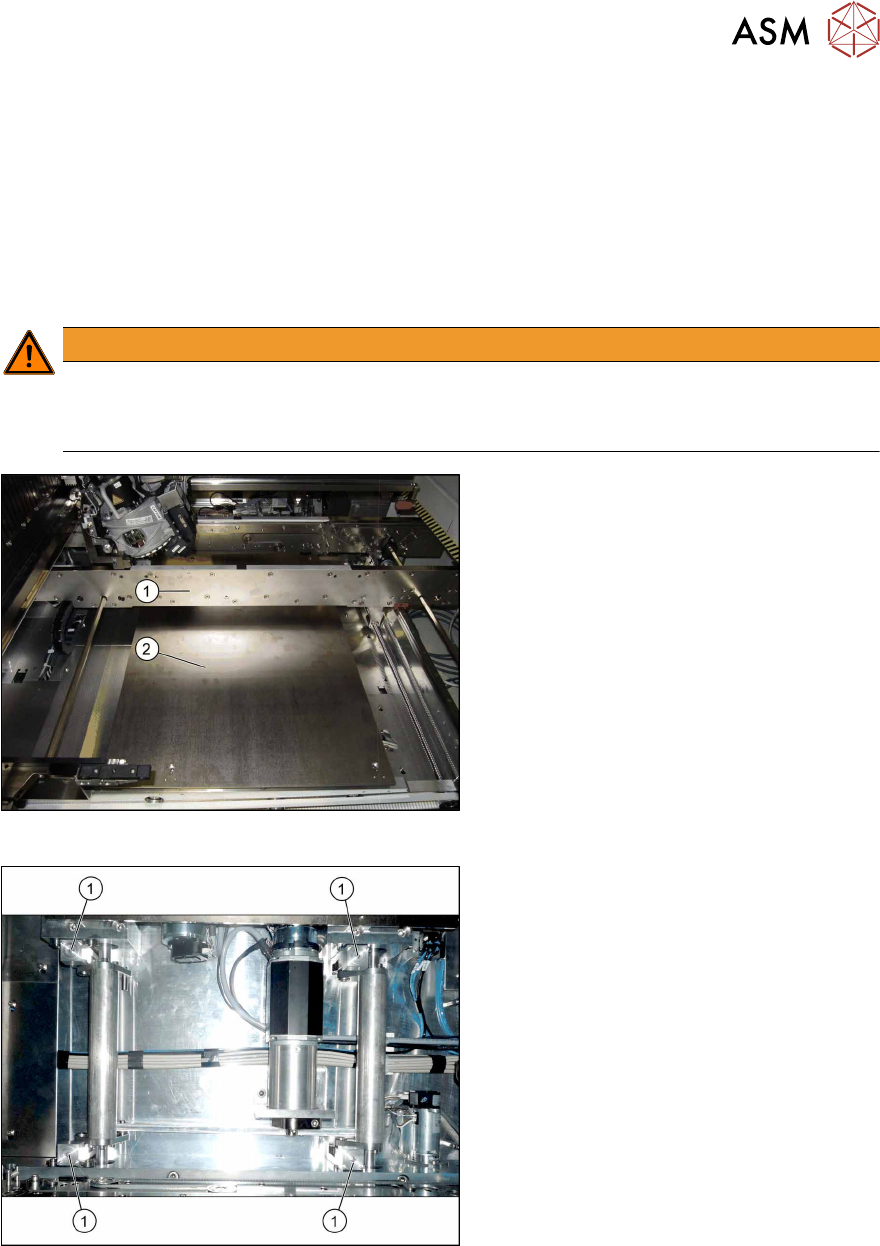

Fig.50: Dismantling the lifting table plate
► Move the conveyor sides(1) into a
position which allows you best access
for work.
► Loosen the screws (M6x30) fastening
the lifting table plate (2) and remove
the lifting table plate from the machine.
The lifting table plate is pinned to the
table plate guides but can be easily
pulled off.
Fig.51: Lifting table plate guides
► Mark the positions of the lifting table
plate guides (1) to make it easier to refit
them later on. Make sure you do not
confuse them. If you do, you will need
to reset the parallelism of the lifting
table plates after installation (see ser-
vice manual).
3 Installation
3.8 Running and Connecting the Cable
102 Assembly Instructions / Montageanleitung SIPLACE TX-Series, X-Series S, SX1/SX2 V2
Option PCB Barcode / LP-Barcode (Lector 620) 05/2019
Removing the covers

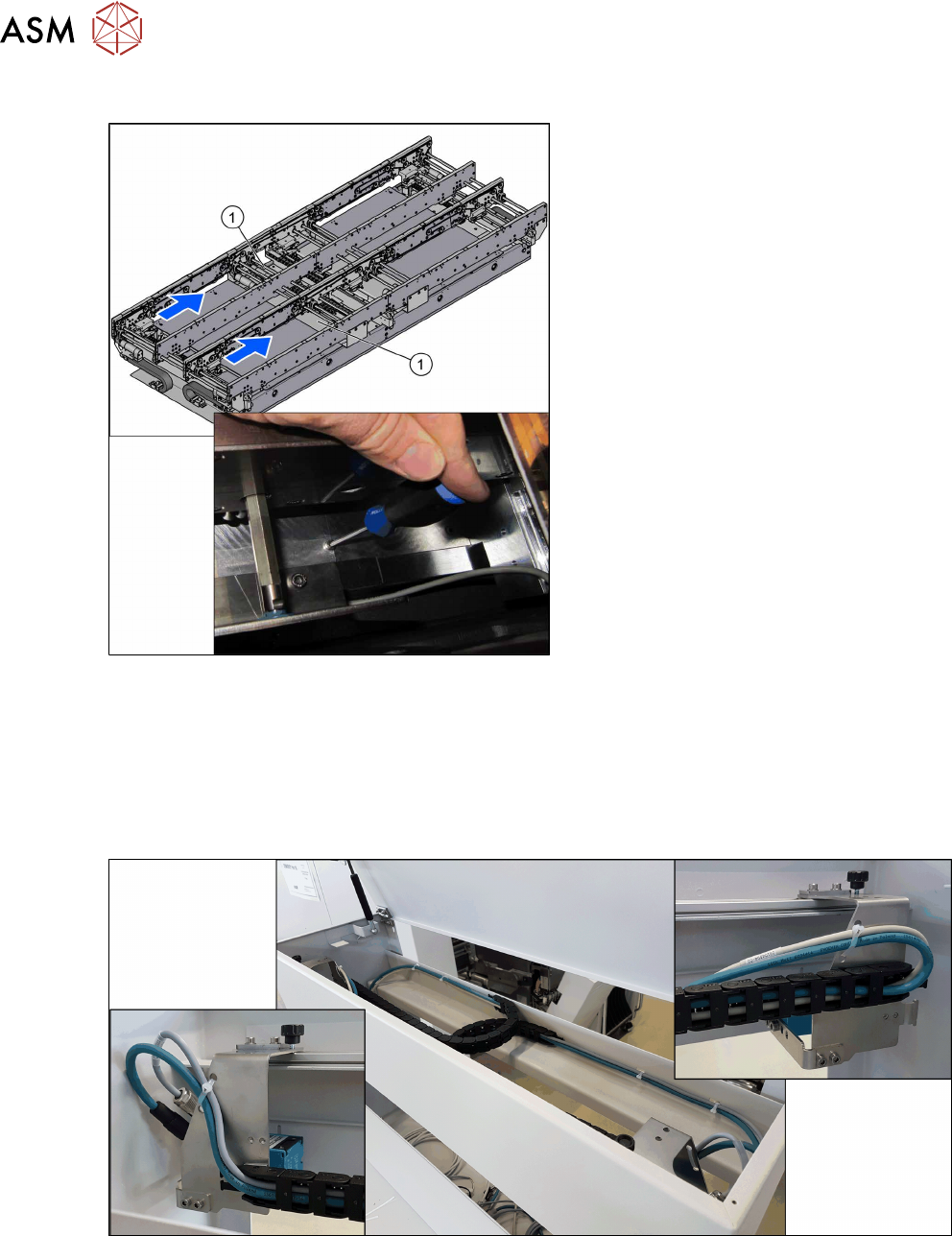

Fig.52: Removing the covers
► Loosen the screws of the covers(1) on
top of the conveyor control units in the
input area and remove the covers.
Cable routing
Assembly kits:
●
Electric mounting 2D PCB Barcode X-Series S SC [03104886-xx]
●
A dual conveyor requires "Electric mounting 2D Barcode X-Series S DC[00166666‑xx]" in ad-
dition
Fig.53: Overview of cable routing
