With the PCB barcode scanner, the barcode can be scanned (recorded and decoded) on the top
side or bottom side of a PCB.
2.1 Product Description
The PCB barcode readers are fitted into a mounting frame (input conveyor extension) on the inside
of the input conveyor cover panel.

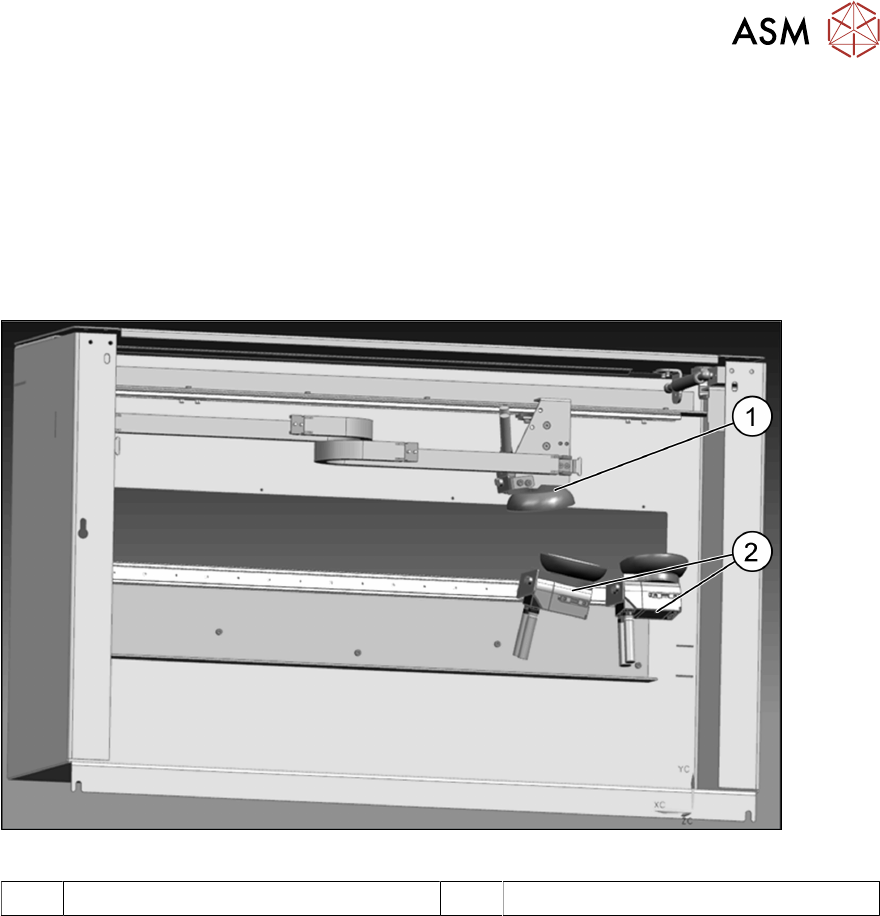

Fig.9: Input conveyor extension inside
1 PCB barcode reader top 2 PCB barcode reader bottom
It may be used on a single or dual conveyor.
Depending on your machine, you can configure one to four PCB barcode readers.
Up to two PCB barcode readers can be retrofitted onto single conveyors. One of these can scan
the top and one the bottom of the boards.
Up to four PCB barcode readers can be retrofitted to dual conveyors. One of these can scan the
top and one the bottom of the boards at each conveyor lane.
During assembly, the PCB barcode readers are fitted onto profiled rails, which are then installed
above and below the PCB input conveyor.
Up to two PCB barcode readers can be fixed to a profile rail and can then be aligned on this rail to
read the individual barcode labels.
2.2 Prerequisites
The input conveyor extension is required to install the "PCB barcode scanner" option. Refer to the
appropriate assembly instructions:
●
Assembly Instructions "SIPLACE SX1/SX2 V2, Input and Output Conveyor Extension incl.
Hand Guard Belt Extension" [DE+EN:00198356‑xx]
●
Assembly Instructions "SIPLACE X-Series S, Input and Output Conveyor Extension incl. Hand
Guard Belt Extension" [DE+EN:00197089‑xx]
●
Assembly Instructions "SIPLACE TX-Series, Input and Output Conveyor Extension incl. Hand
Guard Belt Extension" [DE+EN:00198141‑xx]
2 Brief Description
2.3 Restrictions
84 Assembly Instructions / Montageanleitung SIPLACE TX-Series, X-Series S, SX1/SX2 V2
Option PCB Barcode / LP-Barcode (Lector 620) 05/2019
2.3 Restrictions
The following applies to all machine types:
●
The machine cannot remain in the line arrangement during installation of the PCB barcode option.
●
1D and 2D scanners cannot be combined in one and the same machine.
The following points apply to SIPLACE X-Series machines:
●
A combination of bulk feeder and PCB barcode is possible.
●
3D coplanarity is not possible on SIPLACE TX machines.
The following points apply to SIPLACE X-Series S machines:
●
A combination of bulk feeder and PCB barcode is possible.
●
A combination of 3D coplanarity and PCB barcode is not possible.
●
A combination of bulk feeder and 3D coplanarity is not possible.
The following points apply to SIPLACE SX1/SX2 V2 machines with serial number
Nxxxx or higher:
●
A combination of bulk feeder and 3D coplanarity is not possible.
●
The combination of bulk feeder and PCB barcode is only possible to a limited extent:
NOTICE
Restriction
If a bulk feeder is already installed, it uses the LAN2 port of the station computer.
► In this case, the network cable of the PCB barcode scanner needs to be connected to
the additional LAN card using a different IP address to enable the configuration via the
station computer.
2.4 Scope of Delivery
Depending on the conveyor type and the mounting location of the PCB barcode reader, different
packages are required:
Required packages (number)
Conveyor type Single conveyor Dual conveyor
PCB barcode reader mounting
location
Top Bottom Top and
bottom
Top Bottom Top and
bottom
Sick Lector 620 2D PCB barcode
reader [00519882Sxx]
1 1 2 2 2 4
Assembly kit 2D barcode top X-
Series S [00519996-xx]
1 --- 1 1 --- 1
Assembly kit 2D barcode bottom X-
Series S [00519998-xx]
--- 1 1 --- 1 1
Electric mounting 2D Barcode X-
SeriesS [00166665‑Sxx]
1 1 1 1 1 1
Electric mounting 2D Barcode X-
SeriesS DC [00166666‑Sxx]
--- --- --- 1 1 1
NOTICE
Packages for all machines
The following packages apply to all machines described in this manual:
► SIPLACE SX1/SX2 from serial no. Nxxxx
► SIPLACE X-Series S
► SIPLACE TX-Series
