5 Appendix
5.1 Circuit Diagrams
118 Assembly Instructions / Montageanleitung SIPLACE TX-Series, X-Series S, SX1/SX2 V2
Option PCB Barcode / LP-Barcode (Lector 620) 05/2019
From serial no. Hxxxx:

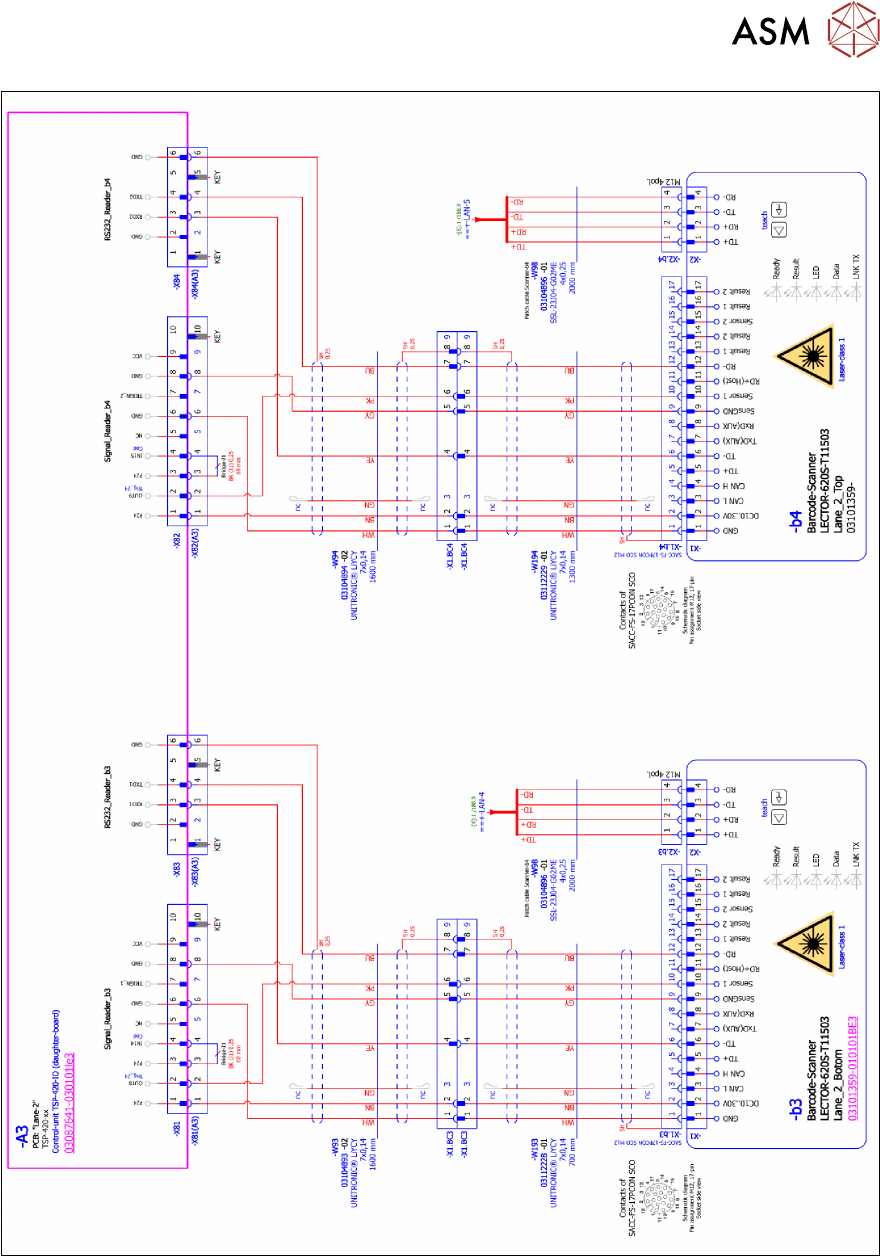

Fig.77: Lector 620 on SIPLACE X-Series S from serial no. Hxxxx - 1
5 Appendix
5.1 Circuit Diagrams
Assembly Instructions / Montageanleitung SIPLACE TX-Series, X-Series S, SX1/SX2 V2
Option PCB Barcode / LP-Barcode (Lector 620) 05/2019
119

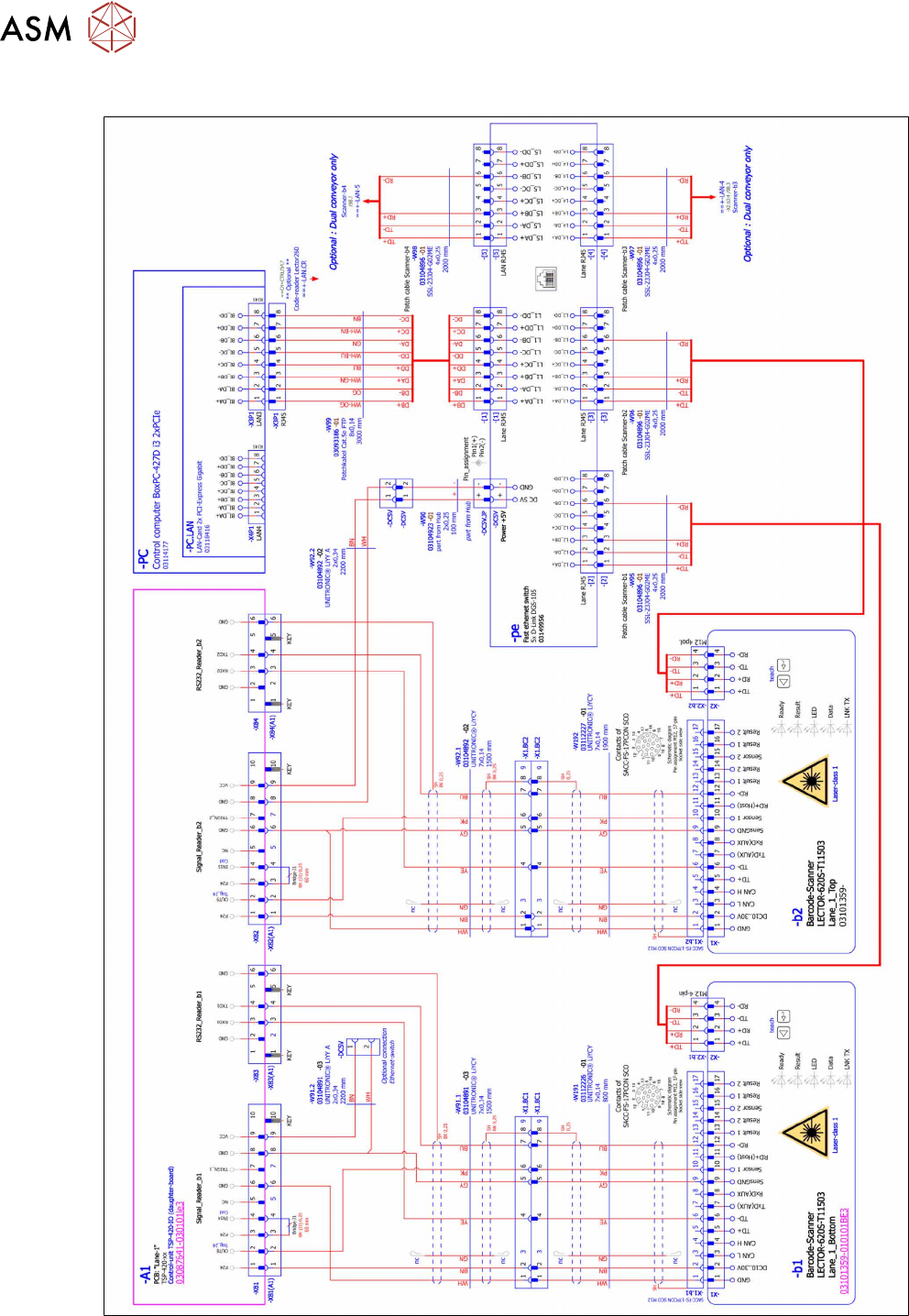

Fig.78: Lector 620 on SIPLACE X-Series S from serial no. Hxxxx - 2
5 Appendix
5.1 Circuit Diagrams
120 Assembly Instructions / Montageanleitung SIPLACE TX-Series, X-Series S, SX1/SX2 V2
Option PCB Barcode / LP-Barcode (Lector 620) 05/2019
5.1.3 SIPLACE TX-Series Circuit Diagrams
Fig.79: Lector 620 at SIPLACE TX-Series - 1
