2 Brief Description
2.4 Scope of Delivery
Assembly Instructions / Montageanleitung SIPLACE TX-Series, X-Series S, SX1/SX2 V2
Option PCB Barcode / LP-Barcode (Lector 620) 05/2019
85
Sick Lector 620 2D PCB barcode reader [00519882Sxx]
This package contains one PCB barcode reader. Depending on the configuration, one to four PCB
barcode reader need to be ordered.
Quantity Designation Item no.
1 PCB barcode reader Lector 620 ICR620S-T11503 03101359-xx
Assembly kit 2D PCB barcode top X-Series S [00519996-xx]
This package contains the parts for the mechanical installation of the PCB barcode reader at the
top.
Quantity Designation Item no.
1 Tape measure L730/B13 self-adhesive 03089541-xx
8 ISO10642 - M3 x 8-A2-70 03082815-xx
4 ISO4762 - M4 x 6-A2-70 03042550-xx
4 ISO4762 - M4 x 8-A2-70 03042551-xx
2 Holding plate 03080710- xx
4 ISO4762 - M5 x 6-A2-70 03082905-xx
2 Extra bracket SX4a Lector 03104248- xx
2 ISO 7380-2 M4x8-A2-70 03099578-xx
1 Warning label hand guard X-Series S (yellow and black warning
strip)
03105426-xx
2 Knurled screw M4 L=23 03006141-xx
2 Retaining bracket assy. 03130721-xx
1 Midget plain bearing L=780 03134459-xx
7 DIN 7984 - M4x6-A2-70 03127570- xx
4 ISO 7092 - 4 - 200 HV - A2 03066810-xx
2 E-Chain series 07 B16 R38 / 28 links 03134446-xx
Assembly kit 2D PCB barcode bottom X-Series S [00519998-xx]
This package contains the parts for the mechanical installation of the PCB barcode reader at the
bottom.
Quantity Designation Item no.
2 Retaining bracket Lector X-Series S 03103786- xx
5 ISO4762 - M4 x 6-A2-70 03042550-xx
1 Tape measure L730/B13 self-adhesive 03089541-xx
1 Holding plate barcode reader SX4a 03100298-xx
4 ISO4762 - M5 x 6-A2-70 03082905-xx
4 ISO4762 - M4 x 8-A2-70 03042551-xx
2 Knurled screw M4 L=23 03006141-xx
1 Midget plain bearing L=740 03134460-xx
12 DIN 7984 - M4x6-A2-70 03127570- xx
2 Holding plate with pointer 03135375-xx
4 ISO 7092 - 4 - 200 HV - A2 03066810- xx
2 Brief Description
2.4 Scope of Delivery
86 Assembly Instructions / Montageanleitung SIPLACE TX-Series, X-Series S, SX1/SX2 V2
Option PCB Barcode / LP-Barcode (Lector 620) 05/2019
Electric mounting 2D PCB Barcode X-Series S – First lane [00166665‑Sxx]
This package contains the parts for the electrical installation for one lane (top and bottom). For a
dual conveyor, you also need to order the package [00166666Sxx].
Quantity Designation Item no.
1 5-port Ethernet switch with modified cable 03152110-xx
1 Patch cable RJ45 CAT.5e, FTP L = 3m 03093186- xx
1 Cable PCB barcode reader Lector-620 lane 1 bottom 03104891-xx
1 Cable PCB barcode reader Lector-620 lane 1 top 03104892-xx
2 Cable with connector 2m SSL-2J04-G02ME 03104896-xx
2 Klettostar loop 20x60 mm (fastener) 03054625-xx
2 Klettostar hook 20x60 mm (fastener) 03054626-xx
5 Self-adhesive mounting socket MB3A 19x19 mm 00316830-xx
10 Cable ties W = 4.8.mm L = 360.mm TYB-28M 00805143-xx
1 LAN card PCI-Express 2x Gigabit LAN 03118416-xx
1 LAN card PCI Gigabit SEMPRE NC1000-1 03112190-xx
1 Cable: Extension PCB barcode reader lane 1 bottom 03112226-xx
1 Cable: Extension PCB barcode reader lane 1 top 03112227-xx
1 Assembly kit flap PCB barcode X-Series S
This kit contains:
03100529-xx
1 Lock with double bit/latch t=38 03002448- xx
1 ISO 4032 - M5-A2-70 03008168-xx
1 Holder for gas pressure shock absorber 03101367-xx
1 Gas pressure shock absorber 6-15 03106777-xx
2 ISO 7380-2 M5x8-A2-70 03099584-xx
1 Holder trailing cable PCB barcode reader complete X-S 03100338- xx
Electric mounting of 2D PCB Barcode X-Series S – Second lane for dual conveyor
[00166666‑Sxx]
This package contains the parts for the electrical installation for a second lane (top and bottom),
and needs to be ordered in addition to [00166665-Sxx] for a dual conveyor.
Quantity Designation Item no.
1 Cable PCB barcode reader Lector-620 lane 2 bottom 03104893-xx
1 Cable PCB barcode reader Lector-620 lane 2 top 03104894-xx
2 Cable with connector 2m SSL-2J04-G02ME 03104896-xx
1 Cable: Extension PCB barcode reader lane 2 bottom 03112228-xx
1 Cable: Extension PCB barcode reader lane 2 top 03112229- xx
2 Brief Description
2.4 Scope of Delivery
Assembly Instructions / Montageanleitung SIPLACE TX-Series, X-Series S, SX1/SX2 V2
Option PCB Barcode / LP-Barcode (Lector 620) 05/2019
87

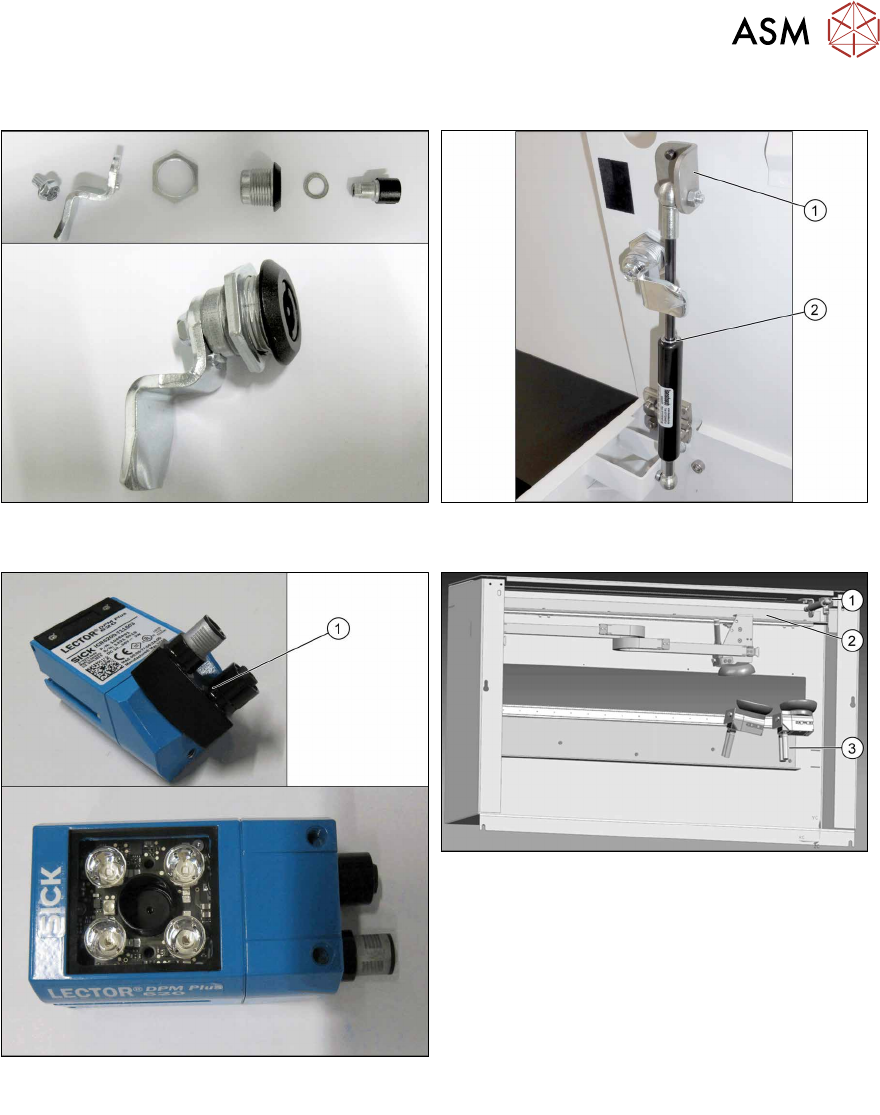

2.4.1 Overview of Parts
Fig.10: Lock with double bit/latch t=38
Fig.11: Gas pressure shock absorber(2) with retaining
bracket(1)
Fig.12: Sick Lector 620 2D PCB barcode readerwith
flexible connectors (1)
Fig.13: Assembly kits
1. Gas pressure shock absorber
2. Assembly kit 2D PCB barcode top
SIPLACE X-Series S
3. Assembly kit 2D PCB barcode bottom
SIPLACE X-Series S
