3 Installation 3.2 Installing the Lock and Gas Pressure Shock Absorber on the Hand Guard Assembly Instructions / Montageanleitung SIPLACE TX-Series, X-Series S, SX1/SX2 V2 Option PCB Barcode / LP-Barcode (Lector 620) 05/…

3 Installation

3.2 Installing the Lock and Gas Pressure Shock Absorber on the Hand Guard

90 Assembly Instructions / Montageanleitung SIPLACE TX-Series, X-Series S, SX1/SX2 V2

Option PCB Barcode / LP-Barcode (Lector 620) 05/2019

3.2 Installing the Lock and Gas Pressure Shock Absorber on

the Hand Guard

In order to use the PCB barcode reader, the input conveyor cover must be converted to a flap.

Fig.15: Removing the top cover

► Remove both screws(1) that fasten the

top cover on the hand guard belt exten-

sion.

Fig.16: Padlock

► Insert the lock (1). Observe the orienta-

tion of the lock. The lock must be fitted

in such a manner that it can lock the

flap.

 NOTICE!

Loss of parts:

Keep an eye on the spring in the

thread. The spring can be easily lost.

Fig.17: Nut on lock

► Fit the nut (1).

3 Installation

3.2 Installing the Lock and Gas Pressure Shock Absorber on the Hand Guard

Assembly Instructions / Montageanleitung SIPLACE TX-Series, X-Series S, SX1/SX2 V2

Option PCB Barcode / LP-Barcode (Lector 620) 05/2019

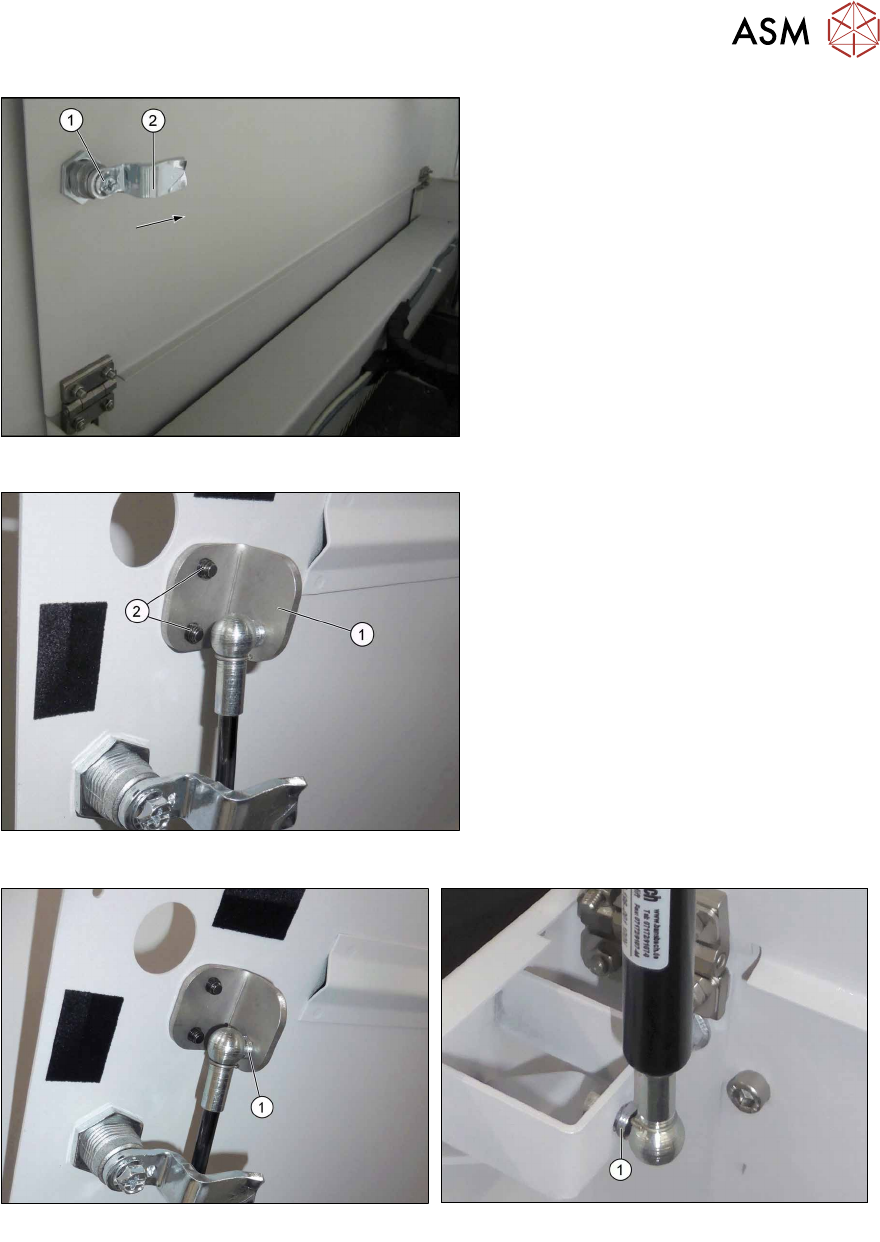

Fig.18: Latch on lock

► Insert the latch (2).

► Insert the screw (1) and tighten it.

► Use Loctite 241 or 243 to secure the

screws.

Fig.19: Retaining bracket

► Fit the retaining bracket for the X-

Series S (1) to the flap on the cover,

using the two M5x16 screws (2).

Fig.20: Top ball head

Fig.21: Bottom ball head

► Fit both ball heads°(1) at the top and at the bottom respectively.

3 Installation

3.3 Mounting the 2D PCB Barcode Scanner at the Top

92 Assembly Instructions / Montageanleitung SIPLACE TX-Series, X-Series S, SX1/SX2 V2

Option PCB Barcode / LP-Barcode (Lector 620) 05/2019

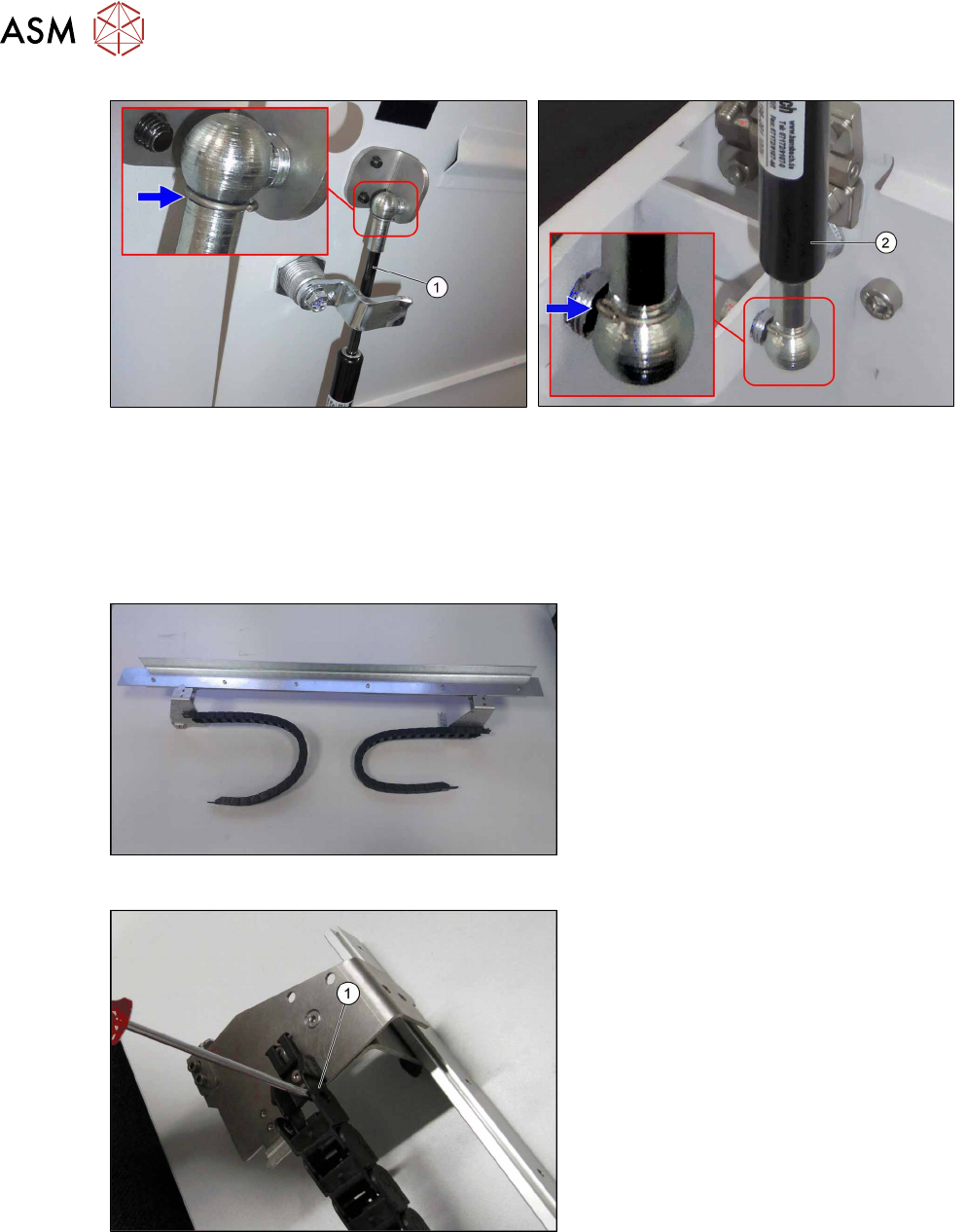

Fig.22: Top gas pressure shock absorber

Fig.23: Bottom gas pressure shock absorber

► Insert the top gas pressure shock absorber (1) at the top and secure it with a safety split pin.

► Insert the top gas pressure shock absorber (2) at the bottom and secure it with a safety split

pin.

3.3 Mounting the 2D PCB Barcode Scanner at the Top

Fig.24: Assembly kit

Assembly kit 2D PCB barcode top SIPLACE

X-Series S [00519996‑xx]

Fig.25: Disassembling the trailing chain

► Take the trailing chain(1) off the

holder.

► Remove the final link of the trailing

chain at both ends.
