3 Installation 3.8 Running and Connecting the Cable 108 Assembly Instructions / Montageanleitung SIPLACE TX-Series, X-Series S, SX1/SX2 V2 Option PCB Barcode / LP-Barcode (Lector 620) 05/2019 Fig.66: Switch cabling Fig.…
3 Installation
3.8 Running and Connecting the Cable
Assembly Instructions / Montageanleitung SIPLACE TX-Series, X-Series S, SX1/SX2 V2
Option PCB Barcode / LP-Barcode (Lector 620) 05/2019
107
3.8.3 SIPLACE TX-Series: Running and connecting the cable
The connectors for the PCB barcode readers are located on the conveyor control units.
The conveyor control units are located in the input area of the conveyor.
Removing the covers
Fig.65: Removing the covers
► Remove the stay bolts fastening the
covers(1) and remove both covers.
Cable routing
Assembly kits:
●
Electric mounting 2D PCB Barcode X-Series S SC [03104886-xx]
●
Electric mounting 2D Barcode X-SeriesS DC [00166666‑xx]
3 Installation
3.8 Running and Connecting the Cable
108 Assembly Instructions / Montageanleitung SIPLACE TX-Series, X-Series S, SX1/SX2 V2
Option PCB Barcode / LP-Barcode (Lector 620) 05/2019
Fig.66: Switch cabling
Fig.67: Cable routing, on left
Fig.68: Cable routing, at top
NOTICE!
LAN cable
The LAN cable is only mandatory for
the configuration of the PCB barcode
scanner. For the operation and func-
tions of the PCB barcode scanners the
LAN cable is not absolutely necessary.
.
► Connect the LAN cable to the switch (1).
► Connect the power supply cable
(DC5V) [03104923‑xx] to the switch
and to the cable [03104892‑xx].
The cable [03104892‑xx] is among the
cables for the upper PCB barcode
reader.
► Make sure that the cables have enough
play. In contrast to the top PCB bar-
code readers, the cables for the bottom
PCB barcode readers are not run
through a trailing chain.
► Use the Klettostar fastener to fasten
the switch to the bottom of the input
conveyor extension.
► In case of unnecessary cable length,
place the cables at the bottom of the in-
put conveyor extension.
Fig.69: Cable routing, on right
3 Installation
3.8 Running and Connecting the Cable
Assembly Instructions / Montageanleitung SIPLACE TX-Series, X-Series S, SX1/SX2 V2
Option PCB Barcode / LP-Barcode (Lector 620) 05/2019
109

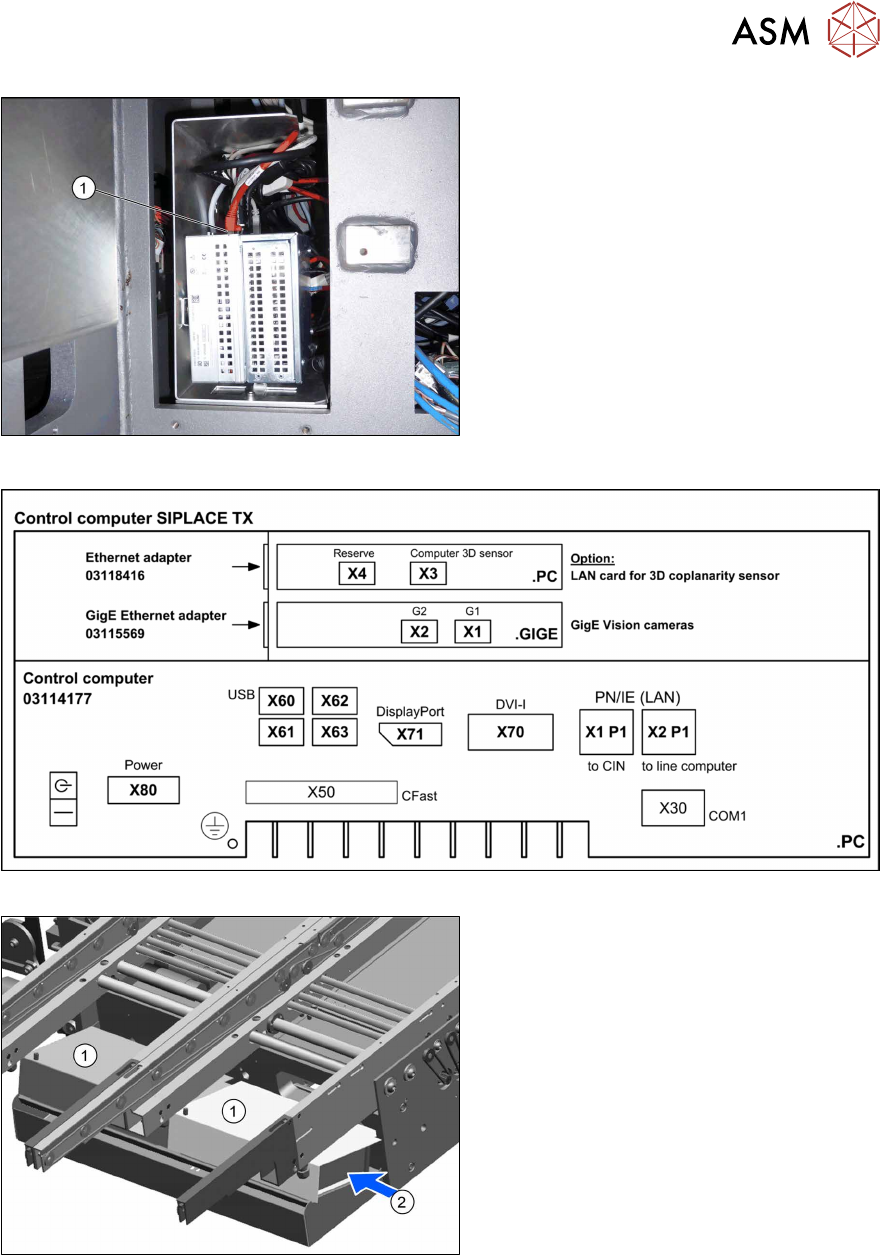

Fig.70: BoxPC-427D
► Run the LAN cable from the switch
through under the conveyor to the
BoxPC(1).
► Connect the LAN cable to the new LAN
card in the BoxPC
(see also 3.7 "Installing the LAN card in
the BoxPC" [}97]).
Fig.71: BoxPC 427D - connections
► Connect the power supply cable to the
conveyor control units(see below).
► Refit the covers(1).
To do so, run the cables sideways(2)
to the conveyor control units.
