6 Options User manual SIPLACE Wafer System (SWS) 6.2 Optional components Edition 04/2018 110 6 Fig. 6.2 - 4 Barcode scanner - example of installation on the magazine lift (1) Barcode scanner 1
User manual SIPLACE Wafer System (SWS) 6 Options
Edition 04/2018 6.2 Optional components
109
6.2.3 Barcode scanner
The barcode scanner on the SWS reads the barcode on the wafer frame. The barcode scanner
can be fitted in two positions:
– On the magazine lift
– On the gripper
6
Fig. 6.2 - 3 Barcode scanner - example of installation on the gripper
(1) Barcode scanner
1
6 Options User manual SIPLACE Wafer System (SWS)
6.2 Optional components Edition 04/2018
110
6

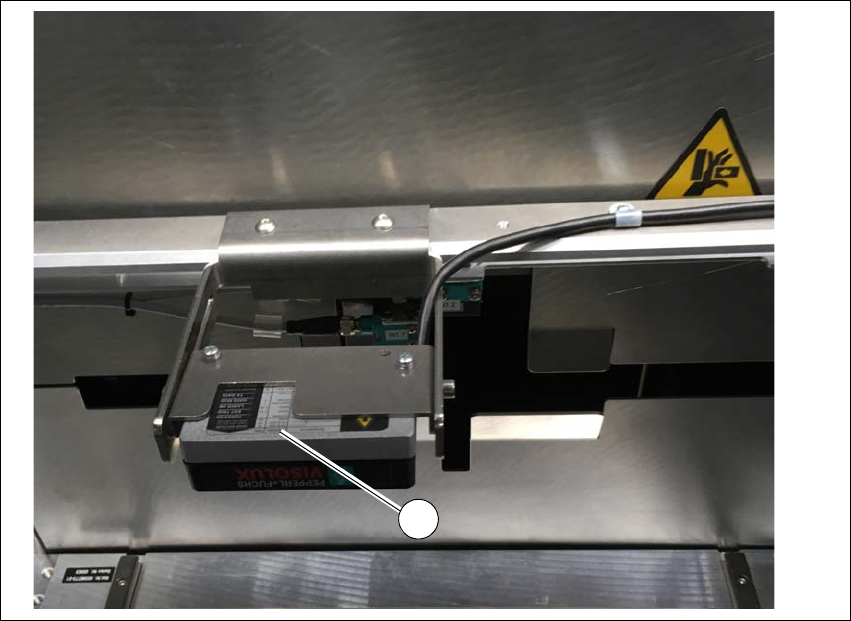

Fig. 6.2 - 4 Barcode scanner - example of installation on the magazine lift
(1) Barcode scanner
1
User manual SIPLACE Wafer System (SWS) 6 Options
Edition 04/2018 6.3 SWS wafer stretcher (expander)
111
6.3 SWS wafer stretcher (expander)
6
The SIPLACE Wafer System (SWS) can be configured with the SWS wafer stretcher (expander)
option for two different wafer supports (8" or 12").
The SIPLACE SWS wafer stretcher (expander) consists of the following main assemblies.
– Stretcher
The stretcher stretches the wafer foil to increase the distances of the dies on it. 6
–Heater
The heater consists of a heating element and a fan. The fan blows heated air on to the wafer
foil. This reduces the sag of the wafer foil (less than 9 mm), so that the wafer can be trans-
ported back into the magazine. 6
PLEASE NOTE
The SWS wafer stretcher (expander) can not be retrofitted in the field.
