1.2.3.3 Die recognition and positioning
The wafers are fixed to the wafer foil with a specific position and angular tolerance.
It is therefore not possible to place the die reliably in the center of the ejector unit without recog-
nition and correction. This is particularly important for small dies, in order to ensure reliable ejec-
tion.
Furthermore, you may need to process only a selection of dies. A selection can be made by mark-
ing with an ink spot and/or by using a wafer map file for the relevant wafer.
The following components are used for this process step:
– 2 axes wafer table for positioning
– Wafer camera system for the die and for optional ink spot recognition
– Barcode scanner for wafer identification (optional)
1.2.3.4 Ejection process
Once the die has been centered using the ejector system, it can be released from the wafer foil
using needles and transferred to the flip unit. Piercing or non-piercing needles are used for this.
While the needles release the die from the foil, the wafer foil is moved towards the ejection system
by means of suction.
The following components are used for this process step:
– Ejector unit
Fig. 1.2 - 4 Ejection process - non-piercing (basic principle)
Ejection needle
Vacuum cap
Ejection system - non-piercing needles
Active component - ready for pickup
Wafer foil
The wafer foil is sucked up by vacuum
at the vacuum cap
1 Introduction User manual SIPLACE Wafer System (SWS)
1.2 Description of functions Edition 04/2018
22

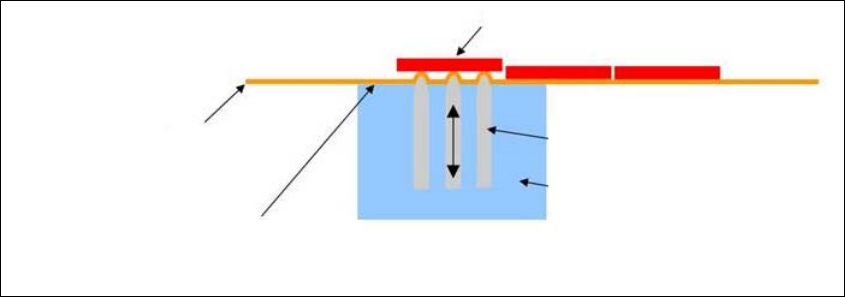

Fig. 1.2 - 5 Ejection process - piercing (basic principle)
1.2.3.5 Pickup process
During the pickup process, the die is transferred to the tool or to the nozzle of the flip unit. The flip
unit transfers the die on it either to the placement head (flip chip process) or to the die attach unit
(die attach process).
The die attach unit rotates the die again and then presents it to the placement head.
The following equipment is required for this step:
Flip unit
Die attach unit (optional)
1
Ejection needle
Vacuum cap
Ejection system - piercing needles
Active component - ready for pickup
Wafer foil
The wafer foil is sucked up by vacuum
at the vacuum cap
User manual SIPLACE Wafer System (SWS) 1 Introduction
Edition 04/2018 1.2 Description of functions
23
1.2.4 Pickup & transfer process in detail (example of die attach process)
1.2.4.1 Flip chip segment 1 (pickup process)
1

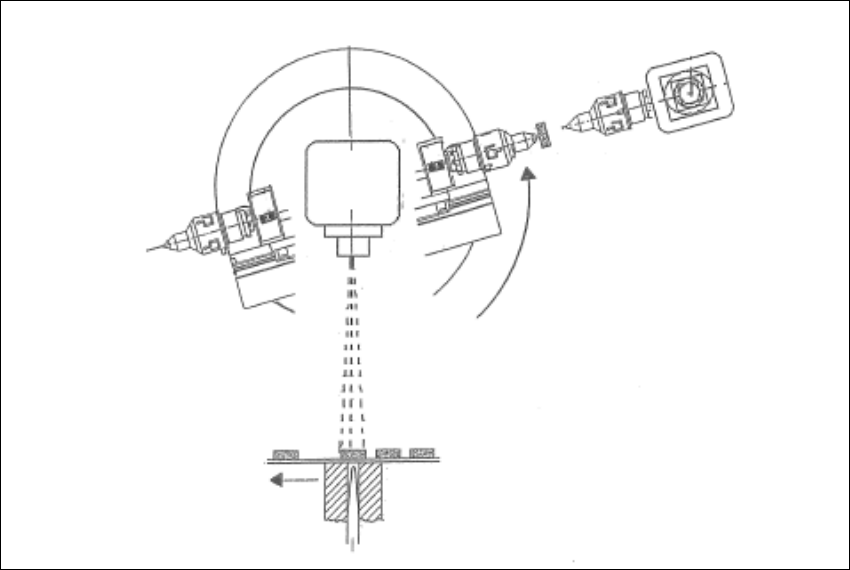

Fig. 1.2 - 6 Flip chip segment 1 - pickup process to transfer position (basic principle)
(1) The wafer X-Y travels to the next chip.
(2) The flip chip rotary unit segment 1 turns to the handover position "Die Attach".
(3) Image recognition of the next chip is performed from the camera "free" position.
Wafer
Camera
(2)
(3)
(1)
