2 Operational safety User manual SIPLACE Wafer System (SWS) 2.2 Warning labels on the SIPLACE Wafer System Edition 04/2018 44 2.2.5 W arning on the flip uni t and the die attach unit 2 Fig. 2.2 - 8 W13 (quantity on the d…
User manual SIPLACE Wafer System (SWS) 2 Operational safety
Edition 04/2018 2.2 Warning labels on the SIPLACE Wafer System
43
2.2.4 Warning on the Linear Dipping Unit (LDU X)
2

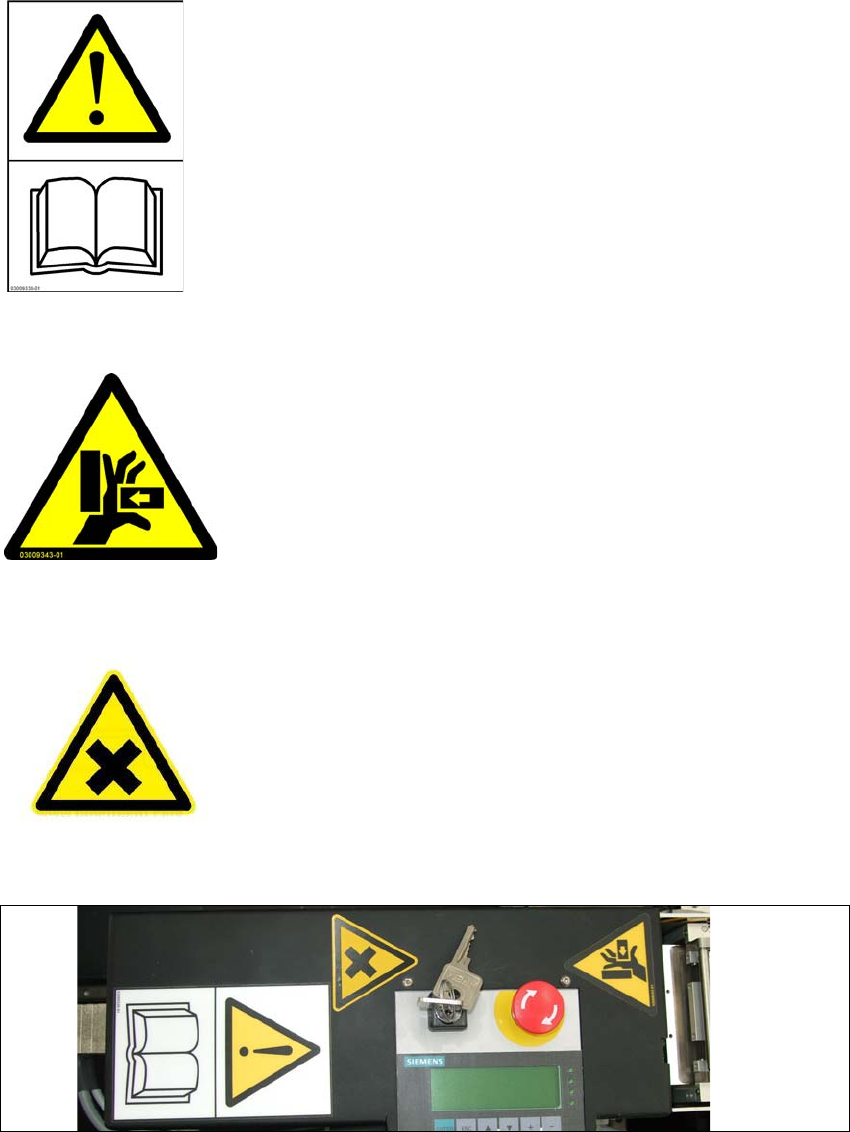

Fig. 2.2 - 4 W201 [03009338-01] (quantity per LDU X: 1)
2
Fig. 2.2 - 5 W204 [03009343-01] (quantity per LDU X: 1)
2
Fig. 2.2 - 6 W18 (quantity per LDU X: 1)
Fig. 2.2 - 7 Warning labels on the LDU X
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
2
SAFE OPERATION OF THE MACHINE
Safe operation of the machine depends absolutely on
the operator being familiar with the user manual and
safety instructions and putting them into effect.
2
2
2
DANGER OF CRUSHING!
Reaching in here can lead to injuries to the arms
and hands.
Do not reach into the machine while it is running
2
2
2
Harmful or irritant materials warning
2 Operational safety User manual SIPLACE Wafer System (SWS)
2.2 Warning labels on the SIPLACE Wafer System Edition 04/2018
44
2.2.5 Warning on the flip unit and the die attach unit
2

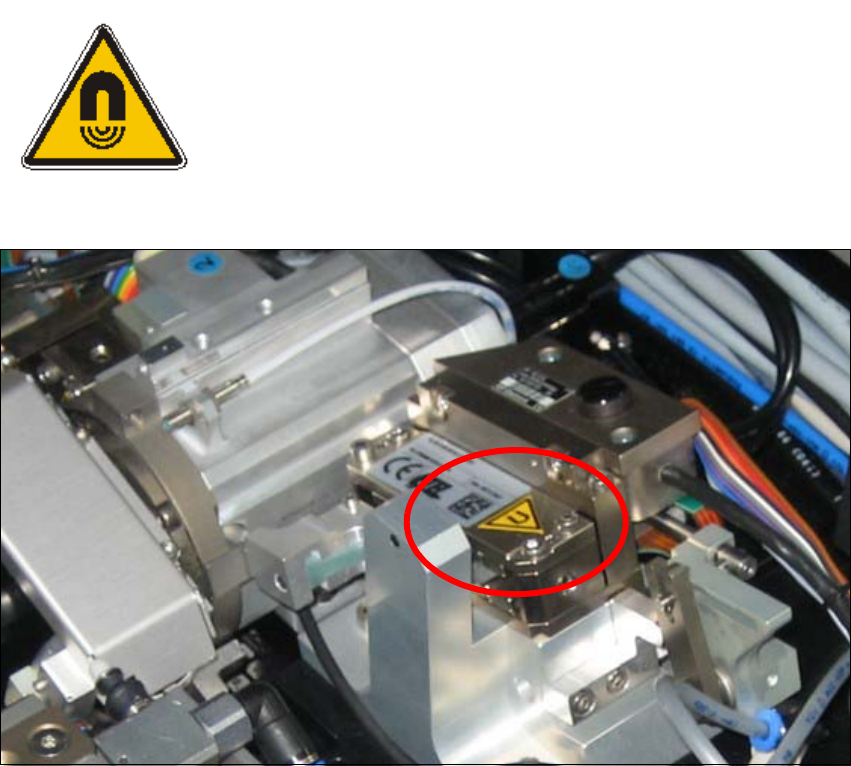

Fig. 2.2 - 8 W13 (quantity on the die attach unit: 1, quantity on the flip unit: 1)
Fig. 2.2 - 9 Warning label on the die attach unit
2
2
2
Warning about magnetic field
User manual SIPLACE Wafer System (SWS) 2 Operational safety
Edition 04/2018 2.3 Safety instructions for transportation
45
2.3 Safety instructions for transportation
2
The SIPLACE Wafer System can be transported using a suitable hand lift with the following spec-
ifications:
Carrying power (min.) 1000 kg
Fork length (min.) 1000 mm
Distance between the forks (min.)300, (max.) 525 mm (outer dimension) 2
2
WARNING
Risk of tilting!
There is a risk of the SIPLACE Wafer System tilting if the required specifications for the
fork-lift truck are not observed.
Only use the specified fork-lift for transportation.
Transportation of the SWS is described in section 4.1
, page 83.
PLEASE NOTE
Hand lift specifications
The necessary width of the fork lift presents a critical measure.
Make sure that the hand lift used fulfills the specified requirements.
