5 Monthly m aintenance jobs SIPLA CE D1 / D2 02/2010 EN E dition 26 5 Monthly maintenance jobs 5
SIPLACE D1 / D2 4 Weekly maintenance jobs
02/2010 EN Edition
25
Empty the component drawer or flap of the 8 mm S feeder 4
: Unplug the 8 mm S feeder and lift it off the changeover table.
4
a Remove loose components from the changeover table with a brush or using the vacuum
cleaner.
4
s Empty the component drawer of the 2x8 mm S feeder (if present).
4
d Open the flap of the 3x8 mm S feeder (if present) and remove the components.
4
f Wipe the base of the feeder to remove any dirt.
4
g Cut off the used tape so that it is flush with the feeder.
4
: Return the feeder modules to their original (correct) locations.
4
Make sure that the feeder is seated firmly on the changeover table and is inserted at the right po-
sition. 4
4
4
4
: Close the protective cover.
: Repeat these tasks in every placement area.
4
4
4
4
5 Monthly maintenance jobs SIPLACE D1 / D2
02/2010 EN Edition
26
5 Monthly maintenance jobs
5
SIPLACE D1 / D2 5 Monthly maintenance jobs
02/2010 EN Edition
27
5
You will need the following tools, equipment and consumables for monthly maintenance: 5
– Laboratory gloves
– Lint-free cloths
– Lens cleaning cloth
– Lint-free cottonwool buds
– SIPLACE cleaning tissue
– Ethyl alcohol
– Set of cleaned sleeves
– Set of cleaned and lightly greased valve plungers
– Y-axis cover air filter for
120mm fan, if required
– Switch for head crash guard, if necessary
5

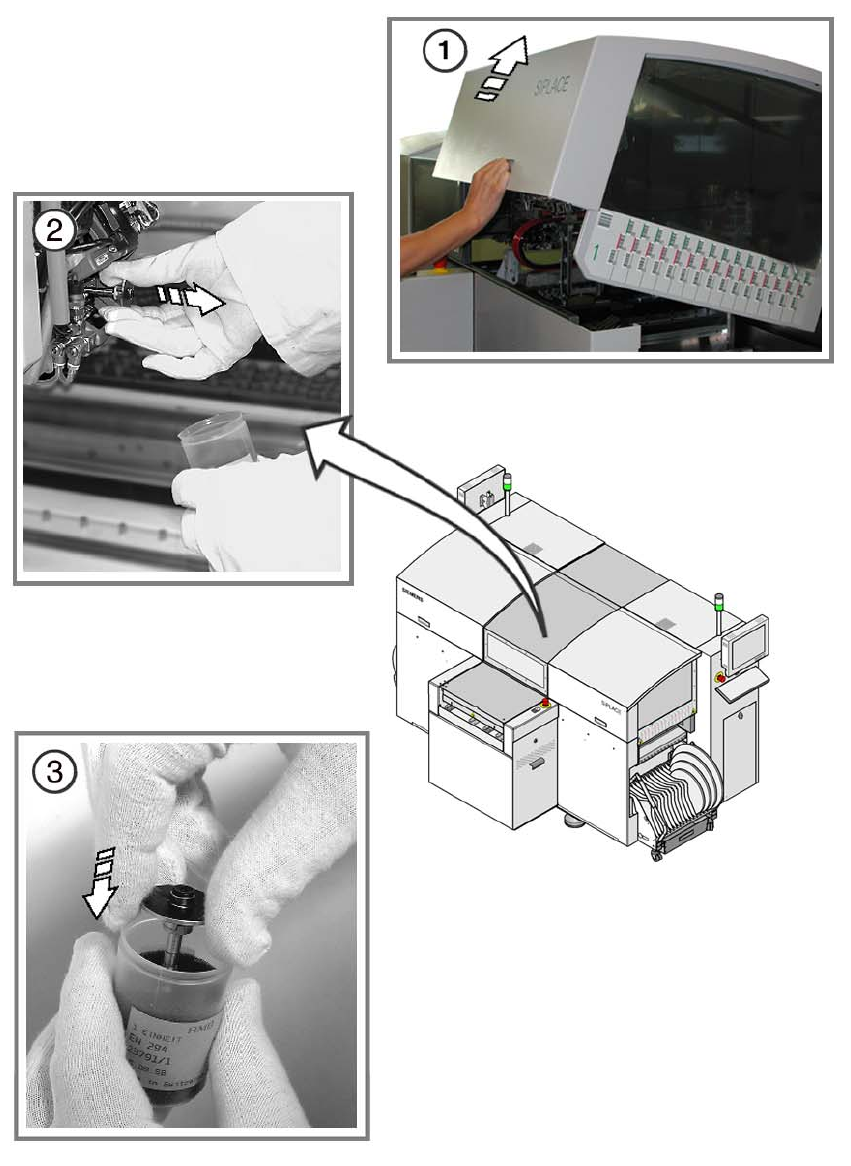

Replace the sleeves and valve plungers 5
: Use the "Single Functions" menu to return the nozzles of the Collect&Place head to the nozzle
changers.
a Open the protective cover.
5
Do not hold the sleeves in your bare hands. Wear laboratory gloves when carrying out any main-
tenance work on the sleeve. 5
5
This will avoid dirtying the glass disk, the friction wheel, and the suction plate unnecessarily, which
could lead to faults (counting errors and overshooting). 5
Do not hold the suction plates to avoid damage. 5
5
s Remove the sleeves from the head.
Pull the sleeves out as shown in the diagram. 5
5
5
d Place them in the container provided.
Use the "Single Functions" menu to advance the star.
5
5
