Inspect or replace the silencer 6

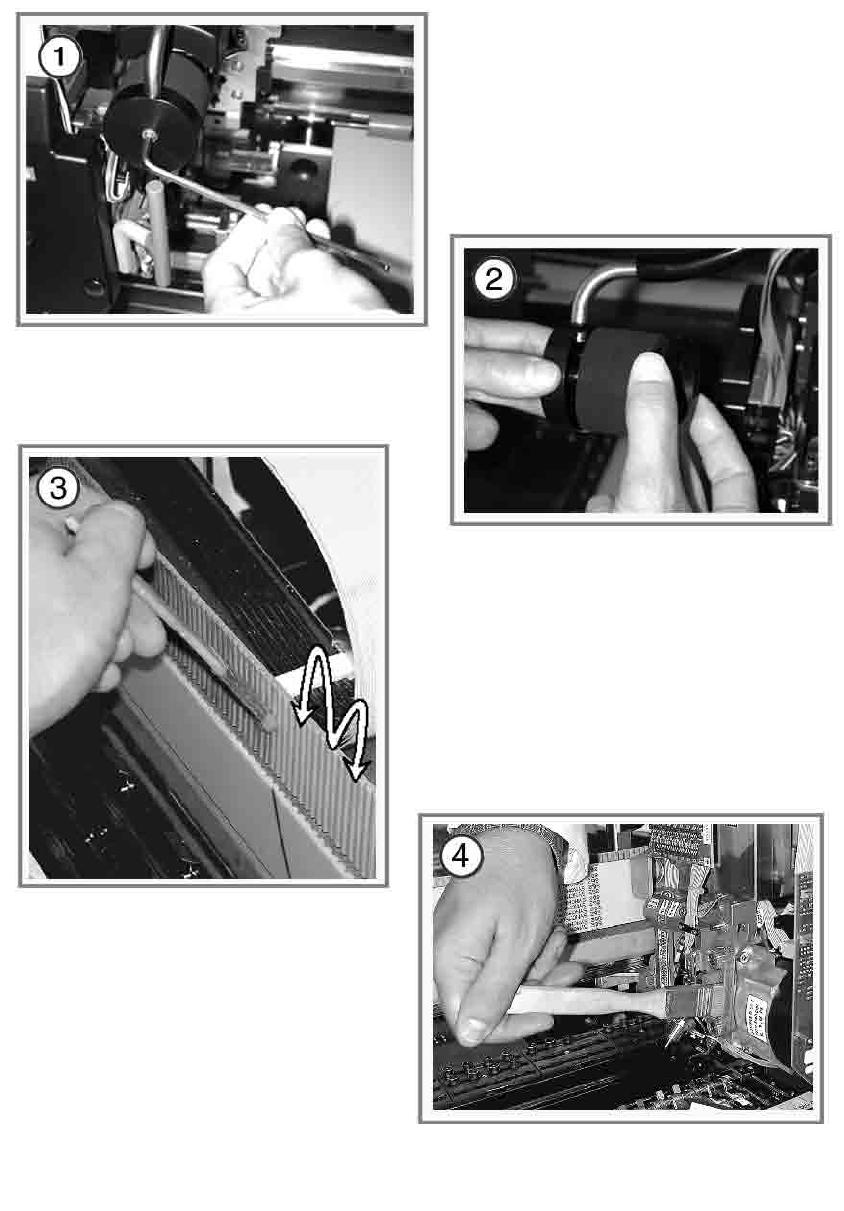

a Check the silencer of the Collect&Place head for dirt.
If it is discolored, detach the retainer by turning it counter-clockwise.
s Replace the dirty filter and reverse the sequence described above to fit.
6
6
Clean and grease the toothed belts for the X and Z axes 6
: Clean the toothed belts of the X and Z axes.
6
d Lightly grease the X axis toothed belt using a short-bristled brush moistened with ISOFLEX
TOPAS NCA 52.
f Lightly grease the Z axis toothed belt using a short-bristled brush moistened with ISOFLEX
TOPAS NCA 52.
: Distribute the grease evenly over the toothed belt by moving the axes back and forth.
: Remove any excess grease.
