SIPLACE D1 / D2 7 4-monthly maintenance jobs
02/2010 EN Edition
49

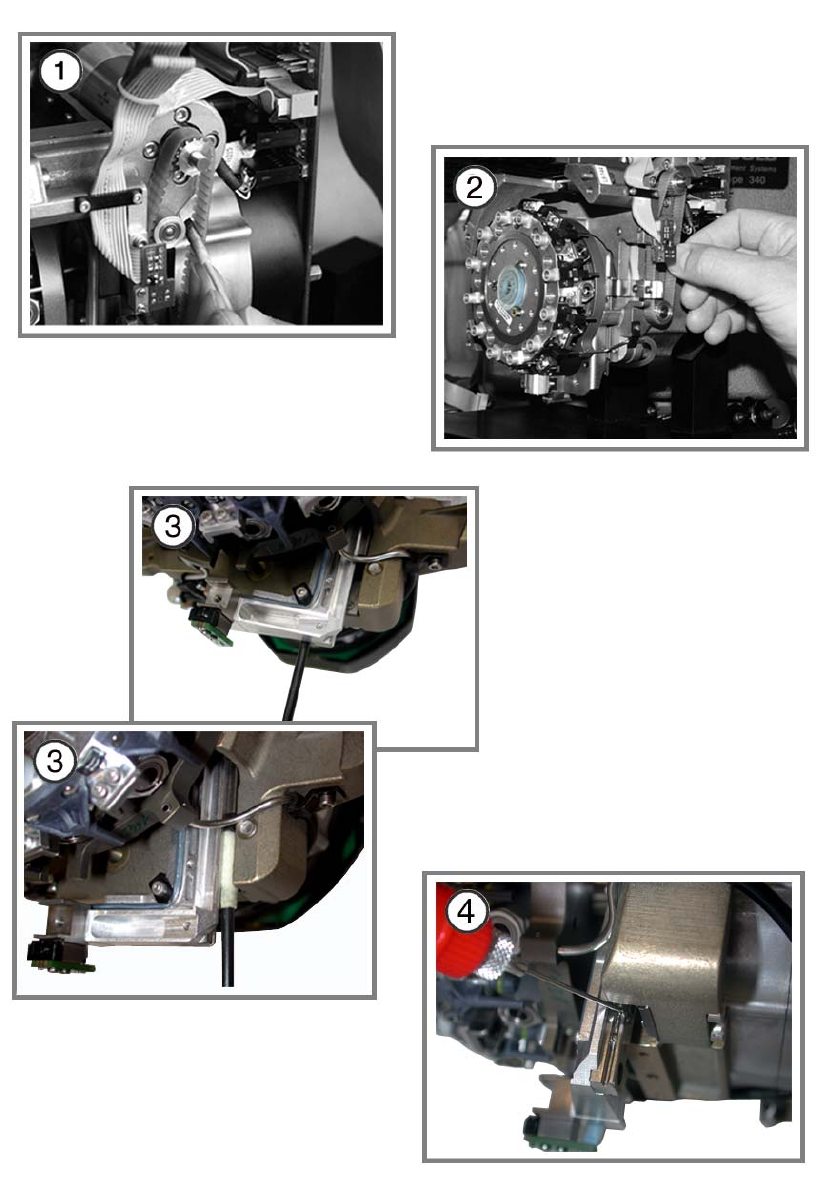

a Use a brush or cottonwool bud to remove dirt from the Z axis toothed belt.
: Clean the rollers, toothed wheels and the toothed belt with a cottonwool bud or lint-free cloth.
: Check the toothed belt for wear.
Replace the toothed belt if it shows signs of wear (see
servicing instructions).
: Lightly grease the toothed belt with ISOFLEX TOPAS NCA 52 and remove any excess grease.
s Check that the Z axis guide runs easily and without play.
: Check the jaws and the ball race for damage.
Contact your regional Service Center if defects are identified in the Z axis, the jaws or the ball
race. 7
7
Oil the recirculating ball guide (lower bearing) 7
: Move the Z axis into its bottom position.
d Clean the grooves in the miniature roller table front and back using cottonwool buds dipped in
ethyl alcohol.
: Wipe the needle of the oil dispenser clean.
Do not force oil out of the oil dispenser. A visible drop would be too much oil. 7
7
7
f Simply place the needle immediately beside the ball cage/bearing on the grooves of the guide
rail. The action will cause sufficient oil to reach the grooves (capillary effect).
: Move the Z axis up and down several times to distribute the film of oil.
