a Remove the valve plungers.
When you pull out the valve plunger, be careful not to touch the small boards. The valve plungers
are conductive and could cause a short-circuit. 5
5
5
s Clean the valve casing using a cottonwool bud moistened with ethyl alcohol.
: Insert the cleaned and very lightly greased valve plungers into the valve casing.
See section ("Maintain the valve plungers").
: Move them back and forward several times.
: If the valve plungers move very easily, replace them with new plungers.
If the valve plungers move too easily, they cannot be guaranteed to work correctly. 5
5
d Clean the segment using a cottonwool bud moistened with ethyl alcohol.
Never use pipe-cleaners or bottle brushes to clean the segment.
This could tear out the sleeve retaining springs or leave lint or hairs in the segment which, in turn,
could cause faults. 5
5
: Insert the cleaned sleeves into the segments.
See section ("Maintain
the sleeves").
Use a very gentle pressure to engage the sleeves to avoid damaging the retaining springs. 5
5
5
: Use the "Single Functions" menu to pick up the nozzles of the Collect&Place head.
5 Monthly maintenance jobs SIPLACE D1 / D2
02/2010 EN Edition
30
5
SIPLACE D1 / D2 5 Monthly maintenance jobs
02/2010 EN Edition
31

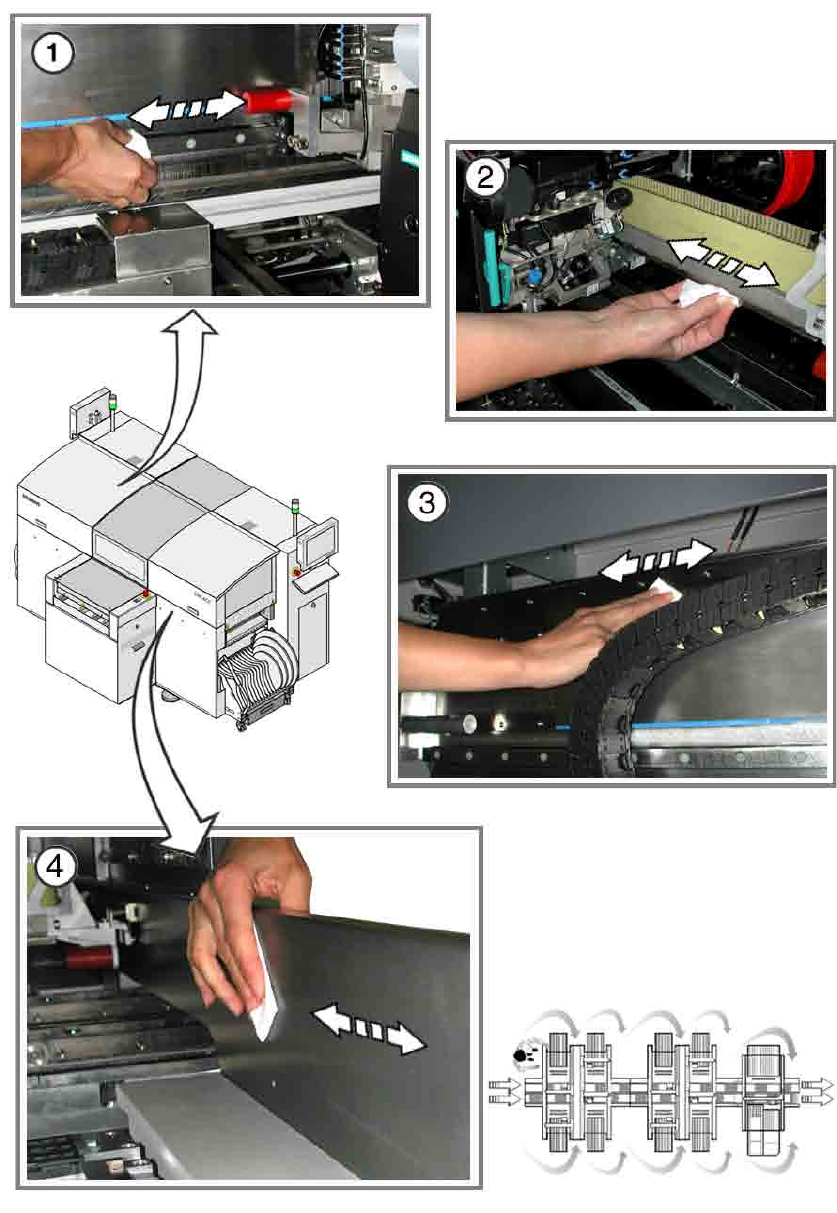

Clean the linear guides for the Y axis 5
a Clean the linear guides for the Y axis thoroughly over their entire length using the SIPLACE
cleaning tissue.
a Use a lint-free cloth to remove any stubborn dirt from the linear guides.
a Oil and preserve the linear guides using a fresh SIPLACE cleaning cloth.
5
Clean the linear guides for the X axis 5
s Clean the linear guides for the X axes thoroughly over their entire length using the SIPLACE
cleaning tissue.
s Use a lint-free cloth to remove any stubborn dirt from the linear guides.
s Oil and preserve the linear guides using a fresh SIPLACE cleaning cloth.
5
Clean the running surface of the Y axis opposing bearing 5
d Use a SIPLACE cleaning tissue to clean the running surface of the opposing bearing.
5
Clean the Y axis friction surface 5
f Use a SIPLACE cleaning tissue to clean the Y axis friction surface.
