1 Safety instructions SIPLA CE D1 / D2 02/2010 EN E dition 6 1 Fig. 1.0 - 2 Position of switches and buttons - V iew of the PCB input side (1) EMER GENCY STOP butto n on the in put side (2) S t art but ton (white ) on th…
SIPLACE D1 / D2 1 Safety instructions
02/2010 EN Edition
5
1 Safety instructions
1

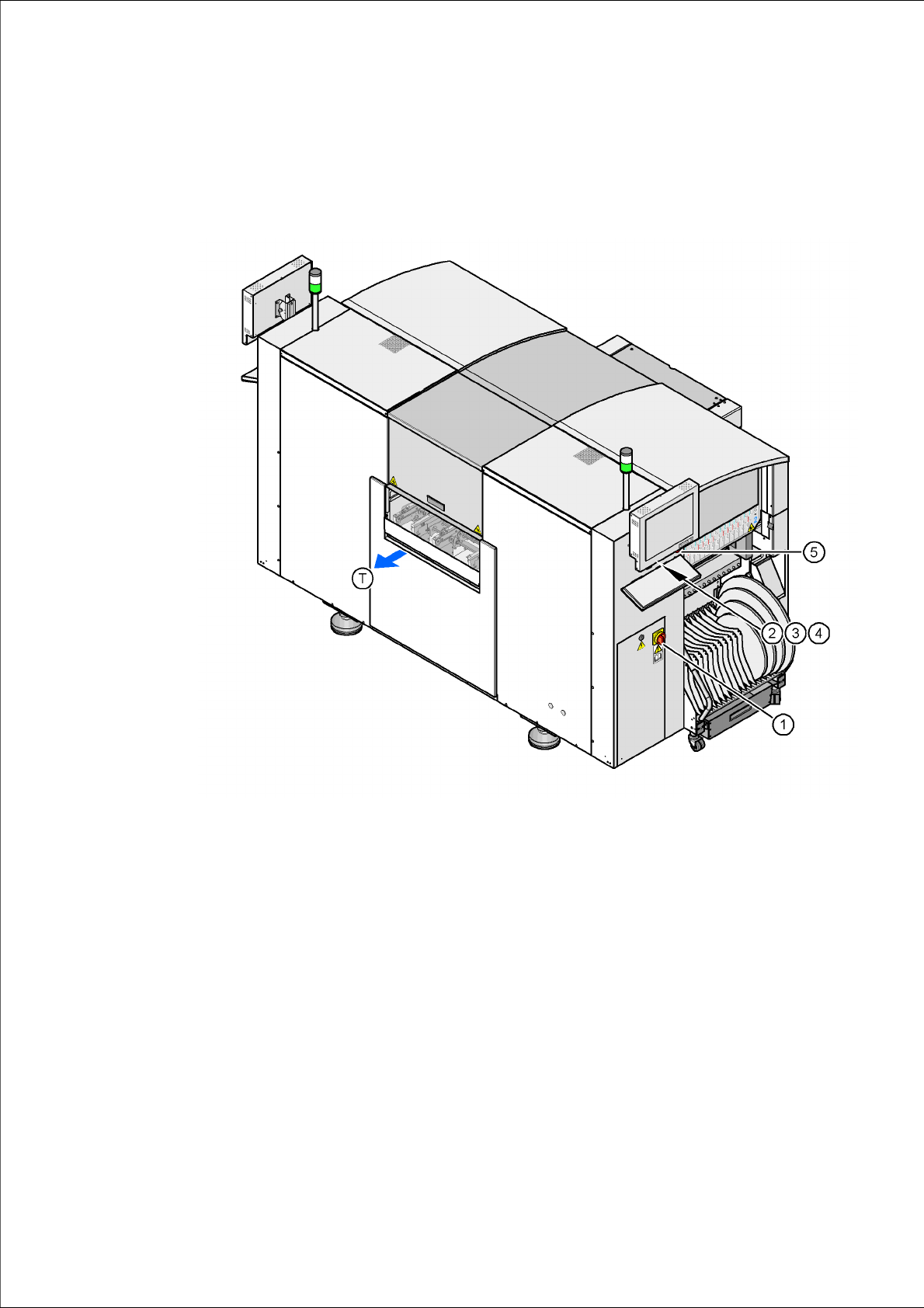

Fig. 1.0 - 1 Position of switches and buttons - View of the PCB output side
(1) Main power switch
(2) Start button (white) on the operator panel on the power supply side
(3) Stop button (black) on the operator panel on the power supply side
(4) Component counter on the operator panel on the power supply side
(5) EMERGENCY STOP button on the operator panel on the power supply side
(T) PCB transport direction
1 Safety instructions SIPLACE D1 / D2
02/2010 EN Edition
6
1

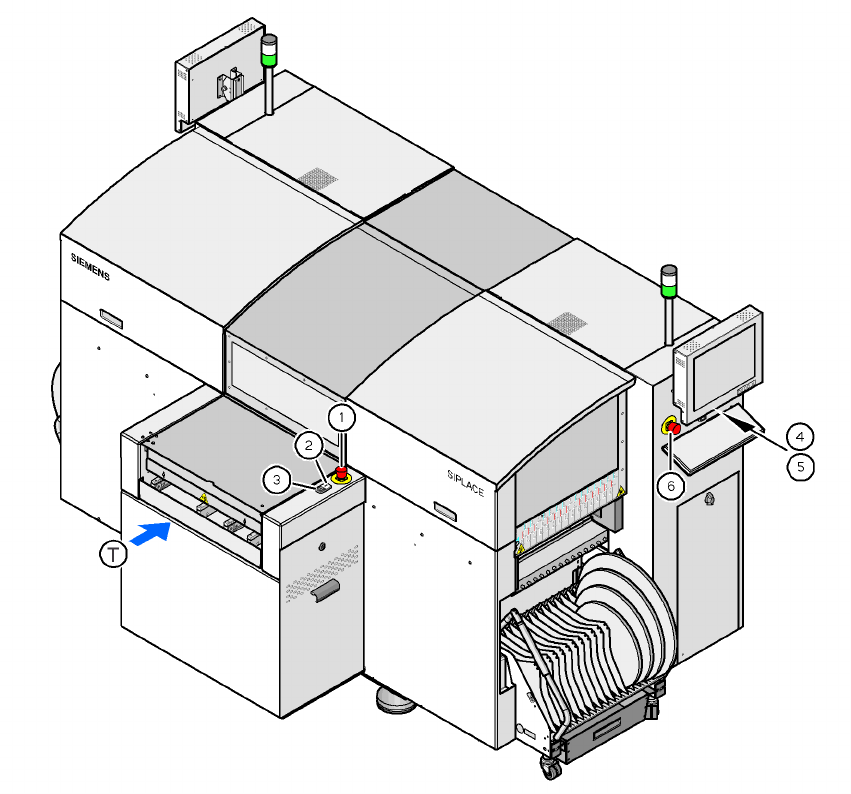

Fig. 1.0 - 2 Position of switches and buttons - View of the PCB input side
(1) EMERGENCY STOP button on the input side
(2) Start button (white) on the input side
(3) Stop button (white) on the input side
(4) Start button (white) on the operator panel on the compressed air unit side
(5) Stop button (black) on the operator panel on the compressed air unit side
(6) EMERGENCY STOP button on the operator panel on the compressed air unit side
(T) PCB transport direction
1
1
1
1
SIPLACE D1 / D2 1 Safety instructions
02/2010 EN Edition
7
: Always follow the safety and accident prevention regulations applicable in your country when
carrying out any maintenance work.
: Follow the safety instructions in the corresponding user manual.
: Pay particular attention to the special safety instructions in this chapter.
DANGER FOR HEART PACEMAKER WEARERS 1
1
CAUTION - POWERFUL MAGNETIC FIELD 1
1
WARNING DANGER OF CRUSHING 1
: Do not bring metal objects (made from iron, steel or nickel) in the vicinity of the permanent
magnets. Your fingers could be crushed due to the powerful attractive force.
1
1
: The permanent magnets for the y axis have an extremely powerful magnetic field.
People with heart pacemakers must not stand in the vicinity of the permanent mag-
nets.
: Do not wear watches since they can be damaged by permanent magnets.
: Do not bring magnetic data media, check or credit cards in the vicinity of the perma-
nent magnets - the data on these data media could be deleted by the field of the per-
manent magnets.
