7 4-monthly maintenance jobs SIPLA CE D1 / D2 02/2010 EN E dition 50 7
SIPLACE D1 / D2 7 4-monthly maintenance jobs
02/2010 EN Edition
49
a Use a brush or cottonwool bud to remove dirt from the Z axis toothed belt.
: Clean the rollers, toothed wheels and the toothed belt with a cottonwool bud or lint-free cloth.
: Check the toothed belt for wear.
Replace the toothed belt if it shows signs of wear (see
servicing instructions).
: Lightly grease the toothed belt with ISOFLEX TOPAS NCA 52 and remove any excess grease.
s Check that the Z axis guide runs easily and without play.
: Check the jaws and the ball race for damage.
Contact your regional Service Center if defects are identified in the Z axis, the jaws or the ball
race. 7
7
Oil the recirculating ball guide (lower bearing) 7
: Move the Z axis into its bottom position.
d Clean the grooves in the miniature roller table front and back using cottonwool buds dipped in
ethyl alcohol.
: Wipe the needle of the oil dispenser clean.
Do not force oil out of the oil dispenser. A visible drop would be too much oil. 7
7
7
f Simply place the needle immediately beside the ball cage/bearing on the grooves of the guide
rail. The action will cause sufficient oil to reach the grooves (capillary effect).
: Move the Z axis up and down several times to distribute the film of oil.
7 4-monthly maintenance jobs SIPLACE D1 / D2
02/2010 EN Edition
50
7
SIPLACE D1 / D2 7 4-monthly maintenance jobs
02/2010 EN Edition
51

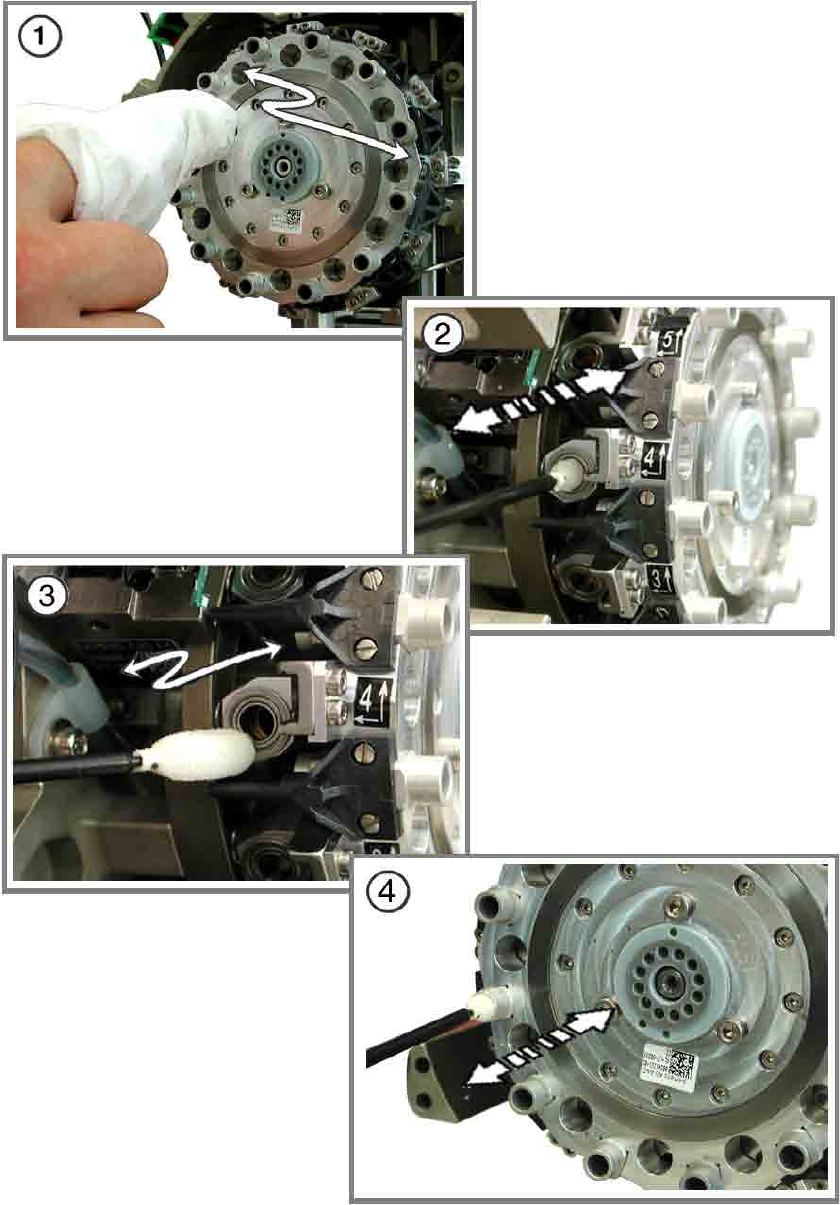

Star 7
a Wipe the star with a lint-free cloth.
: Apply a light film of ISOFLEX TOPAS NCA 52 grease to the running surface of the star brake.
Remove any visible excess grease.
7
Make sure that no dirt or grease gets into the vacuum channels. 7
7
7
7
The vacuum distributor disk is stuck on. 7
7
7
7
Segments 7
7
When cleaning, be careful not to damage the sleeve retaining springs in the segments. 7
When you insert the cottonwool bud into the segment, do not push it in as far as the retaining
spring, otherwise the retaining spring may be pulled out. 7
7
s Carefully clean the segments using a cottonwool bud moistened with ethyl alcohol.
d Remove any visible dirt around the segments.
7
7
Valve casing 7
: Remove the valve plungers.
f Clean the valve casing using a cottonwool bud moistened with ethyl alcohol.
: Then clean all around the valve casings.
