SIPLA CE D1 / D2 9 Maintain the sleeves 02/2010 EN Edition 79 a Remove an y dirt fr om the lo ng vacuu m hole by turning a 1.4 mm drill b it clockwi se in the hole. T urning the b it will remov e the dirt from t he hole.…
9 Maintain the sleeves SIPLACE D1 / D2
02/2010 EN Edition
78
9
SIPLACE D1 / D2 9 Maintain the sleeves
02/2010 EN Edition
79

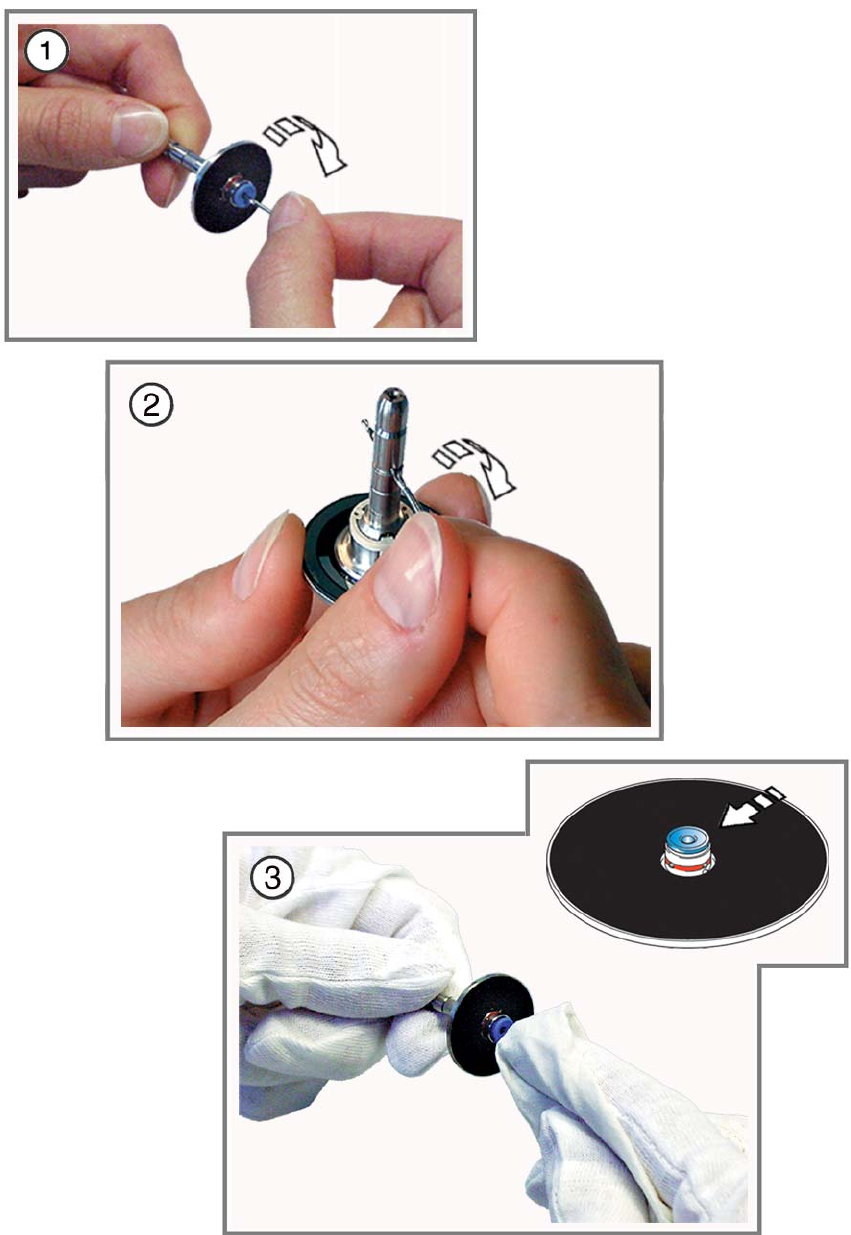

a Remove any dirt from the long vacuum hole by turning a 1.4 mm drill bit clockwise in the hole.
Turning the bit will remove the dirt from the hole.
s Remove the dirt from the transverse vacuum hole using the 1.1 mm drill bit.
9
Wear laboratory gloves to carry out this step. 9
9
9

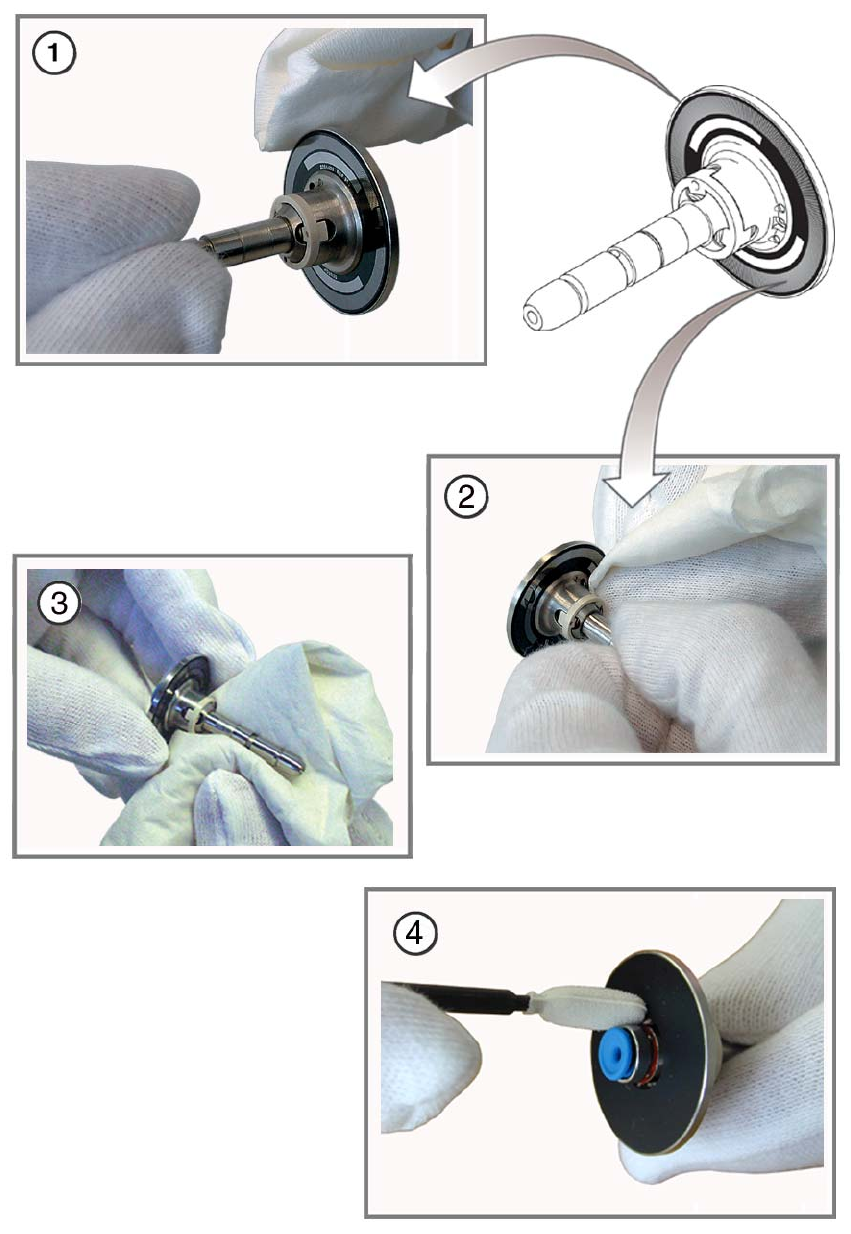

d Check the suction plate for damage.
Replace it if it is damaged.
d Clean the sleeve suction plate using a dry, lint-free cloth.
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9
9 Maintain the sleeves SIPLACE D1 / D2
02/2010 EN Edition
80
