6 2-monthly maintenance jobs SIPLA CE D1 / D2 02/2010 EN E dition 42 6
SIPLACE D1 / D2 6 2-monthly maintenance jobs
02/2010 EN Edition
41
Inspect or replace the silencer 6
a Check the silencer of the Collect&Place head for dirt.
If it is discolored, detach the retainer by turning it counter-clockwise.
s Replace the dirty filter and reverse the sequence described above to fit.
6
6
Clean and grease the toothed belts for the X and Z axes 6
: Clean the toothed belts of the X and Z axes.
6
d Lightly grease the X axis toothed belt using a short-bristled brush moistened with ISOFLEX
TOPAS NCA 52.
f Lightly grease the Z axis toothed belt using a short-bristled brush moistened with ISOFLEX
TOPAS NCA 52.
: Distribute the grease evenly over the toothed belt by moving the axes back and forth.
: Remove any excess grease.
6
6
6
6
6
6
6
6
6
6
6 2-monthly maintenance jobs SIPLACE D1 / D2
02/2010 EN Edition
42
6
SIPLACE D1 / D2 6 2-monthly maintenance jobs
02/2010 EN Edition
43

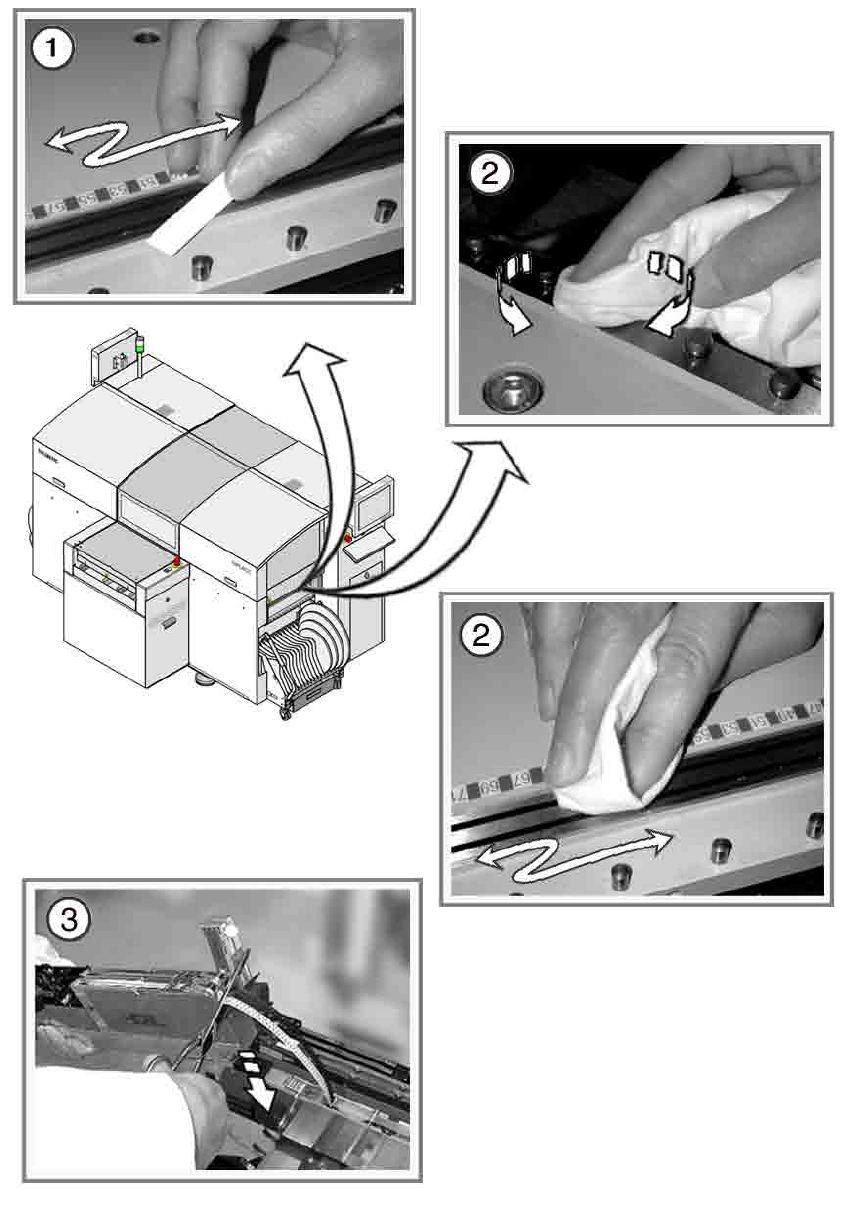

Maintain the component feeder table 6
: Clear the feeder area.
: Remove any loose components from the component feeder table using the vacuum cleaner.
a Use a whetstone to remove any bumps on the magnetic rail.
6
6
s Preserve the feeder area using a lint-free cloth sprayed with WD40.
: Vacuum up any loose components from the tape container and remove any unwanted stickers
and adhesive tape.
6
d Cut off the excess used tape flush with the feeder and empty the component drawer or the
component flap on 8 mm S feeder modules.
: Return the feeder modules to the feeder area.
Make sure that each feeder is in the correct location and is connected correctly. 6
6
6
6
: Close the protective cover.
: Switch the placement machine on at the main switch.
