You will need the following tools, equipment and consumables for the 2-monthly maintenance: 6
– Vacuum cleaner
– Condensate catch tray
– Short-bristled brush
– Phillips screwdriver
– Whetstone
–Scissors
– Lint-free cloths
– ISOFLEX TOPAS NCA52 grease
–WD40
– Filter insert, 5 microm. for series 112, if required
– New silencer for the Collect&Place head DLM2, if required.
6
6

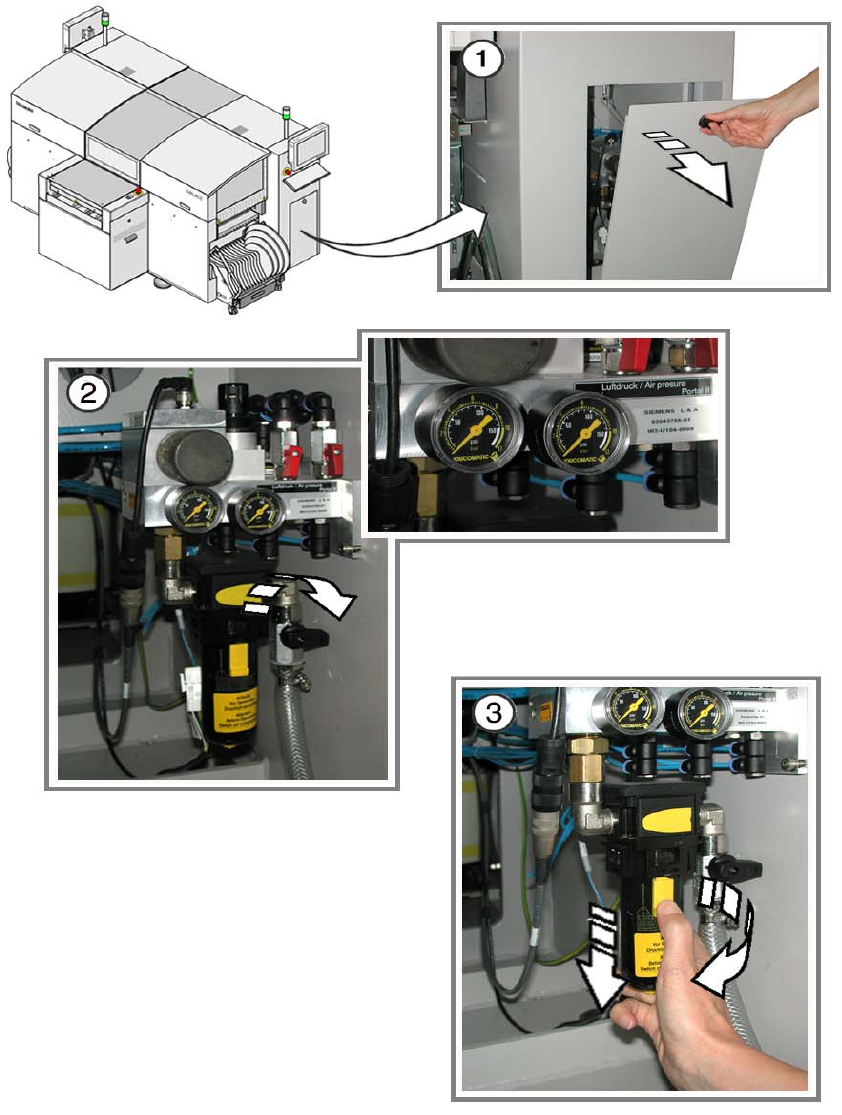

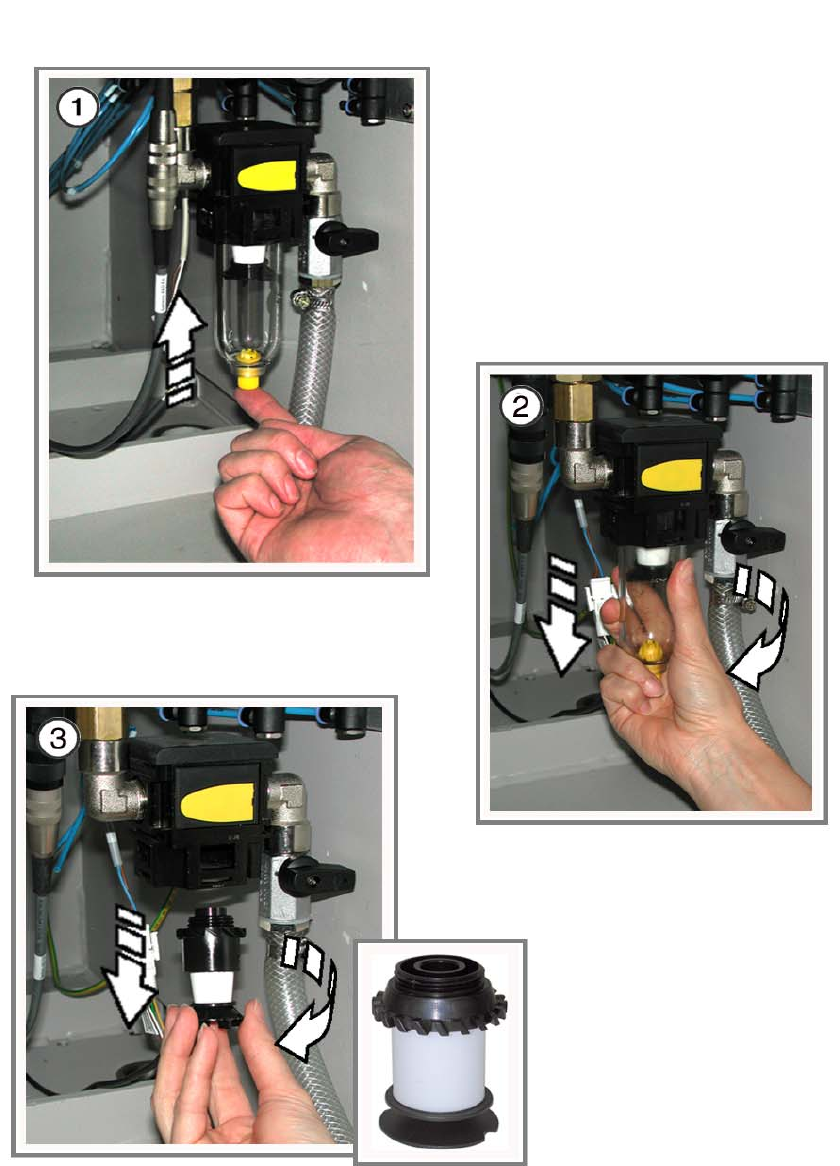

Inspect or replace the filter cartridge 6
a Open the door to the compressed air supply.
6
s Turn the main compressed air valve clockwise into the horizontal position to close it.
: As soon as both manometers read 0, switch the placement machine off at the main switch.
6
d Remove the cover flap by pulling the yellow cap release down and turning the cover flap coun-
ter-clockwise (bayonet fitting).
