7 4-monthly maintenance jobs SIPLACE D1 / D2
02/2010 EN Edition
60
SIPLACE D1 / D2 7 4-monthly maintenance jobs
02/2010 EN Edition
61

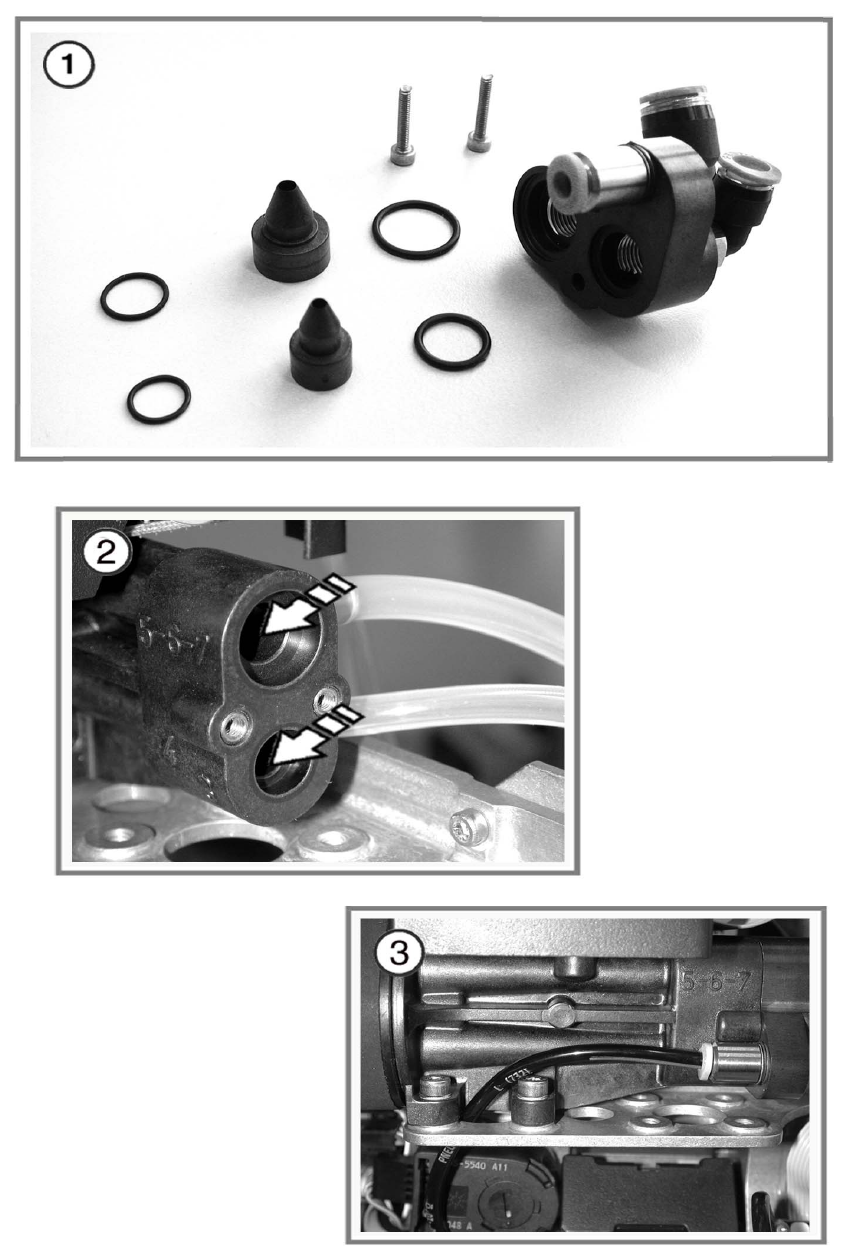

a Carefully clean the Venturi nozzles using a lint-free cloth moistened with ethyl alcohol.
a Blow through the Venturi nozzles with compressed air.
a Clean the O-rings with a dry lint-free cloth (replace them, if required).
a Lightly grease the O-rings of the Venturi nozzles with UNISILKON L250L.
a Clean the vacuum generator block with a cottonwool bud moistened with ethyl alcohol and
blow through with compressed air.
a Place the cleaned parts of the vacuum generator on a clean surface.
7
Silencer 7
: Loosen the screw on the silencer and remove the silencer.
s Clean the holes to the Venturi nozzles with a cottonwool bud moistened with ethyl alcohol.
: Check the silencer for dirt.
If there are any signs of discoloration, replace the silencer and reverse the sequence described
above to fit.
7
Assemble the vacuum generator 7
: Assemble the block with the Venturi nozzles and carefully screw tight.
d Attach the compressed air hoses once more using the pliers.
7
: Fit the head cover.
: Pick up the nozzles once more.
7
Test placement 7
The distance between the component camera and the PCB camera can be changed by separating
the front and back parts of the head. 7
: Carry out a test placement run to test whether the placement accuracy is still guaranteed.
: If the placement accuracy is not guaranteed, remeasure the segment offset 2.
8 Annual maintenance work SIPLACE D1 / D2
02/2010 EN Edition
62

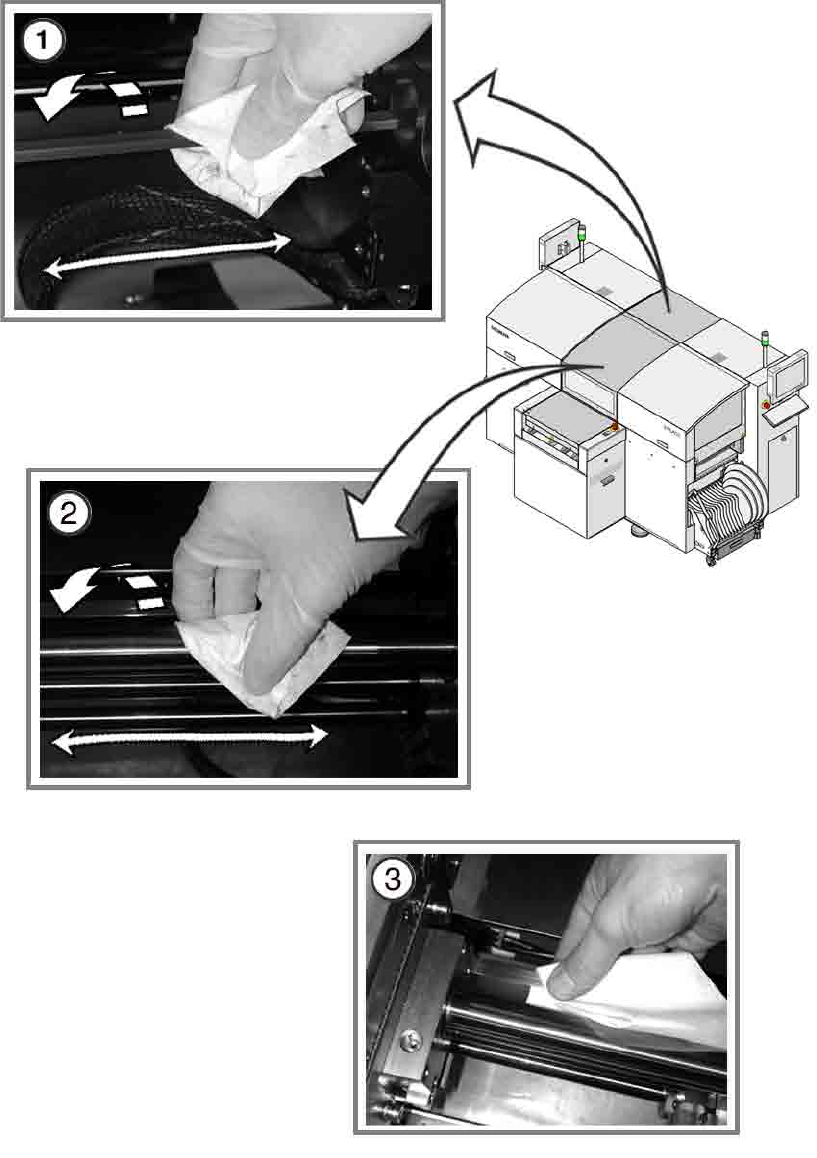

8 Annual maintenance work
8
