4 Conveyor Mechanics
4.7 Replacing the Pusher Unit and Parts
106 Service Manual SIPLACE JTF-ML2 08/2017
► Remove the LM Guide W12x6 L175 [03127165-
xx] (2).
► Leave the trolley (1) on the LM Guide W12x6
L175 [03127165-xx] (2).
LM Guide W12x6 L175 [03127165-xx]
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following in-
structions:
► Start to fasten the screws ISO 4762 - M 2 x 6-
A2-70 [03042525-xx] (1) from the middle screw.
► Continue to fasten the screws left and right al-
ternating to the outside to ensure the guide rail is
assembled properly..
4.7.5 Replacing the Pusher Tip
Parts, Equipment and Tools
●
Standard tools
●
Pusher tip [03132851-xx] (with two screws ISO
4762 - M 3 x 6-A2-70 [03042541-xx])
4 Conveyor Mechanics
4.7 Replacing the Pusher Unit and Parts
Service Manual SIPLACE JTF-ML2 08/2017 107
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}11].
► Remove the two screws ISO 4762 - M 3 x 6-
A2-70 [03042541-xx] (1).
► Remove the Pusher tip [03132851-xx] (1).
Installation
► Follow the removal instructions in reverse order for installation.
4 Conveyor Mechanics
4.8 Replacing the Toothed Belt
108 Service Manual SIPLACE JTF-ML2 08/2017
4.8 Replacing the Toothed Belt
Parts, Equipment and Tools
●
Standard tools
●
Toothed belt 10+-0.1 S2M/726 [03130743-xx]
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}11].
► Remove the conveyor (See 2.1.1 "Removing Conveyor from Machine" [}17]).

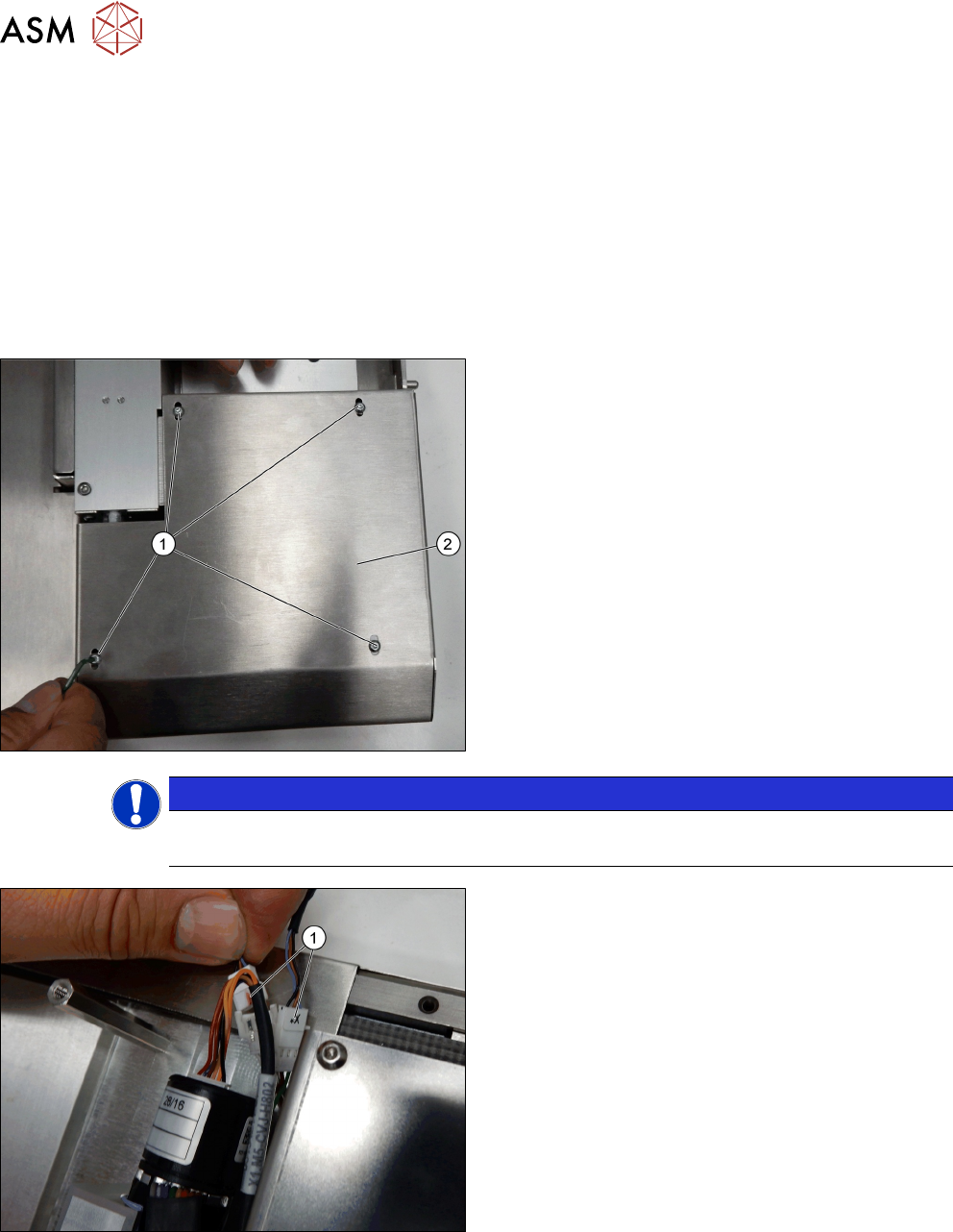

► Remove the four screws DIN EN ISO 7380-M3 x
5-A2-70 [03045193-xx] (1).
► Remove the Conveyor motor cover [03145679-
xx] (2).
NOTICE
Same part numbers
Mark the cables before removing them. Both cables have the same part number.
► Remove the two cables (1) from the BLDC motor
BGA22x22 w/ gearbox/encoder [03128938-xx].
