4 Conveyor Mechanics
4.4 Replacing the Driven Pulley
Service Manual SIPLACE JTF-ML2 08/2017 87
Removal
Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}11].
Remove the conveyor (See Removing SIPLACE JTF-ML2 Conveyor from Machine).
Remove the two screws DIN EN ISO 7380-M3 x
5-A2-70 [03045193-xx] (1).
Remove the Left belt cover [03145447-xx] (2).
Remove the two screws ISO 4762 - M 4 x 8-
A2-70 [03042551 –xx] (3).
Remove the right Rail [03147568-xx] (4).
Remove the four screws DIN EN ISO 7380-M3 x
5-A2-70 [03045193-xx] (1).
Remove the PCB cover [03128922-xx] (2).
Loosen socket head shoulder screw M4x5x16
[03145465-xx] (1), to right to loosen belt.
4 Conveyor Mechanics
4.4 Replacing the Driven Pulley
88 Service Manual SIPLACE JTF-ML2 08/2017

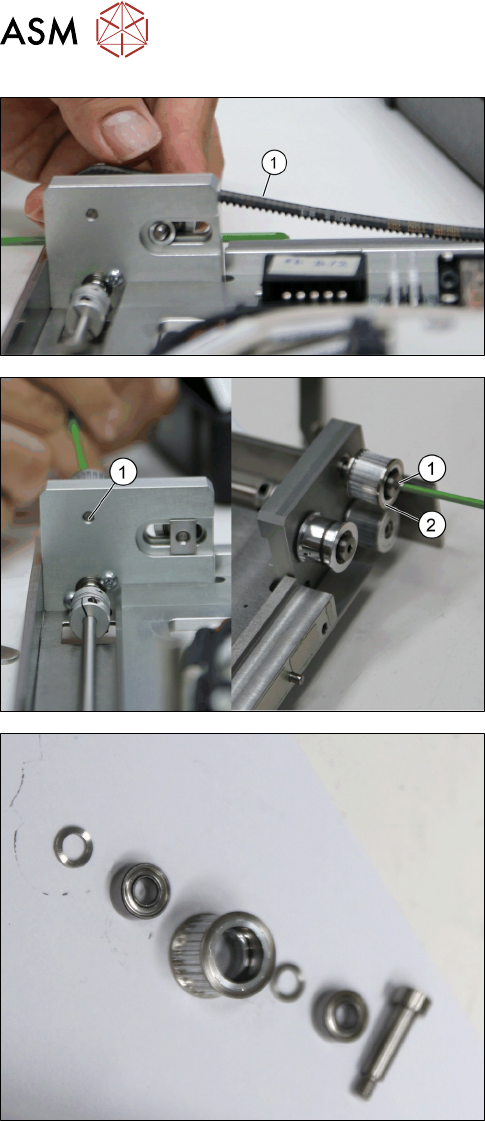

Remove the belt (1).
Remove the Socket head shoulder screw
M4x5x16 [03145465-xx] (1).
Remove the Driven pulley assembly [03133576-
xx] (2).
Driven pulley assembly [03133576-xx]
Installation
Follow the removal instructions in reverse order for installation.
Test the belt tension with the belt tension measuring device. It should be at 70 +/- 5 Hz.
4 Conveyor Mechanics
4.5 Replacing the PCBA Position Cover
Service Manual SIPLACE JTF-ML2 08/2017 89
4.5 Replacing the PCBA Position Cover
Parts, Equipment and Tools
Standard tools
PCBA position cover [03148885-xx]
Removal
Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}11].

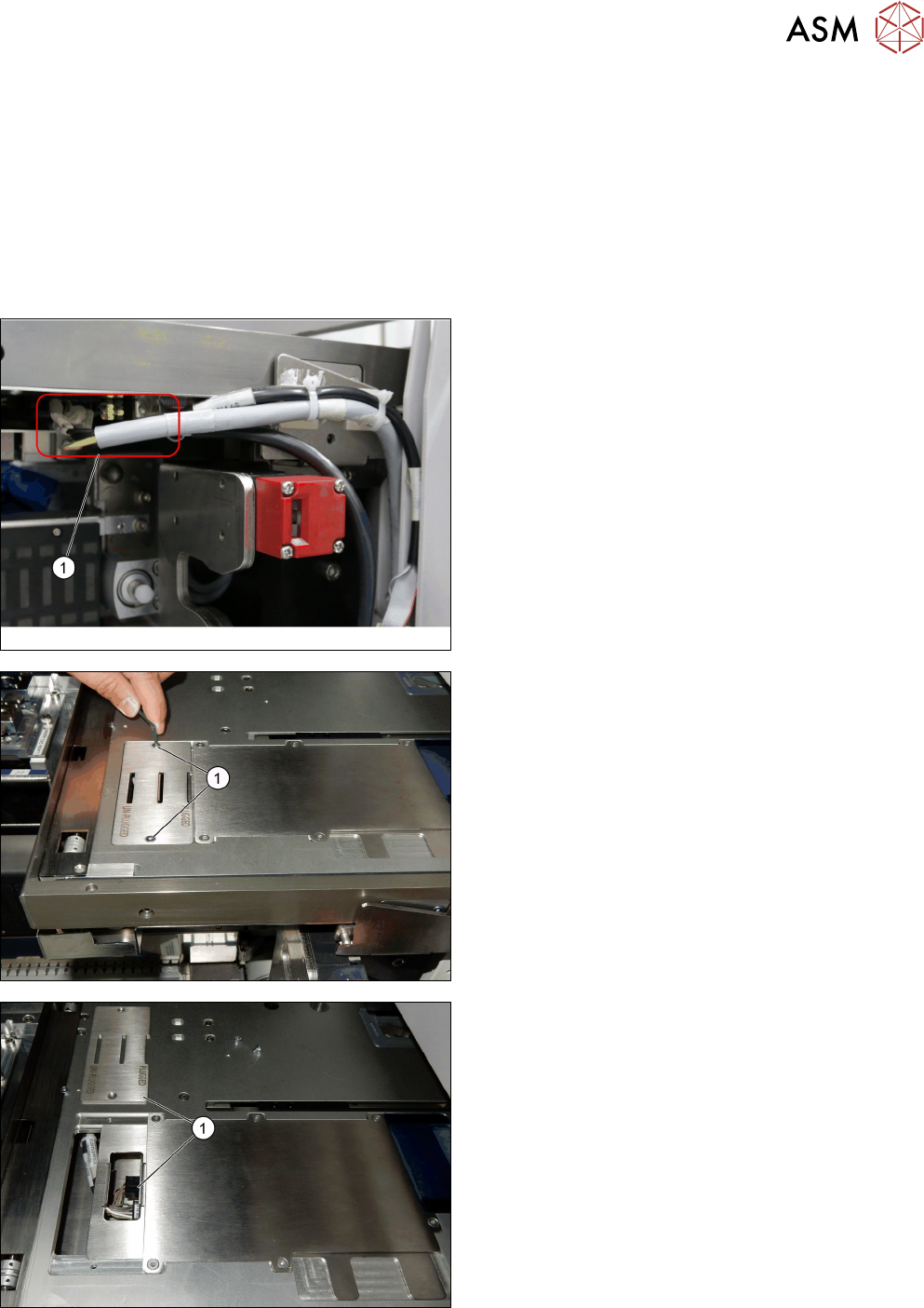

Unplug the cables from the connectors X2.COTI1
and X4.COTI1 in the conveyor base of the
SIPLACE JTF-ML2 (1).
Remove the two screws ISO 10642 - M3x6-
A2-70 [03082814-xx] (1).
Remove the PCBA position Cover [03148885-xx]
(1).
