4 Conveyor Mechanics 4.8 Replacing the Toothed Belt 108 Service Manual SIPLACE JTF-ML2 08/2017 4.8 Replacing the Toothed Belt Parts, Equipment and Tools ● Standard tools ● Toothed belt 10+-0.1 S2M/726 [03130743-xx] Remov…

4 Conveyor Mechanics

4.7 Replacing the Pusher Unit and Parts

Service Manual SIPLACE JTF-ML2 08/2017 107

Removal

► Switch off the machine, disconnect it from the power supply and secure it to prevent

unauthorized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}11].

► Remove the two screws ISO 4762 - M 3 x 6-

A2-70 [03042541-xx] (1).

► Remove the Pusher tip [03132851-xx] (1).

Installation

► Follow the removal instructions in reverse order for installation.

4 Conveyor Mechanics

4.8 Replacing the Toothed Belt

108 Service Manual SIPLACE JTF-ML2 08/2017

4.8 Replacing the Toothed Belt

Parts, Equipment and Tools

●

Standard tools

●

Toothed belt 10+-0.1 S2M/726 [03130743-xx]

Removal

► Switch off the machine, disconnect it from the power supply and secure it to prevent

unauthorized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}11].

► Remove the conveyor (See 2.1.1 "Removing Conveyor from Machine" [}17]).

► Remove the four screws DIN EN ISO 7380-M3 x

5-A2-70 [03045193-xx] (1).

► Remove the Conveyor motor cover [03145679-

xx] (2).

NOTICE

Same part numbers

Mark the cables before removing them. Both cables have the same part number.

► Remove the two cables (1) from the BLDC motor

BGA22x22 w/ gearbox/encoder [03128938-xx].

4 Conveyor Mechanics

4.8 Replacing the Toothed Belt

Service Manual SIPLACE JTF-ML2 08/2017 109

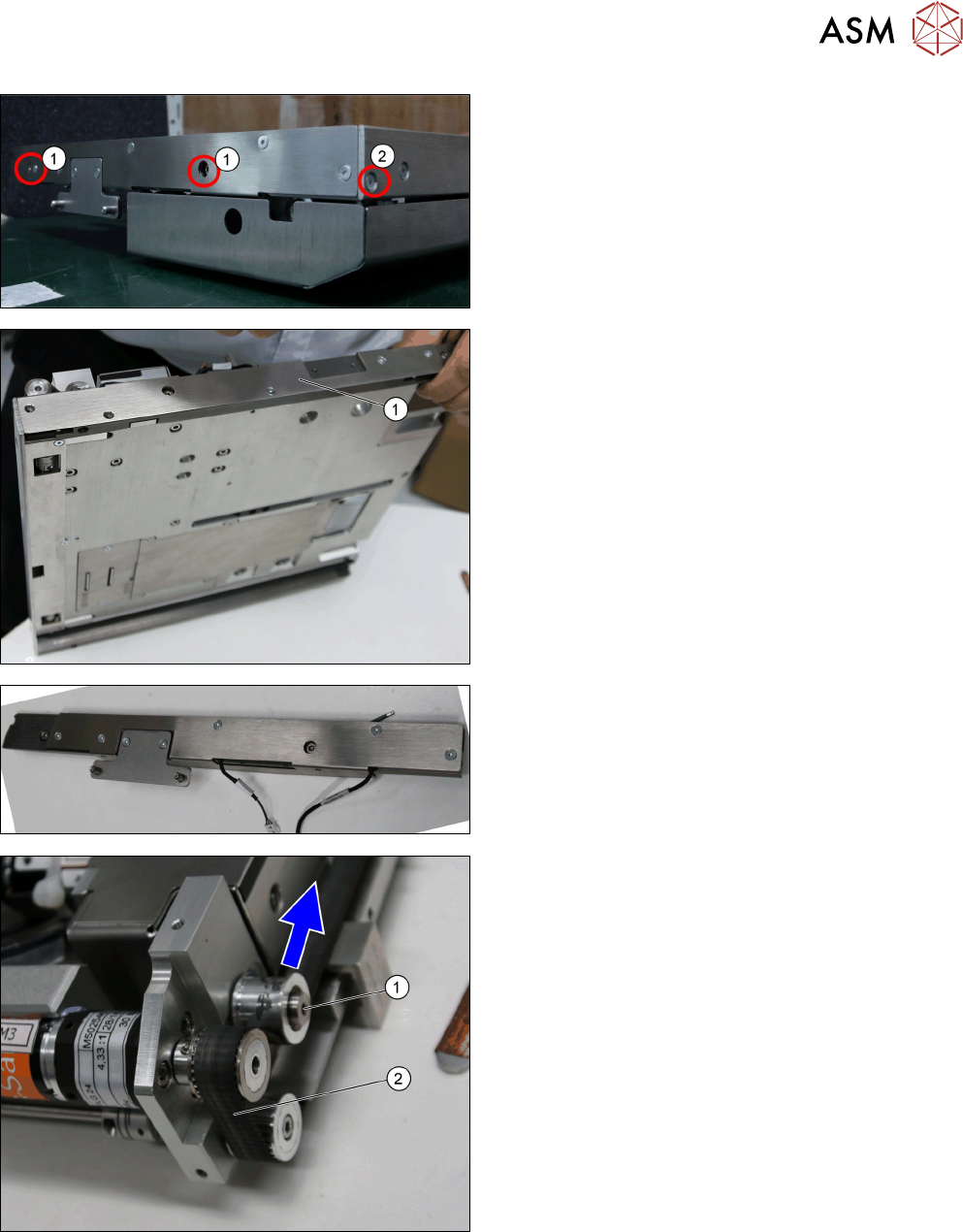

► Remove the two screws ISO 4762 - M 4 x 8-

A2-70 [03042551-xx] (1) and the screw ISO

10642 - M3x6-A2-70 [03082814-xx] (2).

► Remove the Left rail cpl.[ 03146884-xx] (1).

Left rail cpl.[ 03146884-xx]

► Loosen socket head shoulder screw M4x5x16

[03145465-xx] (1) to right to loosen the tension

on the Toothed belt 10+-0.1 S2M/726 [03130743-

xx] (2).

► Remove the Toothed belt 10+-0.1 S2M/726

[03130743-xx] (2).
