5 Electrics
5.6 Replacing the Light Aperture
Service Manual SIPLACE JTF-ML2 08/2017 131
5.6 Replacing the Light Aperture
Parts, Equipment and Tools
●
Standard tools
●
Light aperture [03113302-xx]
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}11].
► Remove the tower from the machine ( see 2.1.2 "Removing Tower from Machine" [}21]).
► Remove the top cover (see 2.1.3 "Removing Tower Top Cover" [}25]).
► Remove the side cover (see 2.1.4 "Removing Side Cover" [}27]).
► Remove the Cable, through beam sensor receiver [03146663-xx] (see 5.5 "Replacing the
Beam Sensor Receiver Cable" [}129]).

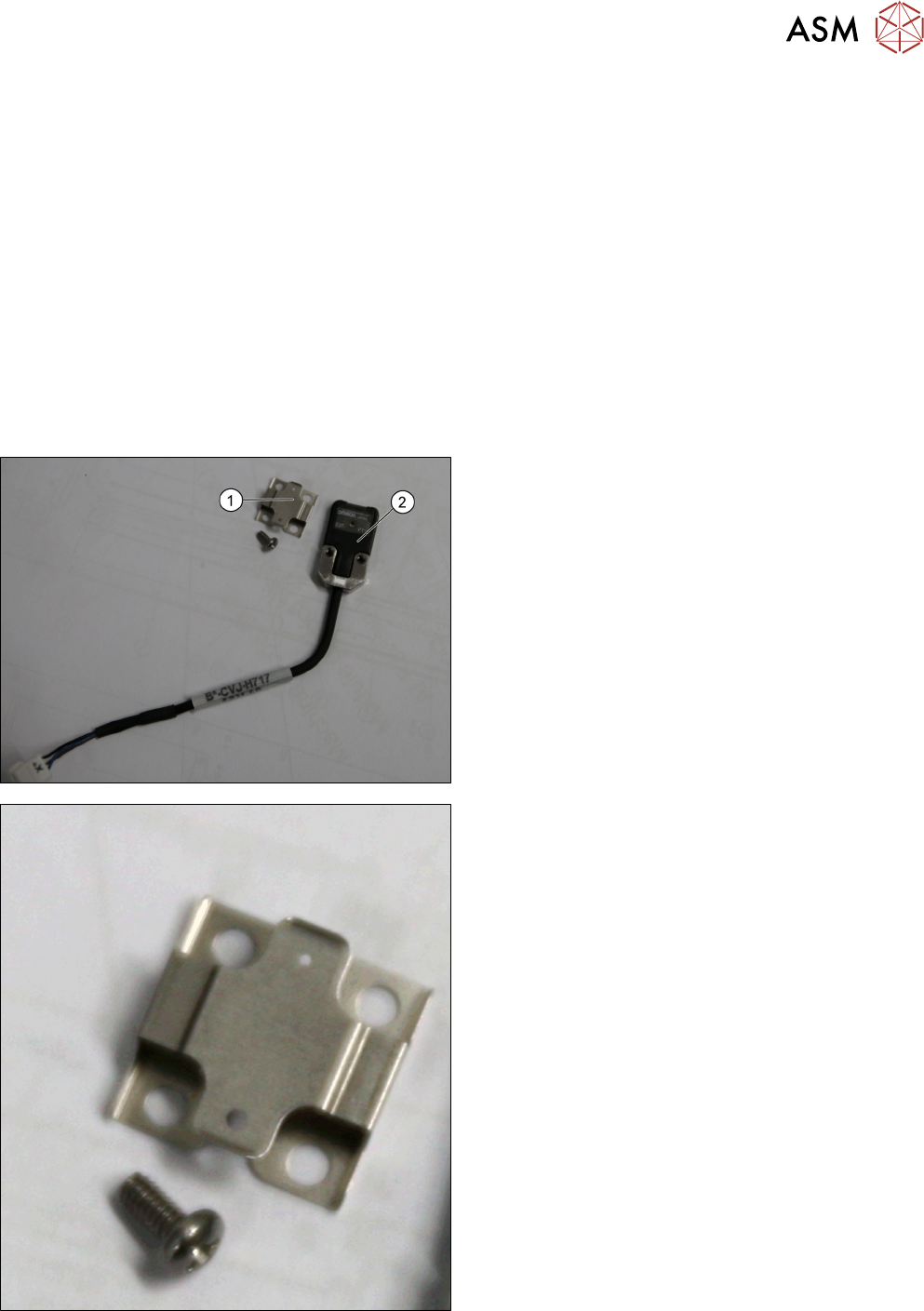

► Remove the Light aperture [03113302-xx] (1)
from the beam sensor receiver [03146663-xx] (2).
Light aperture [03113302-xx]
5 Electrics
5.7 Replacing the PCBA JTF-ML2 Control Board
132 Service Manual SIPLACE JTF-ML2 08/2017
Installation
► Follow the removal instructions in reverse order for installation.
NOTICE
Correct orientation
One hole is smaller than the other. Make sure to install the correct orientation.
See also
2 Replacing the Light Aperture [}131]
5.7 Replacing the PCBA JTF-ML2 Control Board
Parts, Equipment and Tools
●
Standard tools
●
PCBA Tesla control board [03125534-xx]
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}11].
► Remove the tower from the machine (see 2.1.2 "Removing Tower from Machine" [}21]).
► Remove the top cover (see 2.1.3 "Removing Tower Top Cover" [}25]).
► Remove all cables from the PCBA, JFT-ML2 con-
trol board [03125534-xx].
1. X22; X8; X7; X6; X5
2. X16; X15
3. X23
4. X18; X19; X17
5. X4

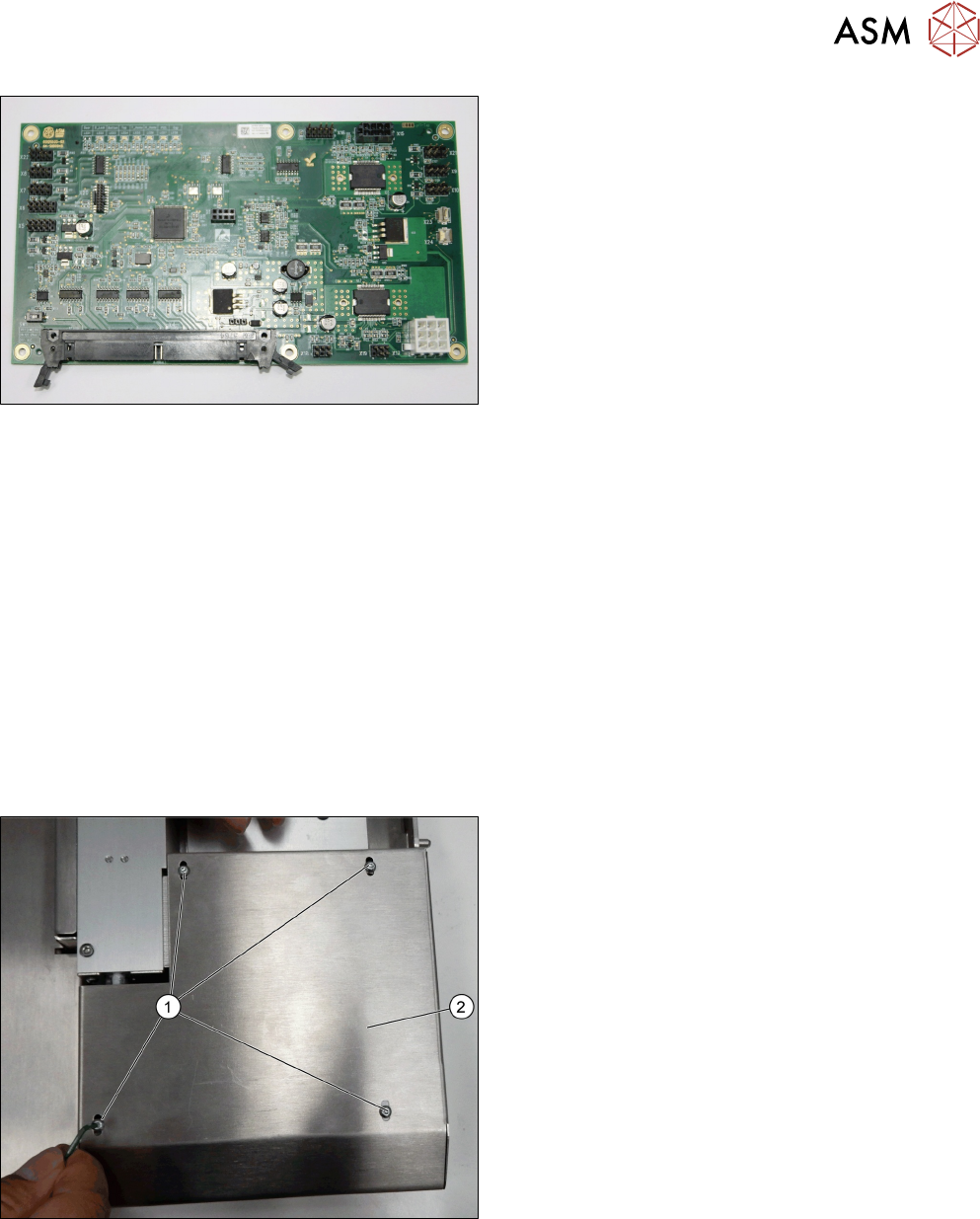

► Remove the six screws ISO 4762 - M 3 x 6-A2-70
[03042541-xx] (1).
5 Electrics
5.8 Replacing the Reflective Sensor Cable
Service Manual SIPLACE JTF-ML2 08/2017 133
► Remove the PCBA, Tesla control board
[03125534-xx].
Installation
► Follow the removal instructions in reverse order for installation.
5.8 Replacing the Reflective Sensor Cable
Parts, Equipment and Tools
●
Standard tools
●
Cable, reflective sensor, common [03146661-xx]
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}11].
► Remove the conveyor from the machine (see 2.1.1 "Removing Conveyor from Ma-
chine" [}17]).
► Remove the four screws DIN EN ISO 7380-M3 x
5-A2-70 [03045193-xx] (1).
► Remove the Conveyor motor cover [03145679-
xx] (2).
