5 Electrics 5.2 Replacing the Beam Sensor Emitter Cable Service Manual SIPLACE JTF-ML2 08/2017 123 5.2 Replacing the Beam Sensor Emitter Cable Parts, Equipment and Tools ● Standard tools ● Cable, through beam sensor emit…
5 Electrics
5.1 Replacing the Slot Sensor
122 Service Manual SIPLACE JTF-ML2 08/2017

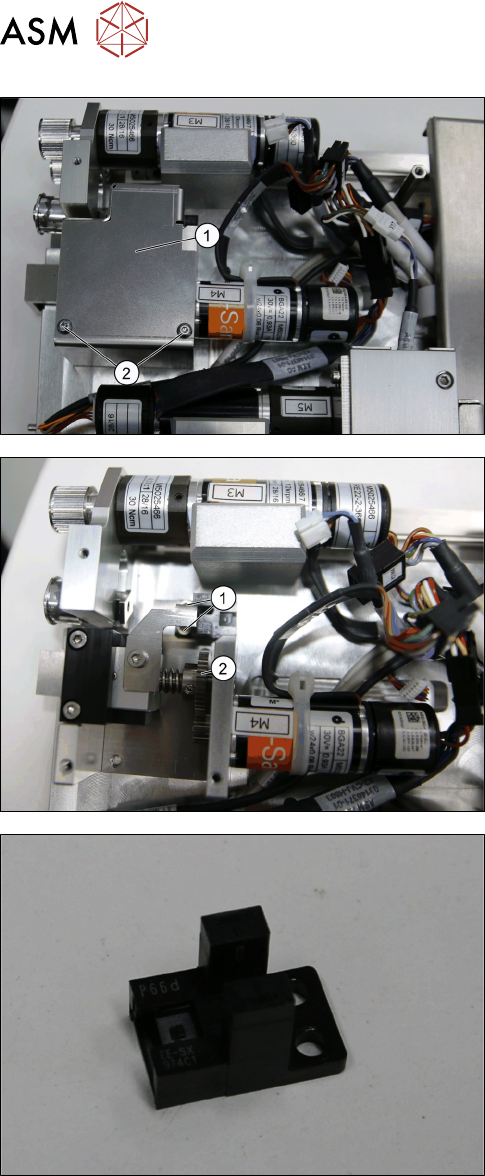

► Remove the two screws DIN EN ISO 7380-M3 x
5-A2-70 [03045193-xx] (2).
► Remove the Clamper cover [03145970-xx] (1).
► Turn the Clamper gear 0.5x40 (2) to move the
clamper sensor part [03143529-xx] till the screws
(1) of the Slot sensor w/ connector [03145975-xx]
are reachable.
► Remove the two screws ISO 4762 - M 3 x 6-
A2-70 [03042541-xx] (1).
► Remove the Slot sensor w/ connector [03145975-
xx].
Installation
► Follow the removal instructions in reverse order for installation.
5 Electrics
5.2 Replacing the Beam Sensor Emitter Cable
Service Manual SIPLACE JTF-ML2 08/2017 123
5.2 Replacing the Beam Sensor Emitter Cable
Parts, Equipment and Tools
●
Standard tools
●
Cable, through beam sensor emitter, common [03146662-xx]
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}11].
► Remove the tower from the machine (see 2.1.2 "Removing Tower from Machine" [}21]).
► Remove the top cover (see 2.1.3 "Removing Tower Top Cover" [}25]).
► Remove the side cover (see 2.1.4 "Removing Side Cover" [}27]).

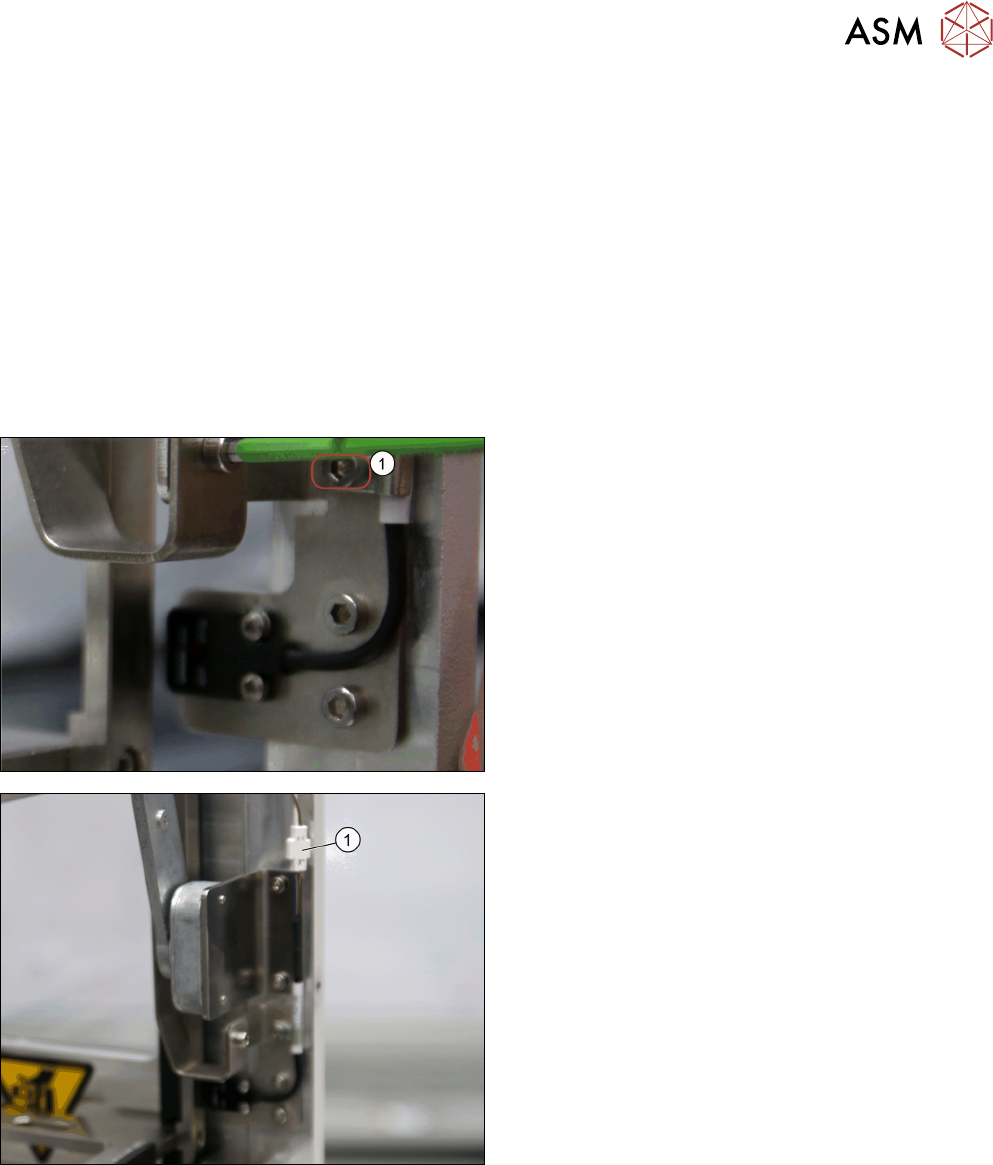

► Remove the screw ISO 4762 - M 3 x 6-A2-70
[03042541-xx] (1) of the cable clamp.
► Disconnect the plug X*(1) of the Cable, through
beam sensor emitter, common [03146662-xx].
5 Electrics
5.2 Replacing the Beam Sensor Emitter Cable
124 Service Manual SIPLACE JTF-ML2 08/2017
► Remove the two screws ISO 7045 - M2 x 4-
A2-50-H [03010197-xx] (2).
► Remove the Cable, through beam sensor emitter,
common [03146662-xx] (1).
Installation
► Follow the removal instructions in reverse order for installation.
NOTICE
Tray Position
Do a running sensor check when the replacement is completed to ensure the correct tray
position is achieved.
