3 Tower Mechanics 3.7 Replacing the Door Insert Lock Service Manual SIPLACE JTF-ML2 08/2017 51 ► Remove the cable tie (1) . ► Remove the two screws ISO 4762 - M 4 x 16- A2-70 [03042507-xx] (2) . ► Remove the Transponder …
3 Tower Mechanics
3.7 Replacing the Door Insert Lock
50 Service Manual SIPLACE JTF-ML2 08/2017

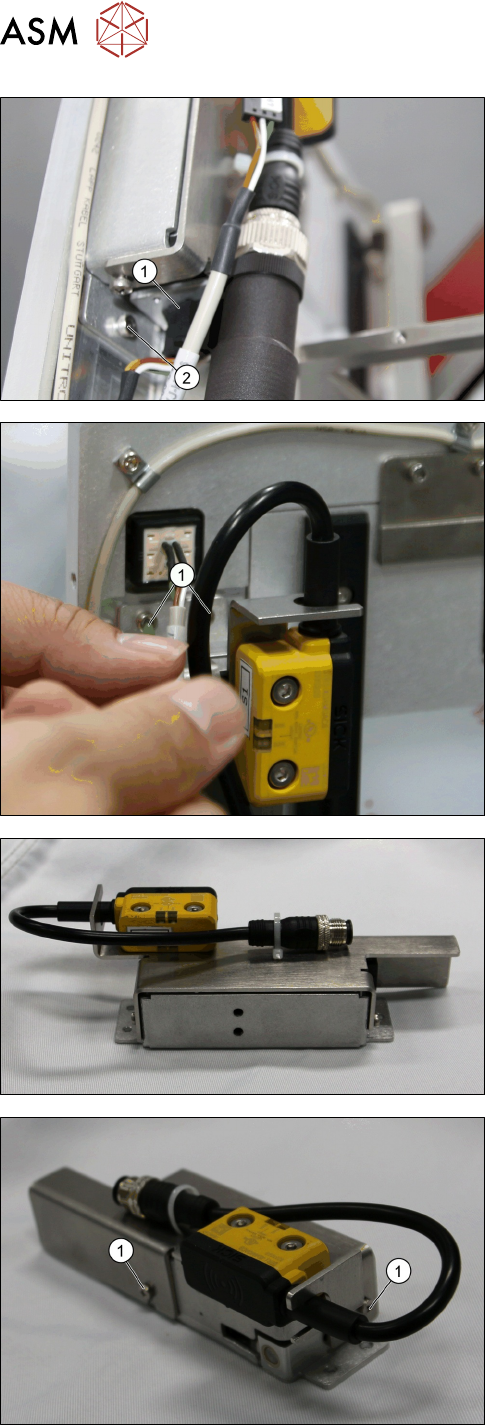

► Remove the cable from the Plug Housing, Micro-
Fit, 8 Pos, Panel mount [03147085-xx] (1).
► Remove the screw ISO 4762 - M 3 x 6-A2-70
[03042541-xx] (2).
► Remove the two screws ISO 4762 - M 3 x 6-
A2-70 [03042541-xx] (1).
► Remove the Door insert lock cpl. [03147017-xx]
with the Transponder safety switch STR1.
Transponder safety switch STR1 with Door insert lock
cpl. [03147017-xx]
► Remove the two screws ISO 7045 - M3 x 5-
A2-50-H [03010218-xx] (1).
3 Tower Mechanics
3.7 Replacing the Door Insert Lock
Service Manual SIPLACE JTF-ML2 08/2017 51

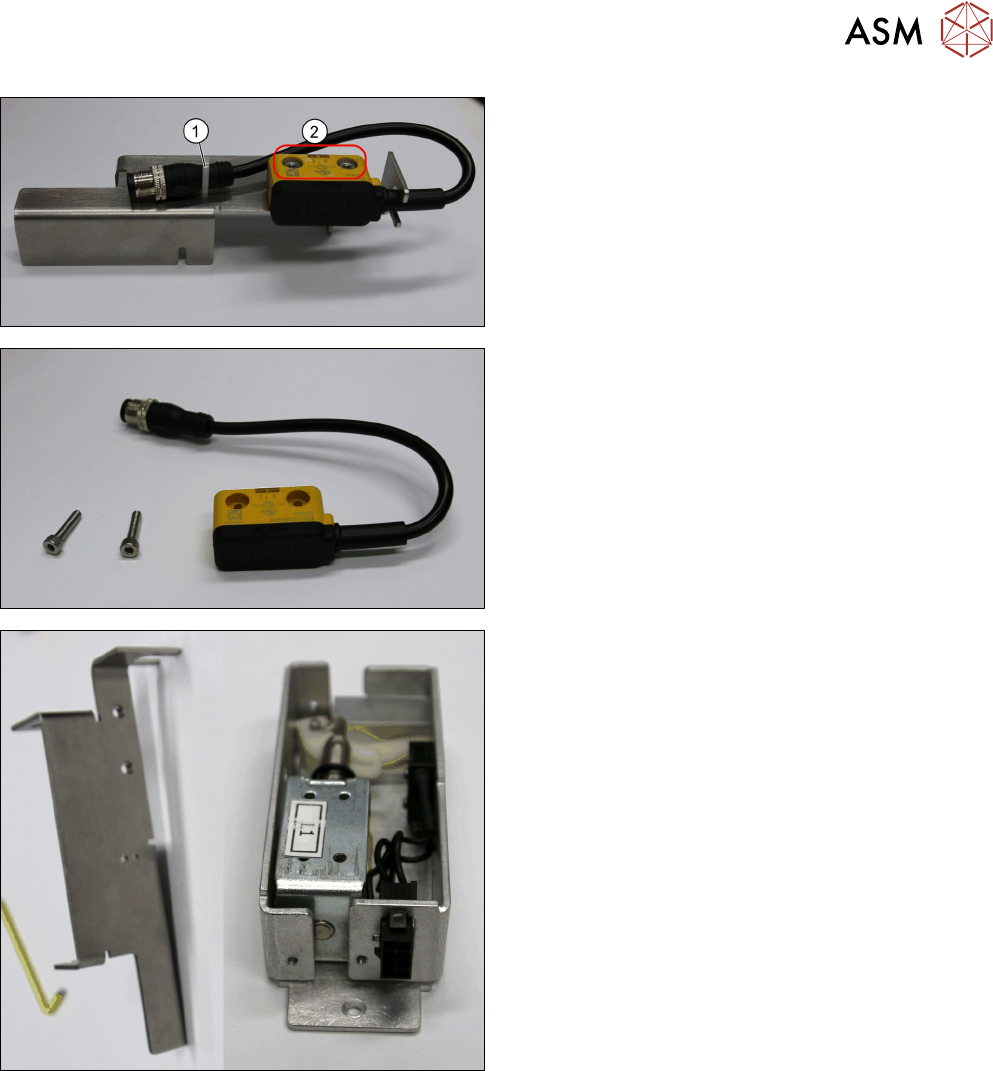

► Remove the cable tie (1).
► Remove the two screws ISO 4762 - M 4 x 16-
A2-70 [03042507-xx] (2).
► Remove the Transponder safety switch STR1
[03143849-xx],
Transponder safety switch STR1 part of door safety
switch [03158838-xx].
Door insert lock cpl. [03147017-xx]
Installation
► Follow the removal instructions in reverse order for installation.
3 Tower Mechanics
3.8 Replacing the Door Guide Strip
52 Service Manual SIPLACE JTF-ML2 08/2017

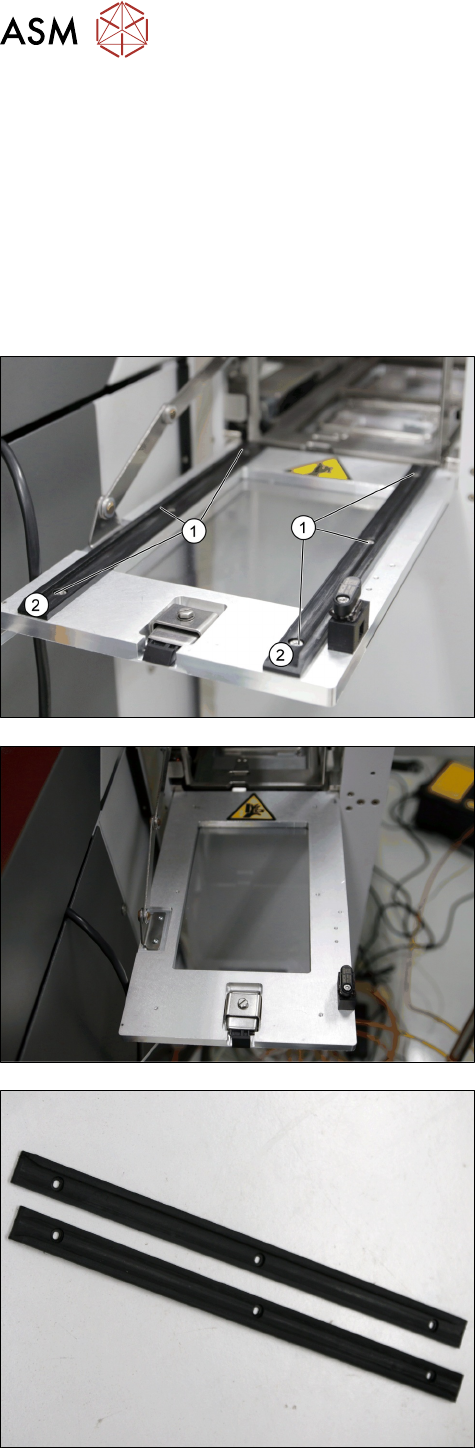

3.8 Replacing the Door Guide Strip
Parts, Equipment and Tools
●
Standard tools
●
Door guide strip [03133492-xx]
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}11].
In case remove the tower from the machine (see 2.1.2 "Removing Tower from Machine" [}21])
► Open the door.
► Remove the six screws DIN EN ISO 7380-M3 x 6-
A2-70 [03045194-xx] (1).
► Remove the two Door guide strips [03133492-xx] (2).
Door without Door guide strips [03133492-xx].
Door guide strips [03133492-xx]
