3 Tower Mechanics
3.12 Replacing the Tower Buffer
56 Service Manual SIPLACE JTF-ML2 08/2017
Tray Guide top-R [03134912-xx]
Installation
► Follow the removal instructions in reverse order for installation.
3.12 Replacing the Tower Buffer
Parts, Equipment and Tools
●
Standard tools
●
Tower buffer [03129031-xx]
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}11].
► Remove the tower from the machine (see 2.1.2 "Removing Tower from Machine" [}21])

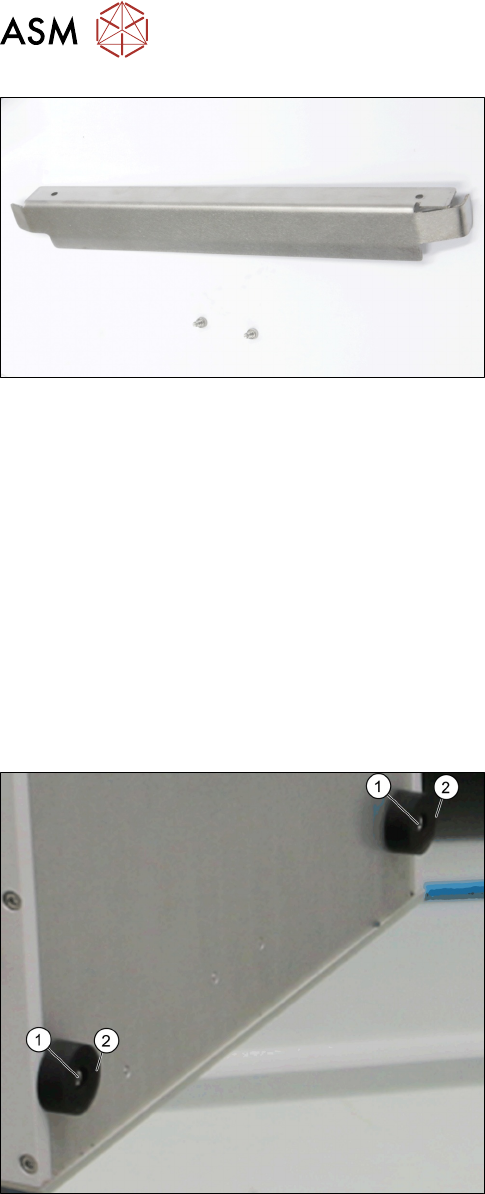

► Remove the two screws ISO 4762 - M 6 x 16-
A2-70 [03042573-xx]-(1).
► Remove the two Tower buffer [03129031-xx] (2).
Installation
► Follow the removal instructions in reverse order for installation.
3 Tower Mechanics
3.13 Removing the Dual Kicker and Dismantling Parts
Service Manual SIPLACE JTF-ML2 08/2017 57
3.13 Removing the Dual Kicker and Dismantling Parts
Parts, Equipment and Tools
●
Standard tools
●
Dual kicker [03155270-xx]
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}11].
► Remove the top cover (see 2.1.3 "Removing Tower Top Cover" [}25]).

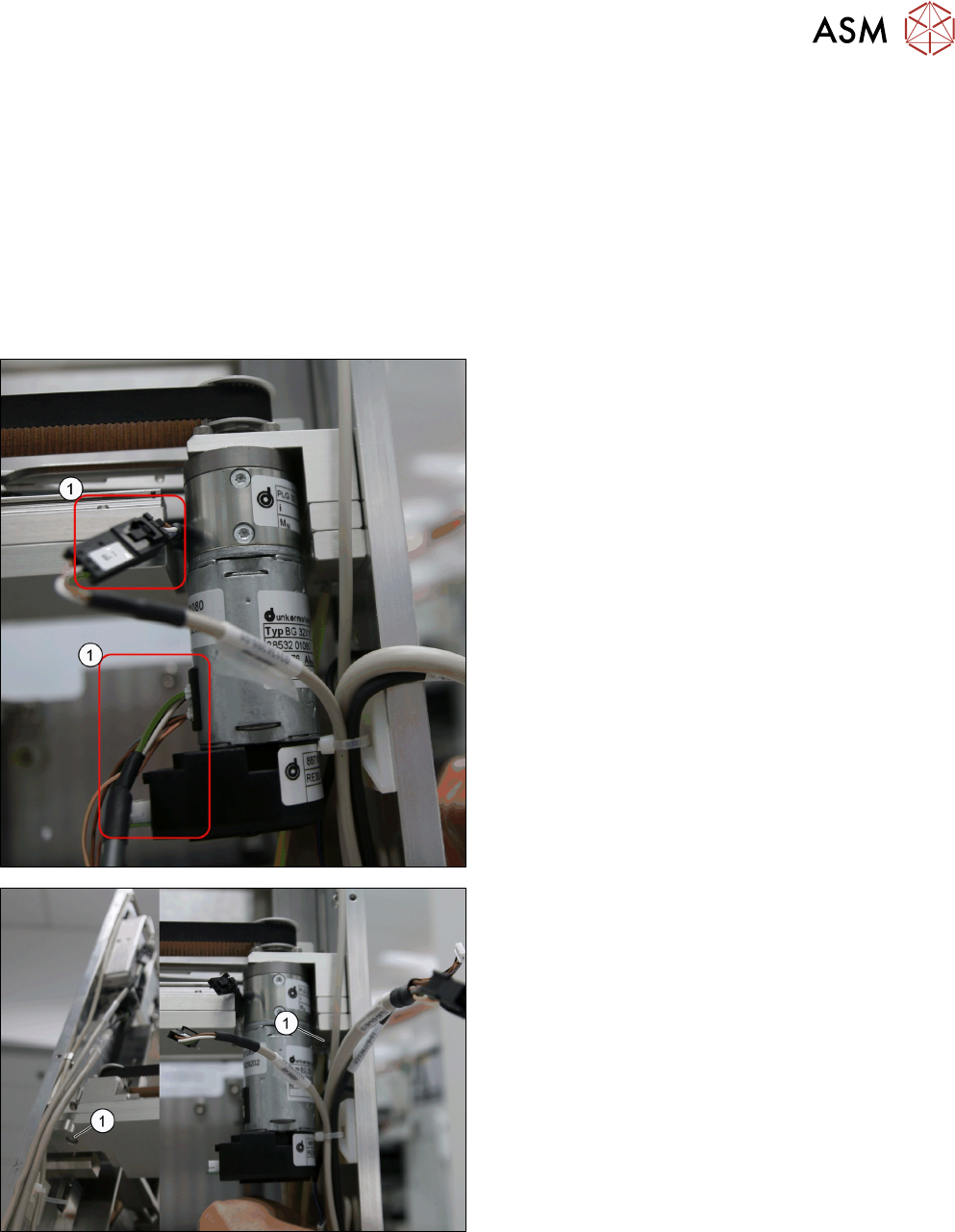

► Remove the sensor cable from X18 (1) from the
BG32x10 BLDC motor w/ gearbox encoder
[03127773-xx].
► Remove the two screws ISO 4762 - M 4 x 12-
A2-70 [03042553-xx] (1) from the Belt kicker
base 2 [03153357-xx].
► Remove the Dual Kicker [03155270-xx] from the
tower.
3 Tower Mechanics
3.13 Removing the Dual Kicker and Dismantling Parts
58 Service Manual SIPLACE JTF-ML2 08/2017

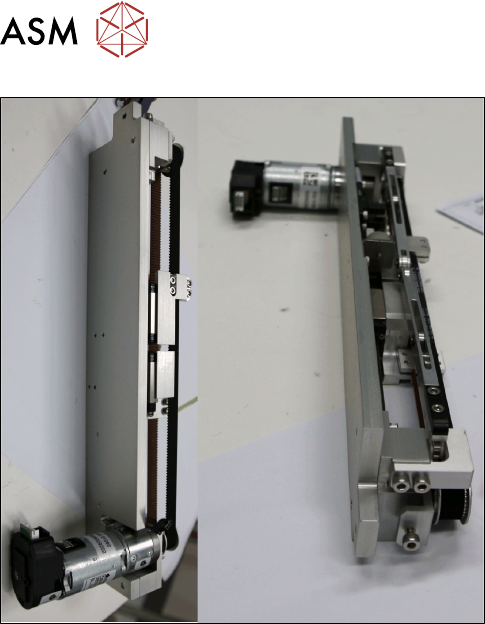

Dual Kicker [03155270-xx]
► To do further work on the Dual Kicker [03155270-xx] place it on a stable surface like a work
bench.
Installation
► Follow the removal instructions in reverse order for installation.
See also
2 Replacing the Kicker Tip Test [}59]
2 Replacing the Driven Pulley [}60]
2 Replacing the Dual Kicker Timing Belt [}62]
2 Replacing the Motor Sub-Assembly [}63]
