5 Electrics 5.11 Replacing Slot Sensor w/ Connector 140 Service Manual SIPLACE JTF-ML2 08/2017 Installation ► Follow the removal instructions in reverse order for installation. Also observe the following in- structions: …
5 Electrics
5.11 Replacing Slot Sensor w/ Connector
Service Manual SIPLACE JTF-ML2 08/2017 139

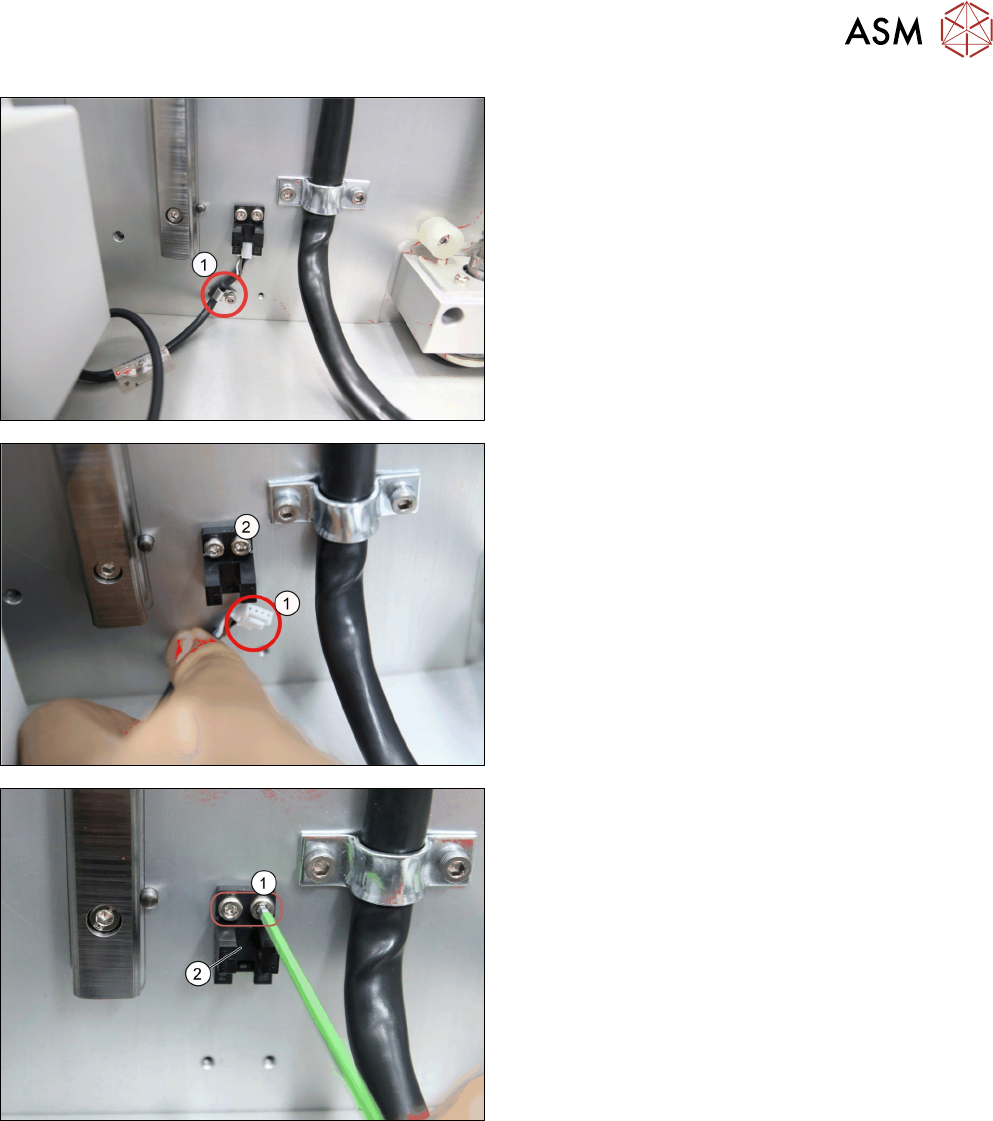

► Remove the cable holder (1).
► Unplug the connector (1) from the slot sensor w/
connector [03145975-xx] (2).
► Remove the two screws (1).
► Remove the slot sensor w/ connector
[03145975-xx] (2).
5 Electrics
5.11 Replacing Slot Sensor w/ Connector
140 Service Manual SIPLACE JTF-ML2 08/2017
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following in-
structions:

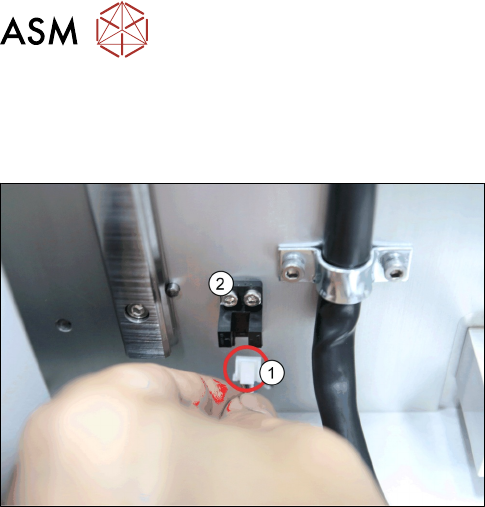

► Reconnect the connector (1) to the slot sensor w/
connector [03145975-xx] (2) as shown in the pic-
ture.
6 Magazine
5.11 Replacing Slot Sensor w/ Connector
Service Manual SIPLACE JTF-ML2 08/2017 141
6 Magazine

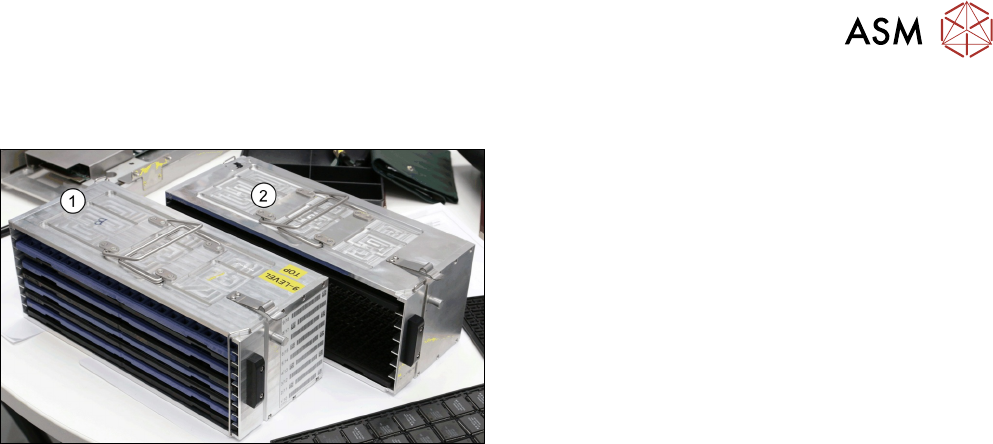

1. JTF-ML2 cassette 9 [03147148-xx]
2. JTF-ML2 cassette 7 [03147147-xx]
The following steps work for the two types of cassette accordingly.
