2 General Tasks
2.1 Hardware Tasks
20 Service Manual SIPLACE JTF-ML2 08/2017
► Pull the conveyor out.
► Loosen the screw (2) at conveyor pivot (1).
► (3) Push the conveyor pivot until end position
away from the tower.
► Fasten the screw (2) at conveyor pivot (1).
Installation
► Follow the removal instructions in reverse order for installation (See also 2.1.6 "Mounting the
Conveyor" [}29]).
► Extent or retract the conveyor pivot.
2 General Tasks
2.1 Hardware Tasks
Service Manual SIPLACE JTF-ML2 08/2017 21

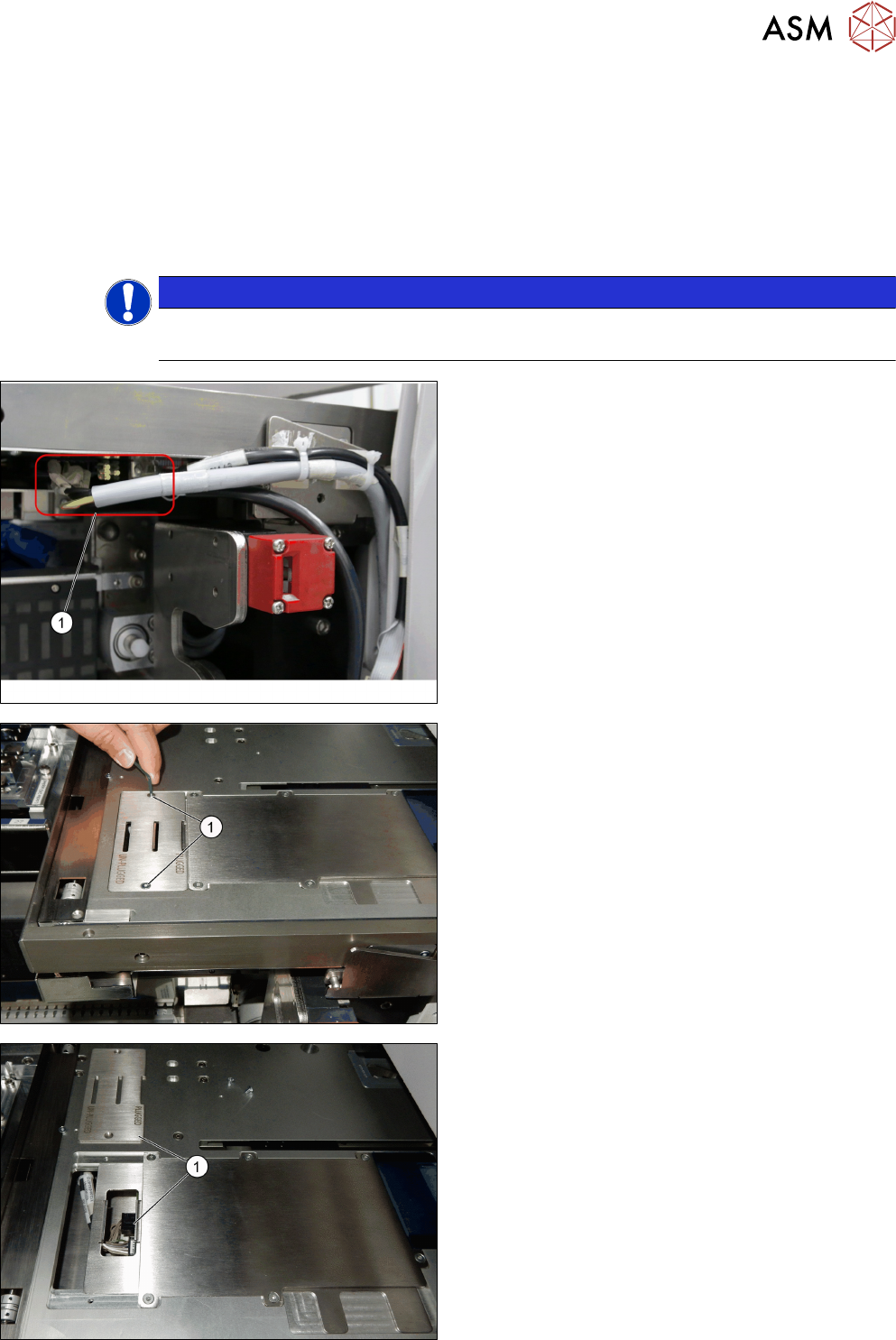

2.1.2 Removing Tower from Machine
Parts, Equipment and Tools
●
Standard tools
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}11].
NOTICE
Cassettes
Make sure all cassettes are removed from the tower before powering down.
► Unplug the cables from the connectors X2.COTI1
and X4.COTI1 in the conveyor base of the
SIPLACE JTF-ML2 (1).
► Remove the two screws ISO 10642 - M3x6-
A2-70 [03082814-xx] (1).
► Remove the PCBA position Cover [03148885-xx]
(1).
2 General Tasks
2.1 Hardware Tasks
22 Service Manual SIPLACE JTF-ML2 08/2017

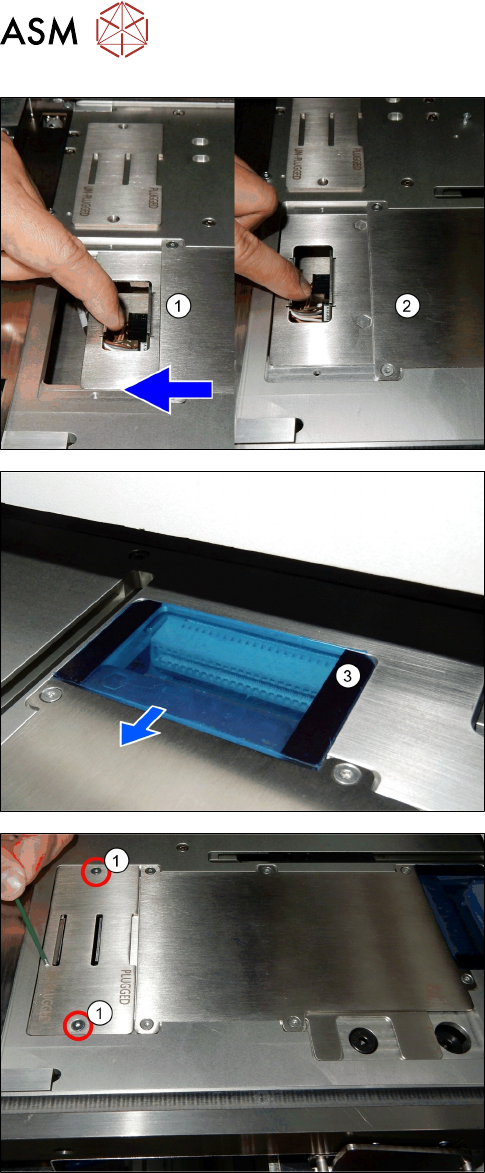

► Pull the PCB mounting part [03138496-xx] (1) to-
wards the machine.
ð The PCB mounting part [03138496-xx]
changes from plugged to unplugged position
(2).
The power is disconnected (3).
► Reinsert the PCBA position Cover [03148885-xx].
► Fix the two screws ISO 10642 - M3x6-A2-70
[03082814-xx] (1).
