4 Conveyor Mechanics

4.8 Replacing the Toothed Belt

114 Service Manual SIPLACE JTF-ML2 08/2017

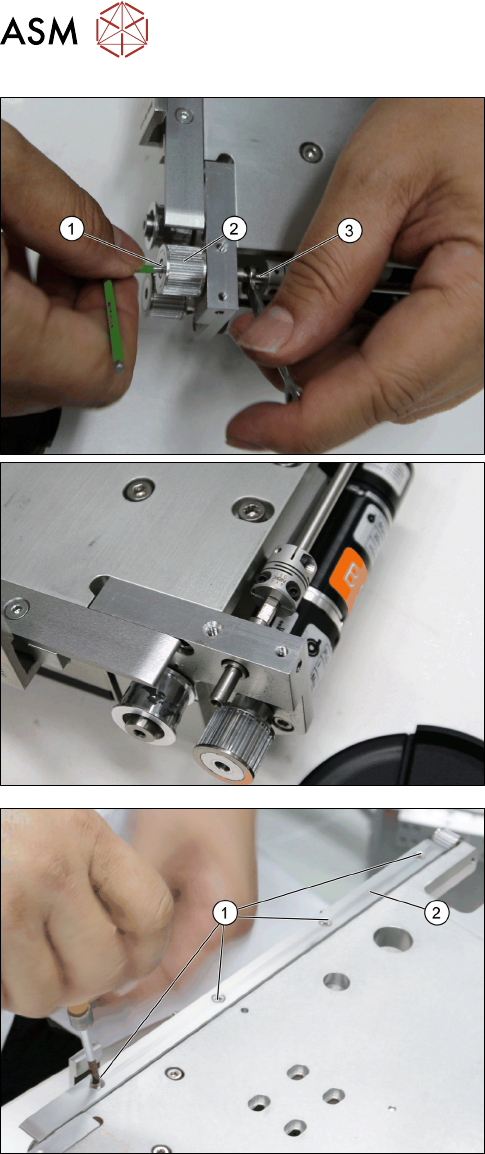

► Remove the screw ISO 4762 - M 3 x 6-A2-70

[03042541-xx] (1) while holding the conveyor

shaft (3) with a open ended wrench.

► Remove the Driving pulley S2MZ26 [03128931-

xx] (2).

► Remove the four screws [ISO 10642 - M3x6-

A2-70 [03082814–xx] (1).

► Remove the Belt support [03133050-xx] (2).

4 Conveyor Mechanics

4.8 Replacing the Toothed Belt

Service Manual SIPLACE JTF-ML2 08/2017 115

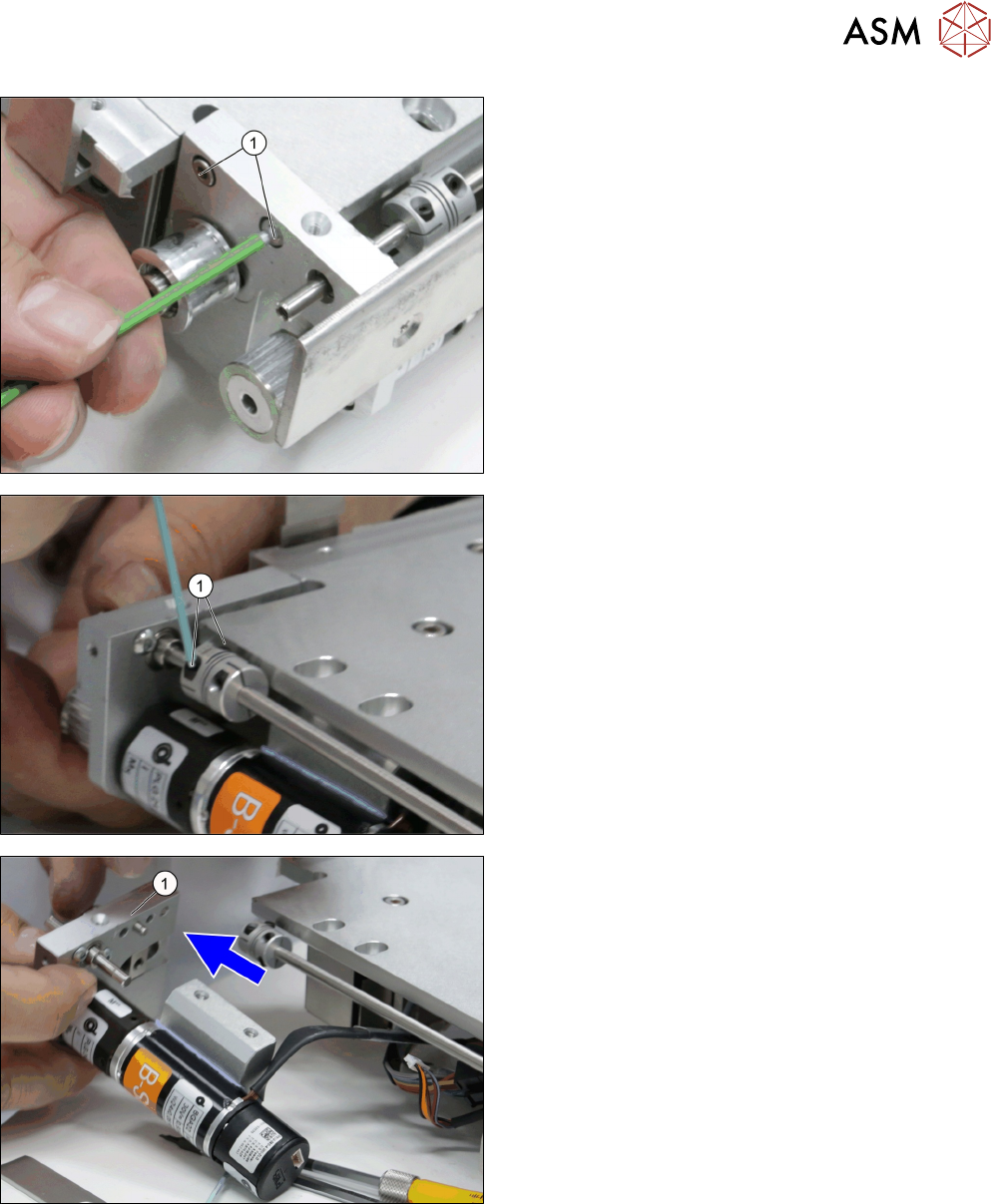

► Remove the two screws ISO 4762 - M 3 x 12-

A2-70 [03042544-xx].

► Loosen the two screws of the Single Disk flexible

Coupling 4x4 [03146598-xx].

► Carefully draw the Conveyor driver unit

[03132255-xx] (1) from the conveyor.

4 Conveyor Mechanics

4.8 Replacing the Toothed Belt

116 Service Manual SIPLACE JTF-ML2 08/2017

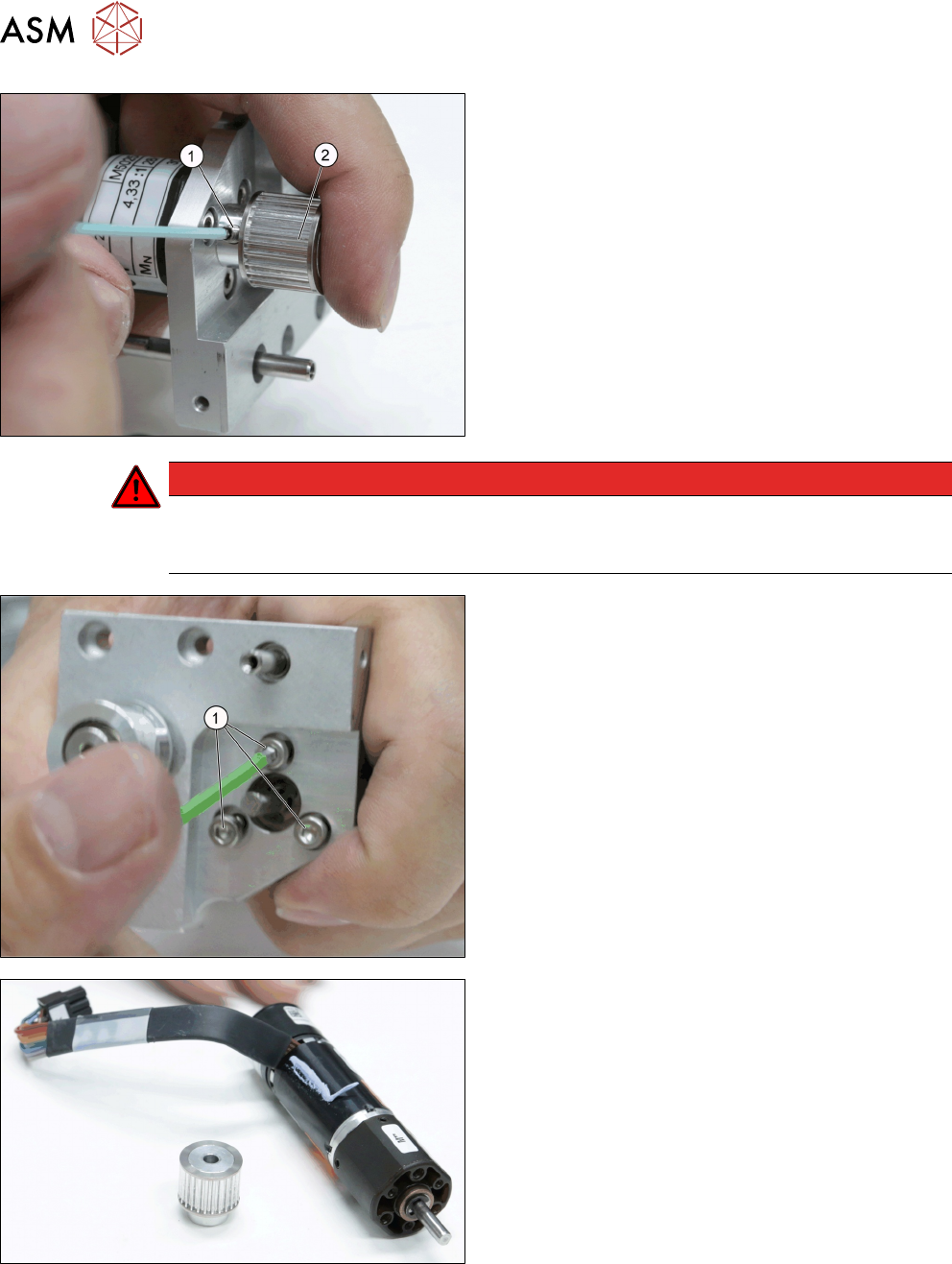

► Remove the screw DIN EN ISO 4026 - M3 x 4-

A2-21H [03025540-xx] (1) from the Conveyor

drive pulley S2MZ26 [03127981-xx] (2).

► Remove the Conveyor drive pulley S2MZ26

[03127981-xx] (1).

DANGER

Rubbing

Make sure there is sufficient gap between the pulley and the mounting when assembling to

prevent rubbing when the motor is in motion.

► Remove the three screws ISO 4762 - M 3 x 6-

A2-70 [03042541-xx] (1) from the Motor Assem-

bly, BLDCmotor w/ encoder,gearbox [03146371-

xx].

► Remove the motor Assembly, BLDCmotor w/ en-

coder,gearbox [03146371-xx].
