4 Conveyor Mechanics
4.8 Replacing the Toothed Belt
Service Manual SIPLACE JTF-ML2 08/2017 117
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following in-
structions:
► Please consider the correct angle of the cable (2)
during reassembling as well as the correct screw
holes (1).
NOTICE
Heat transer interface sheet
Push tight when assembling back.
4 Conveyor Mechanics
4.8 Replacing the Toothed Belt
118 Service Manual SIPLACE JTF-ML2 08/2017
4.8.3 Replacing the Single Disk flexible Coupling
Parts, Equipment and Tools
●
Standard tools
●
Single disk flexible coupling 4x4 [03146598-xx]
Removal
► Remove the conveyor (See Removing SIPLACE JTF-ML2 Conveyor from Machine).
► Follow the instructions to get to Conveyor driver unit [03132255--xx] parts ( See 4.8 "Repla-
cing the Toothed Belt" [}108]).

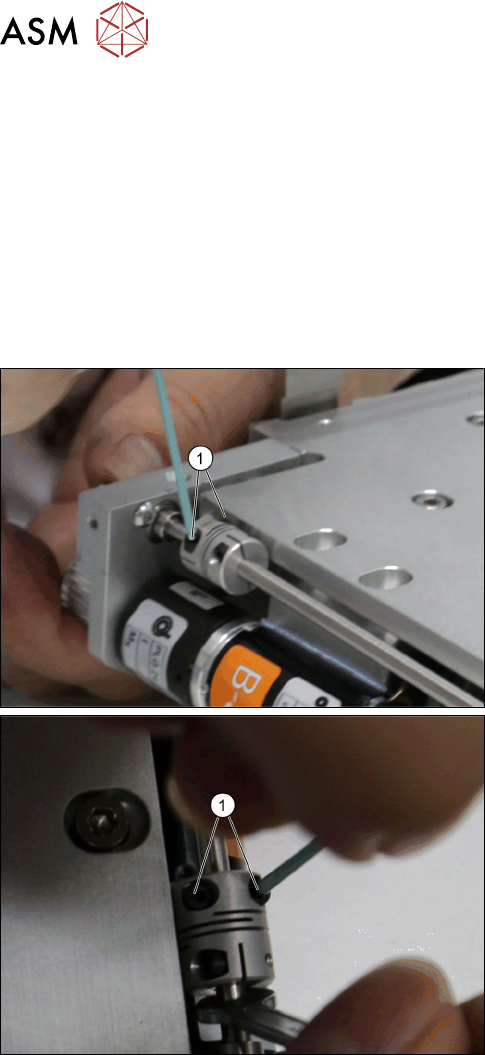

► Loosen the four screws of the Single Disk flexible
Coupling 4x4 [03146598-xx] (1).
4 Conveyor Mechanics
4.8 Replacing the Toothed Belt
Service Manual SIPLACE JTF-ML2 08/2017 119

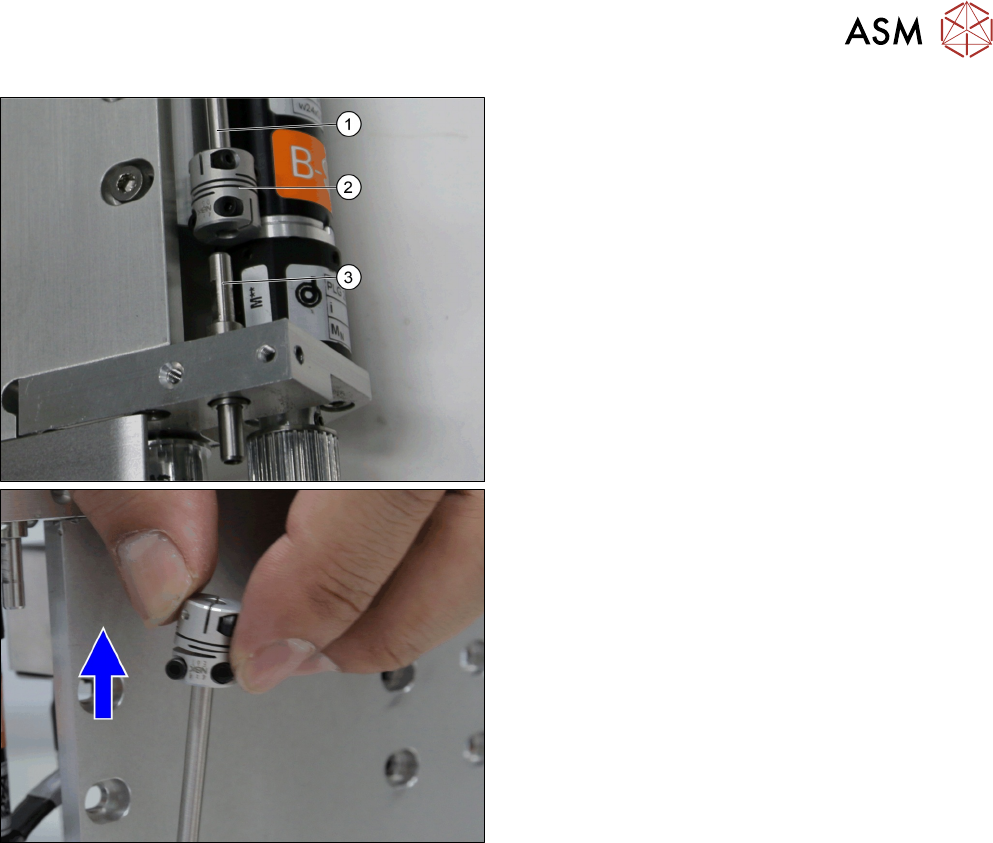

► Pull the Conveyor shaft [03127980-xx] (3) and
Transmission shaft [03145809-xx (1) from the
Single Disk flexible Coupling 4x4 [03146598-xx]
(2).
