2 General Tasks 2.1 Hardware Tasks Service Manual SIPLACE JTF-ML2 08/2017 27 2.1.4 Removing Side Cover Parts, Equipment and Tools ● Standard tools Removal ► Switch off the machine, disconnect it from the power supply and…
2 General Tasks
2.1 Hardware Tasks
26 Service Manual SIPLACE JTF-ML2 08/2017

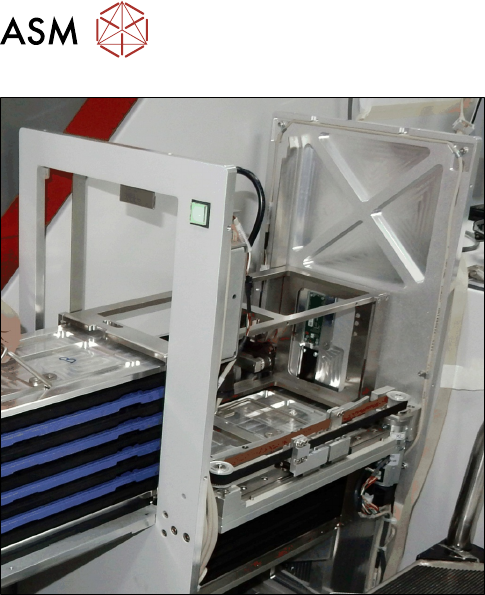

► Remove the Tower top Cover [03135837-xx].
Installation
► Follow the removal instructions in reverse order for installation.
2 General Tasks
2.1 Hardware Tasks
Service Manual SIPLACE JTF-ML2 08/2017 27
2.1.4 Removing Side Cover
Parts, Equipment and Tools
●
Standard tools
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}11].
► Remove the tower from the machine (See 2.1.2 "Removing Tower from Machine" [}21])

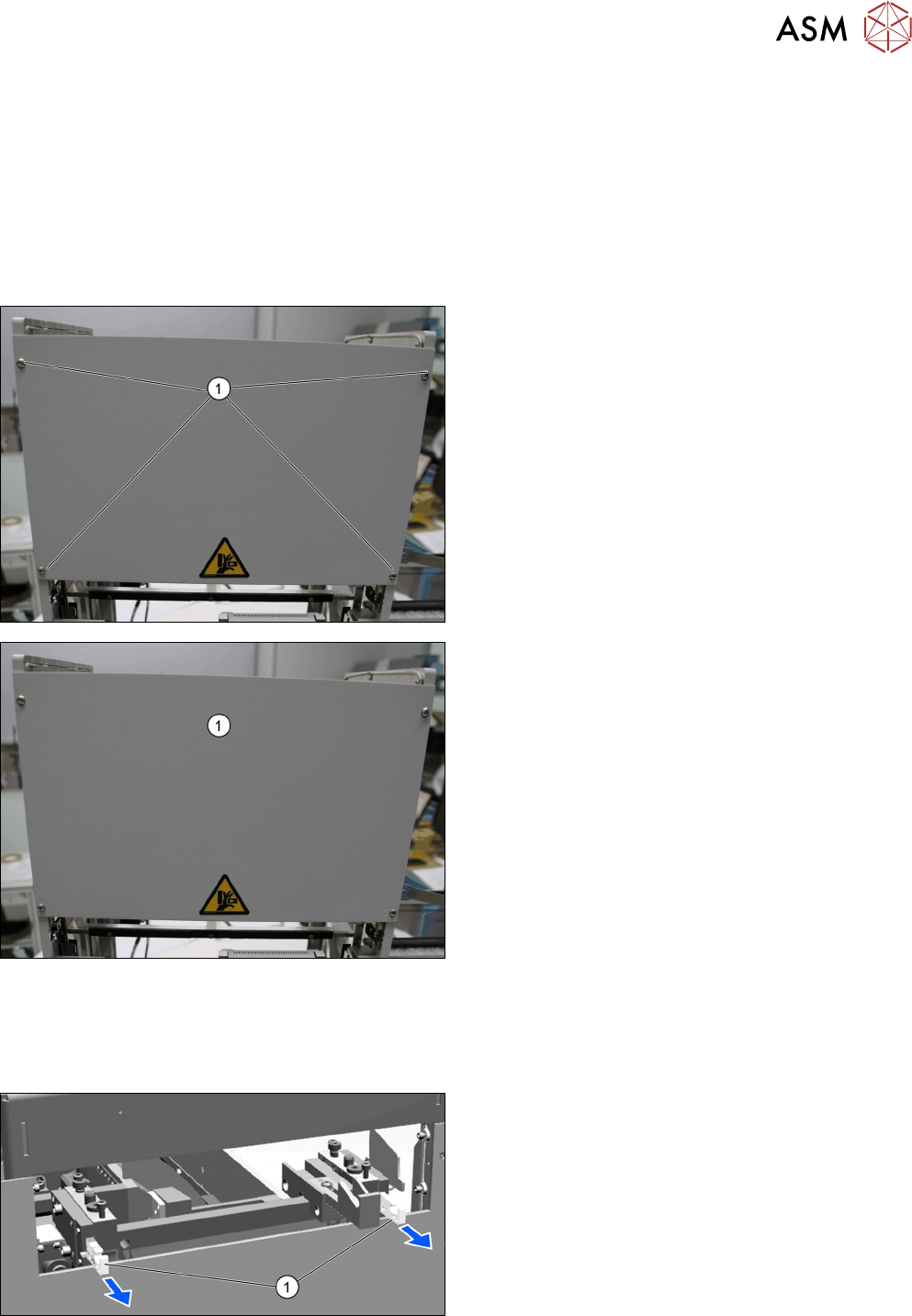

► Remove the four screws ISO 7380-2 M 4 x 6-
A2-70 [03099577-xx] (1).
► Remove Tower side Cover [03129023-xx] (1).
Installation
► Follow the removal instructions in reverse order for installation.
2.1.5 Mounting the Tower
Pulling out the Hooks
► Pull out both hooks(1) at the SIPLACE JTF‑ML2
adapter.
2 General Tasks
2.1 Hardware Tasks
28 Service Manual SIPLACE JTF-ML2 08/2017

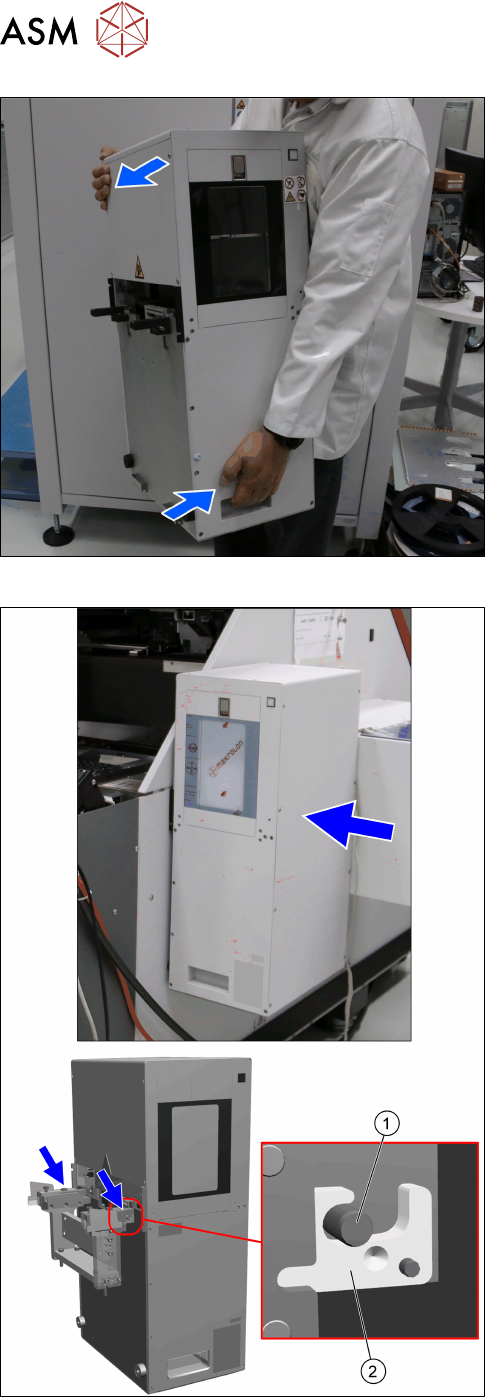

Fig.10: Holding the tower
► Hold the SIPLACE JTF‑ML2 with one hand on
the bottom handle and one hand on top of the
tower.
Fig.11: Hooking in the tower
► Hook in the tower at the SIPLACE JTF‑ML2 ad-
apter.
The bolts(1) have to be at the hooks(2).
► Push the tower parallel in the machine.
