2 General Tasks 2.1 Hardware Tasks Service Manual SIPLACE JTF-ML2 08/2017 17 2 General Tasks Parts, Equipment and Tools ● Allen key, brush, screwdriver set ● Lint free clothes [03082092‑xx] ● Grease: KLUBER BEM 34-132 ● …
1 Introduction
1.5 Abbreviations
16 Service Manual SIPLACE JTF-ML2 08/2017
2 General Tasks
2.1 Hardware Tasks
Service Manual SIPLACE JTF-ML2 08/2017 17
2 General Tasks
Parts, Equipment and Tools
●
Allen key, brush, screwdriver set
●
Lint free clothes [03082092‑xx]
●
Grease: KLUBER BEM 34-132
●
Spring: UF16-15 [03146686‑xx]
●
Tweezers
2.1 Hardware Tasks
2.1.1 Removing Conveyor from Machine
Parts, Equipment and Tools
●
Standard tools
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}11].
NOTICE
Cassettes
Make sure all cassettes are removed from the tower before powering down.

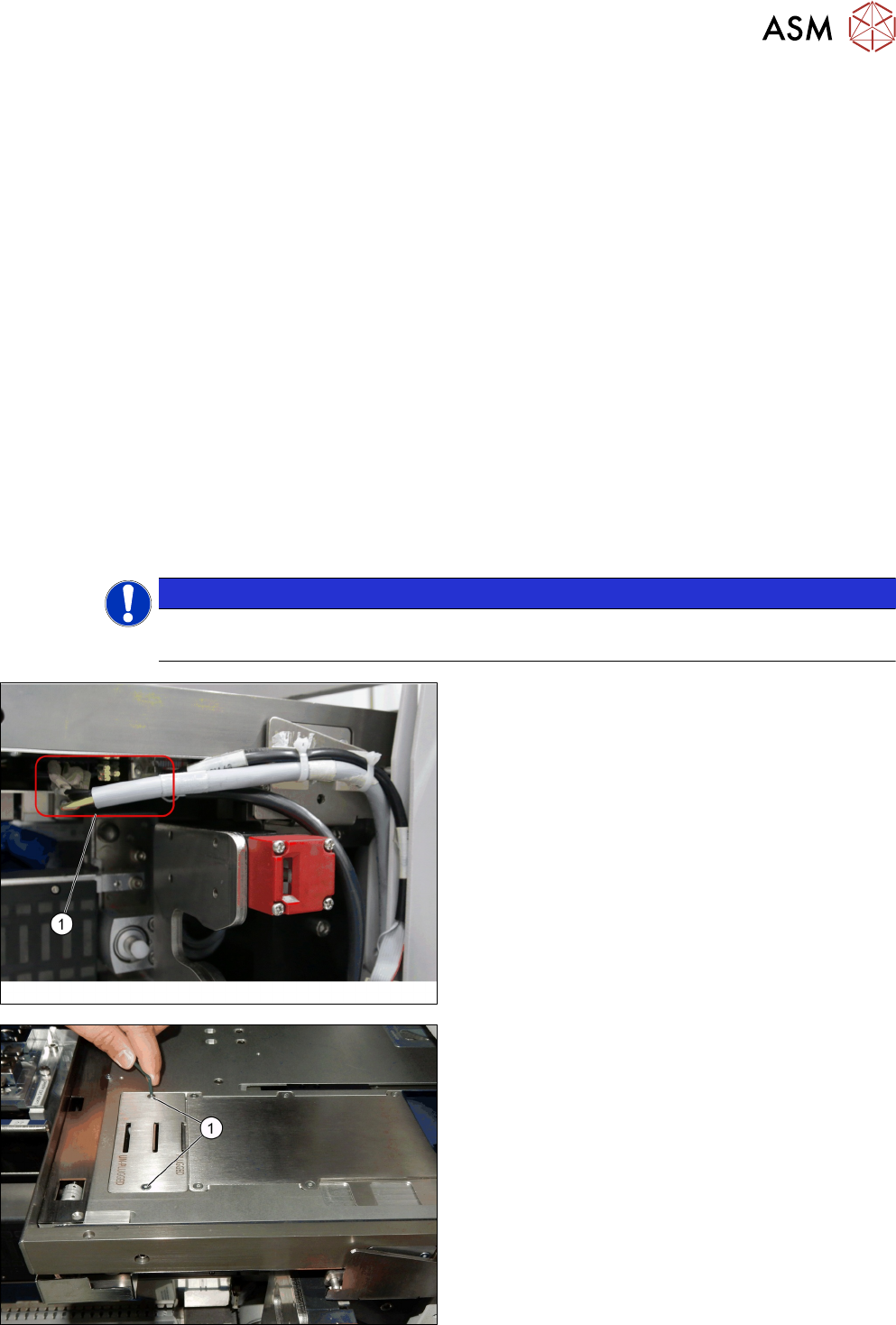

► Unplug the cables from the connectors X2.COTI1
and X4.COTI1 in the conveyor base of the
SIPLACE JTF-ML2 (1).
► Remove the two screws ISO 10642 - M3x6-
A2-70 [03082814-xx] (1).
2 General Tasks
2.1 Hardware Tasks
18 Service Manual SIPLACE JTF-ML2 08/2017
► Remove the PCBA position Cover [03148885-xx]
(1).
► Pull the PCB mounting part [03138496-xx] (1) to-
wards the machine.
ð The PCB mounting part [03138496-xx]
changes from plugged to unplugged position
(2).
NOTICE
Power connections
The PCB must be disconnected before removing the tower or the conveyor
The power is disconnected (3).
