4 Conveyor Mechanics 4.1 Replacing the Fitting Screw [03005652-xx] Service Manual SIPLACE JTF-ML2 08/2017 71 ► Reinsert the PCBA position Cover [03148885-xx]. ► Fix the two screws ISO 10642 - M3x6-A2-70 [03082814-xx] (1)…
4 Conveyor Mechanics
4.1 Replacing the Fitting Screw [03005652-xx]
70 Service Manual SIPLACE JTF-ML2 08/2017

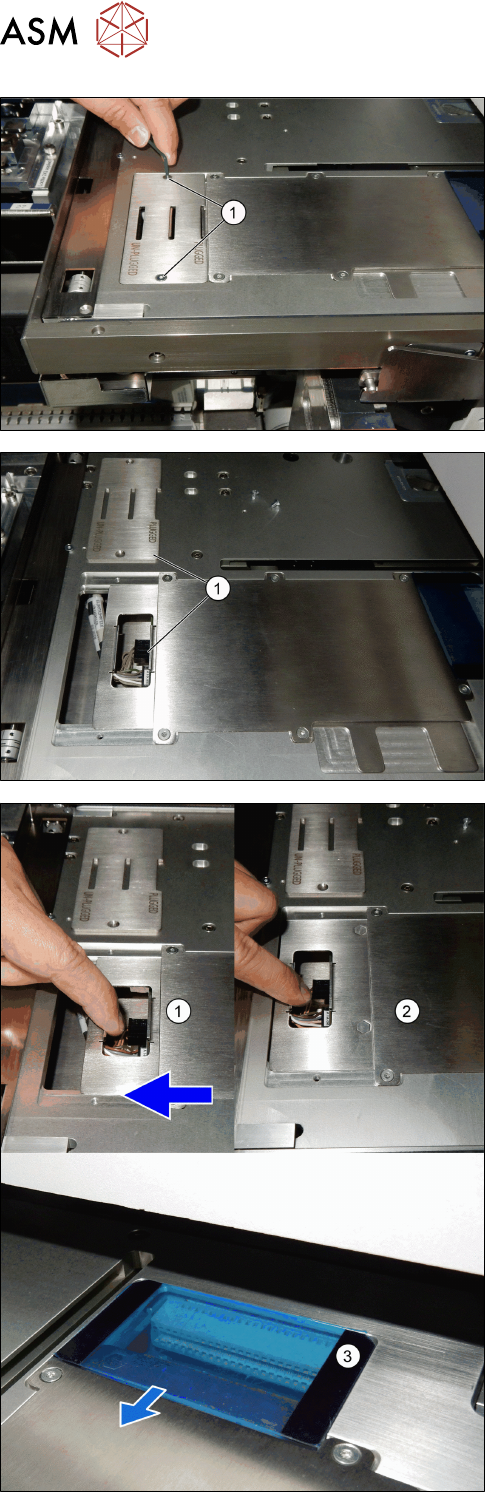

► Remove the two screws ISO 10642 - M3x6-
A2-70 [03082814-xx] (1).
► Remove the PCBA position Cover [03148885-xx]
(1).
► Pull the PCB mounting part [03138496-xx] (1) to-
wards the machine.
ð The PCB mounting part [03138496-xx]
changes from plugged to unplugged position
(2).
ð The power is disconnected (3).
4 Conveyor Mechanics
4.1 Replacing the Fitting Screw [03005652-xx]
Service Manual SIPLACE JTF-ML2 08/2017 71
► Reinsert the PCBA position Cover [03148885-xx].
► Fix the two screws ISO 10642 - M3x6-A2-70
[03082814-xx] (1).
The cover now stays in the unplugged position (2).
One of the two screws ISO 7379 - 10 x 25-12.9
[03005652-xx] (3) is accessible.
► Remove the two screws ISO 7379 - 10 x 25-12.9
[03005652-xx] (1).
Installation
► Follow the removal instructions in reverse order for installation.
4 Conveyor Mechanics
4.2 Removing the Conveyor Driver Unit and its Parts as Preparatory Steps
72 Service Manual SIPLACE JTF-ML2 08/2017
4.2 Removing the Conveyor Driver Unit and its Parts as
Preparatory Steps
Parts, Equipment and Tools
●
Standard tools
●
Conveyor Driver Unit [03132255-xx]
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}11].
► Remove the conveyor (See 2.1.1 "Removing Conveyor from Machine" [}17]).
► Remove the four screws DIN EN ISO 7380-M3 x
5-A2-70 [03045193-xx] (1).
► Remove the Conveyor motor cover [03145679-
xx] (2).
► Remove all the cables necessary.
► Remove the two screws ISO 4762 - M 4 x 8-
A2-70 [03042551-xx] (1), and the screw ISO
10642 - M3x6-A2-70 [03082814-xx] (2).
