4 Conveyor Mechanics 4.6 Replacing the E Clamper and Parts Service Manual SIPLACE JTF-ML2 08/2017 91 4.6 Replacing the E Clamper and Parts Parts, Equipment and Tools ● Standard tools ● E clamper complete [03147300-xx] Re…

4 Conveyor Mechanics

4.5 Replacing the PCBA Position Cover

90 Service Manual SIPLACE JTF-ML2 08/2017

► If you want to remove the conveyor from the

machine afterwards, pull the PCB mounting part

[03138496-xx] (1) towards you.

ð The PCB mounting part [03138496-xx]

changes from PLUGGED to UNPLUGGED

position (2).

► Ensure the PCB is disconnected (3).

► Leave the position as PLUGGED if you have no

further work to do.

Installation

► Reinsert the PCBA position Cover [03148885-xx].

► Fix the two screws ISO 10642 - M3x6-A2-70

[03082814-xx] (1).

ð The cover now stays in the UNPLUGGED

position (2).

ð One of the two screws ISO 7379 - 8 x 16-12.9

[03005644-xx] (3) is accessible.

► Or

ð The cover is still in PLUGGED position.

4 Conveyor Mechanics

4.6 Replacing the E Clamper and Parts

Service Manual SIPLACE JTF-ML2 08/2017 91

4.6 Replacing the E Clamper and Parts

Parts, Equipment and Tools

●

Standard tools

●

E clamper complete [03147300-xx]

Removal

► Switch off the machine, disconnect it from the power supply and secure it to prevent

unauthorized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}11].

► Remove the conveyor from the machine (see 2.1.1 "Removing Conveyor from Ma-

chine" [}17]).

► Remove the Conveyor driver unit from the conveyor (see 4.2 "Removing the Conveyor Driver

Unit and its Parts as Preparatory Steps" [}72]).

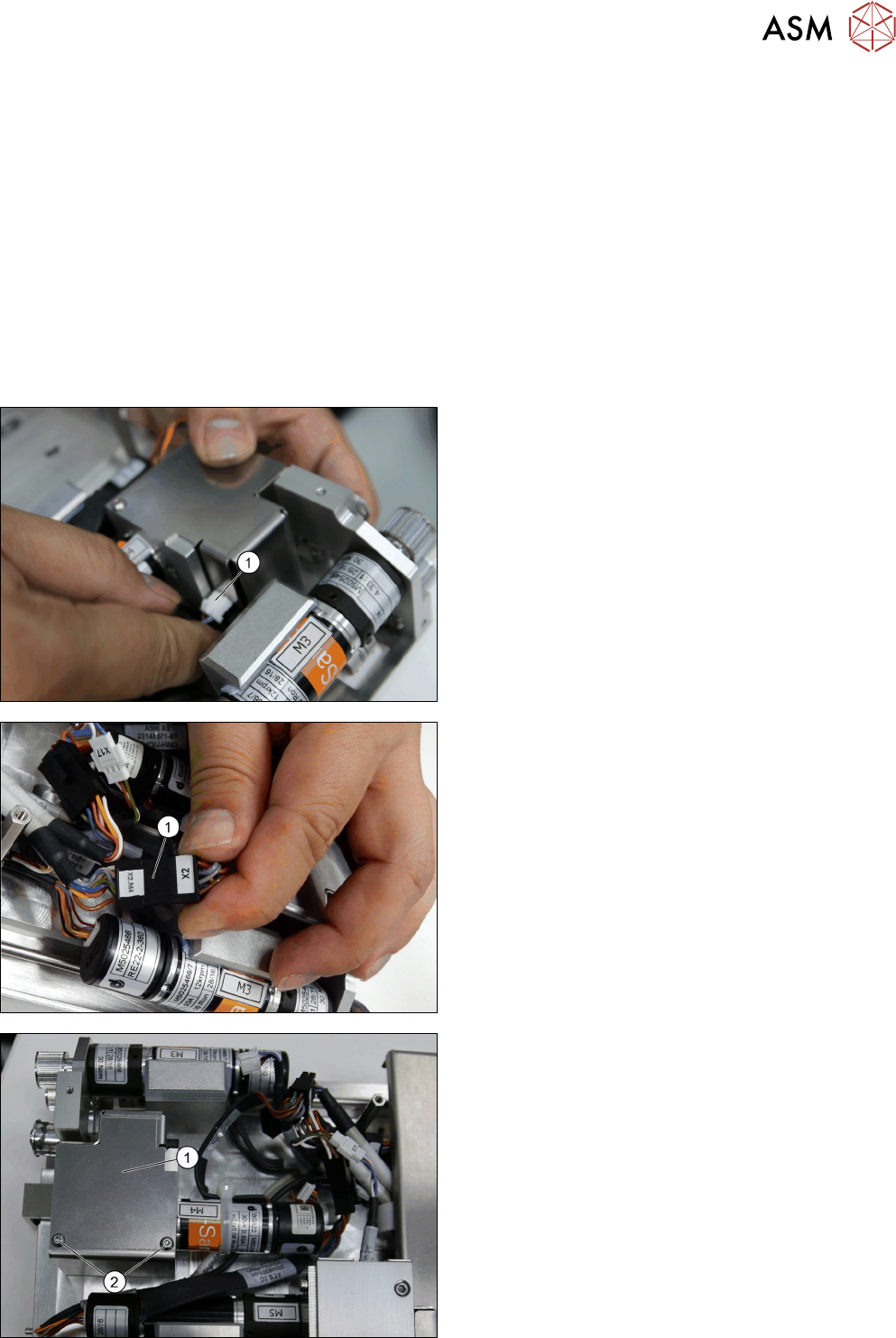

► Make sure to remove the connector for the home

sensor (1).

► Make sure to remove the connector for the motor

(1).

► Remove the two screws DIN EN ISO 7380-M3 x

5-A2-70 [03045193-xx] (2).

► Remove the Clamper cover [03145970-xx] (1).

4 Conveyor Mechanics

4.6 Replacing the E Clamper and Parts

92 Service Manual SIPLACE JTF-ML2 08/2017

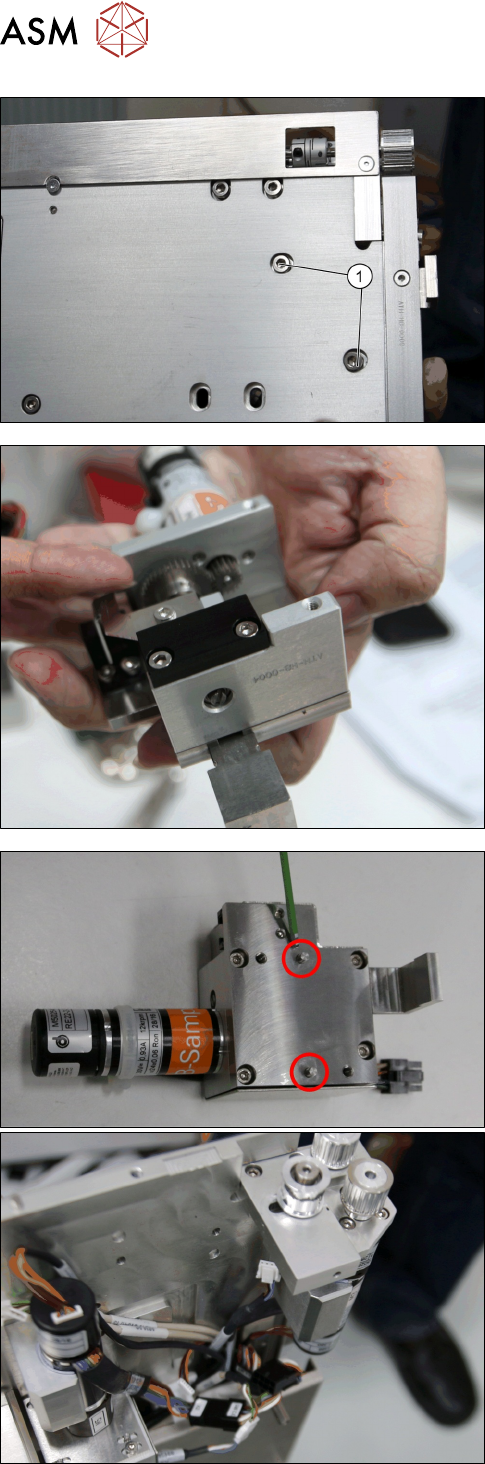

► Remove the two screws ISO 4762 - M 4 x 8-

A2-70 [03042551-xx] (1).

► Remove the E clamper cpl. [03147300-xx].

► Check the two dowel pins.
