2 General Tasks 2.1 Hardware Tasks Service Manual SIPLACE JTF-ML2 08/2017 25 2.1.3 Removing Tower Top Cover Parts, Equipment and Tools ● Standard tools Removal ► Switch off the machine, disconnect it from the power suppl…
2 General Tasks
2.1 Hardware Tasks
24 Service Manual SIPLACE JTF-ML2 08/2017
► Grab the tower with one hand at the handle on
the bottom and the other hand on top of the
tower.

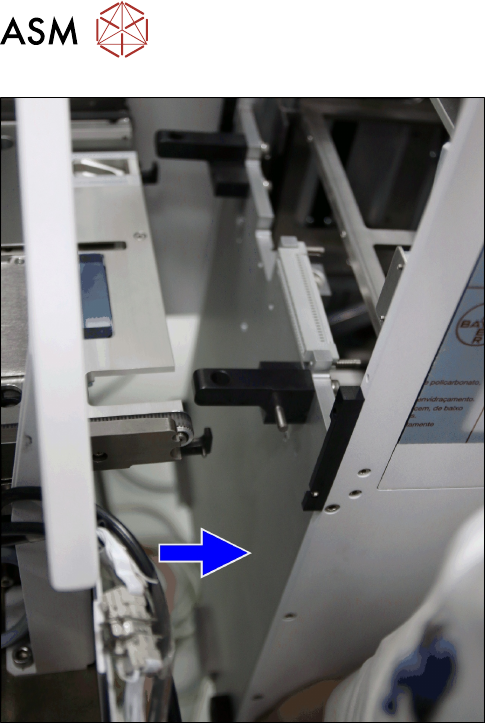

► Pull the Tower carefully parallel from the slidings
out of the machine.
Installation
► Follow the removal instructions in reverse order for installation (See also 2.1.5 "Mounting the
Tower" [}27]).
2 General Tasks
2.1 Hardware Tasks
Service Manual SIPLACE JTF-ML2 08/2017 25
2.1.3 Removing Tower Top Cover
Parts, Equipment and Tools
●
Standard tools
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}11].
► Remove the tower from the machine (See 2.1.2 "Removing Tower from Machine" [}21])

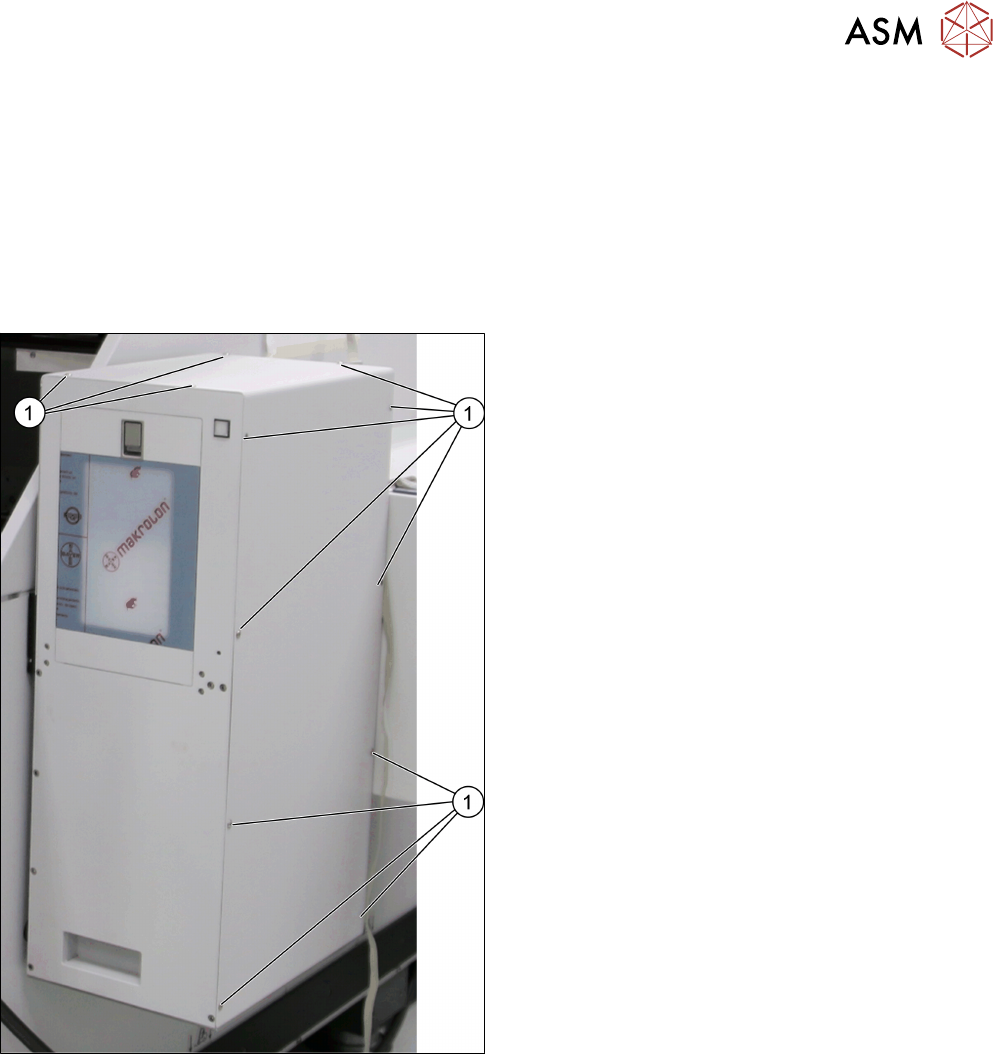

► Remove the 12 screws (ISO 7380-2 M 4 x 6-
A2-70) [03099577-xx] (1).
2 General Tasks
2.1 Hardware Tasks
26 Service Manual SIPLACE JTF-ML2 08/2017
► Remove the Tower top Cover [03135837-xx].
Installation
► Follow the removal instructions in reverse order for installation.
