4 Conveyor Mechanics
4.8 Replacing the Toothed Belt
Service Manual SIPLACE JTF-ML2 08/2017 119
► Pull the Conveyor shaft [03127980-xx] (3) and
Transmission shaft [03145809-xx (1) from the
Single Disk flexible Coupling 4x4 [03146598-xx]
(2).
4 Conveyor Mechanics
4.8 Replacing the Toothed Belt
120 Service Manual SIPLACE JTF-ML2 08/2017
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following in-
structions:

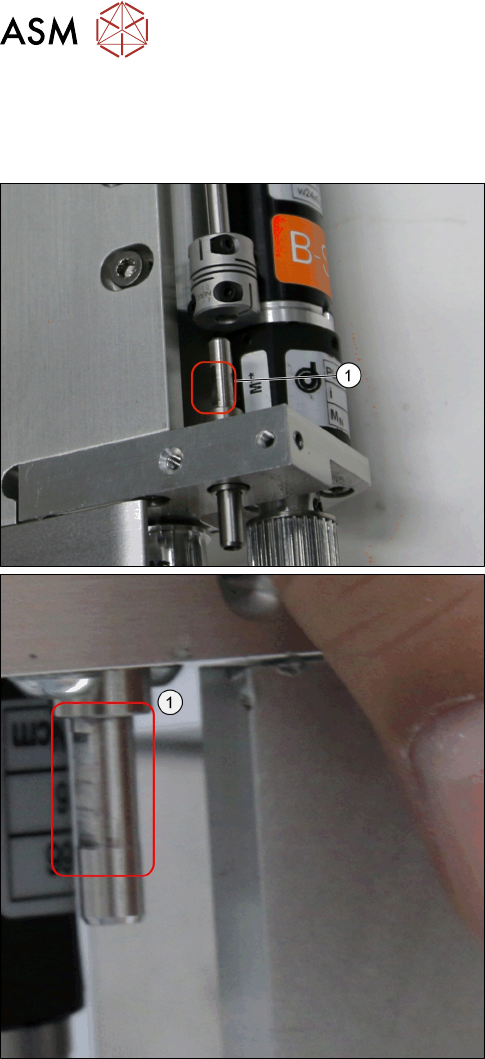

► Check the flatten space (1) when putting back to-
gether.
5 Electrics
5.1 Replacing the Slot Sensor
Service Manual SIPLACE JTF-ML2 08/2017 121
5 Electrics
5.1 Replacing the Slot Sensor
Parts, Equipment and Tools
●
Standard tools
●
Slot Sensor with connector [03145975-xx]
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}11].
► Remove the conveyor from the machine (see 2.1.1 "Removing Conveyor from Ma-
chine" [}17]).
► Remove the Conveyor driver unit from the conveyor (see 4.2 "Removing the Conveyor Driver
Unit and its Parts as Preparatory Steps" [}72]).

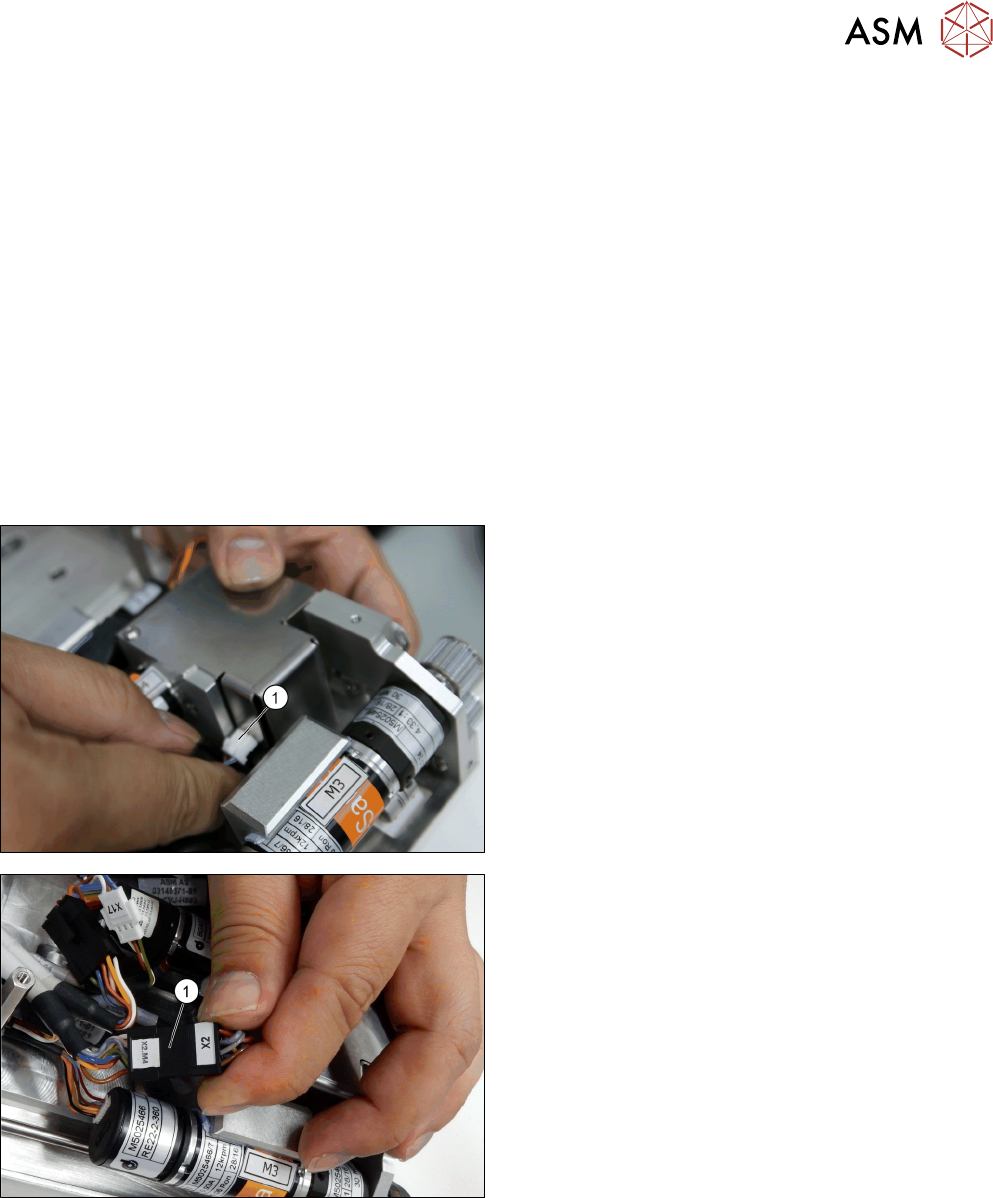

► Make sure you have removed the connector (1).
► Make sure you have removed the connector (1).
