4 Conveyor Mechanics 4.8 Replacing the Toothed Belt 116 Service Manual SIPLACE JTF-ML2 08/2017 ► Remove the screw DIN EN ISO 4026 - M3 x 4- A2-21H [03025540-xx] (1) from the Conveyor drive pulley S2MZ26 [03127981-xx] (2)…

4 Conveyor Mechanics

4.8 Replacing the Toothed Belt

Service Manual SIPLACE JTF-ML2 08/2017 115

► Remove the two screws ISO 4762 - M 3 x 12-

A2-70 [03042544-xx].

► Loosen the two screws of the Single Disk flexible

Coupling 4x4 [03146598-xx].

► Carefully draw the Conveyor driver unit

[03132255-xx] (1) from the conveyor.

4 Conveyor Mechanics

4.8 Replacing the Toothed Belt

116 Service Manual SIPLACE JTF-ML2 08/2017

► Remove the screw DIN EN ISO 4026 - M3 x 4-

A2-21H [03025540-xx] (1) from the Conveyor

drive pulley S2MZ26 [03127981-xx] (2).

► Remove the Conveyor drive pulley S2MZ26

[03127981-xx] (1).

DANGER

Rubbing

Make sure there is sufficient gap between the pulley and the mounting when assembling to

prevent rubbing when the motor is in motion.

► Remove the three screws ISO 4762 - M 3 x 6-

A2-70 [03042541-xx] (1) from the Motor Assem-

bly, BLDCmotor w/ encoder,gearbox [03146371-

xx].

► Remove the motor Assembly, BLDCmotor w/ en-

coder,gearbox [03146371-xx].

4 Conveyor Mechanics

4.8 Replacing the Toothed Belt

Service Manual SIPLACE JTF-ML2 08/2017 117

Installation

► Follow the removal instructions in reverse order for installation. Also observe the following in-

structions:

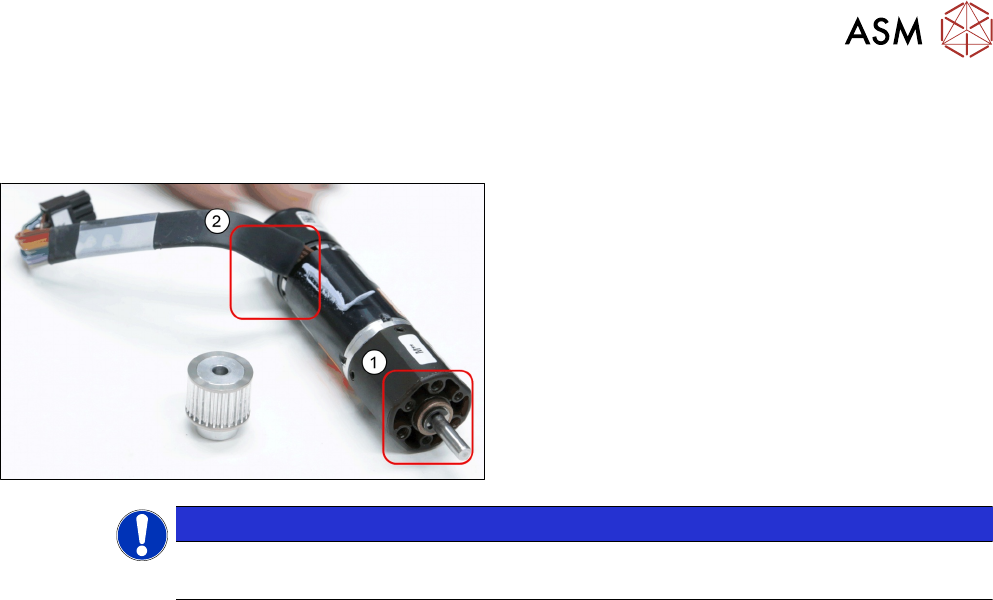

► Please consider the correct angle of the cable (2)

during reassembling as well as the correct screw

holes (1).

NOTICE

Heat transer interface sheet

Push tight when assembling back.
