6 Magazine
6.5 Replacing the Cassette Spring Lock
148 Service Manual SIPLACE JTF-ML2 08/2017
6.5 Replacing the Cassette Spring Lock
Parts, Equipment and Tools
●
Standard tools
●
Cassette spring lock [03134735-xx]
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation. Observe the instructions in section 1.2 "Preparatory Work..." [}11].
► Remove the Cassette from the tower (see 6.3 "Remove the Cassette from the SIPLACE JTF-
ML2" [}144]).

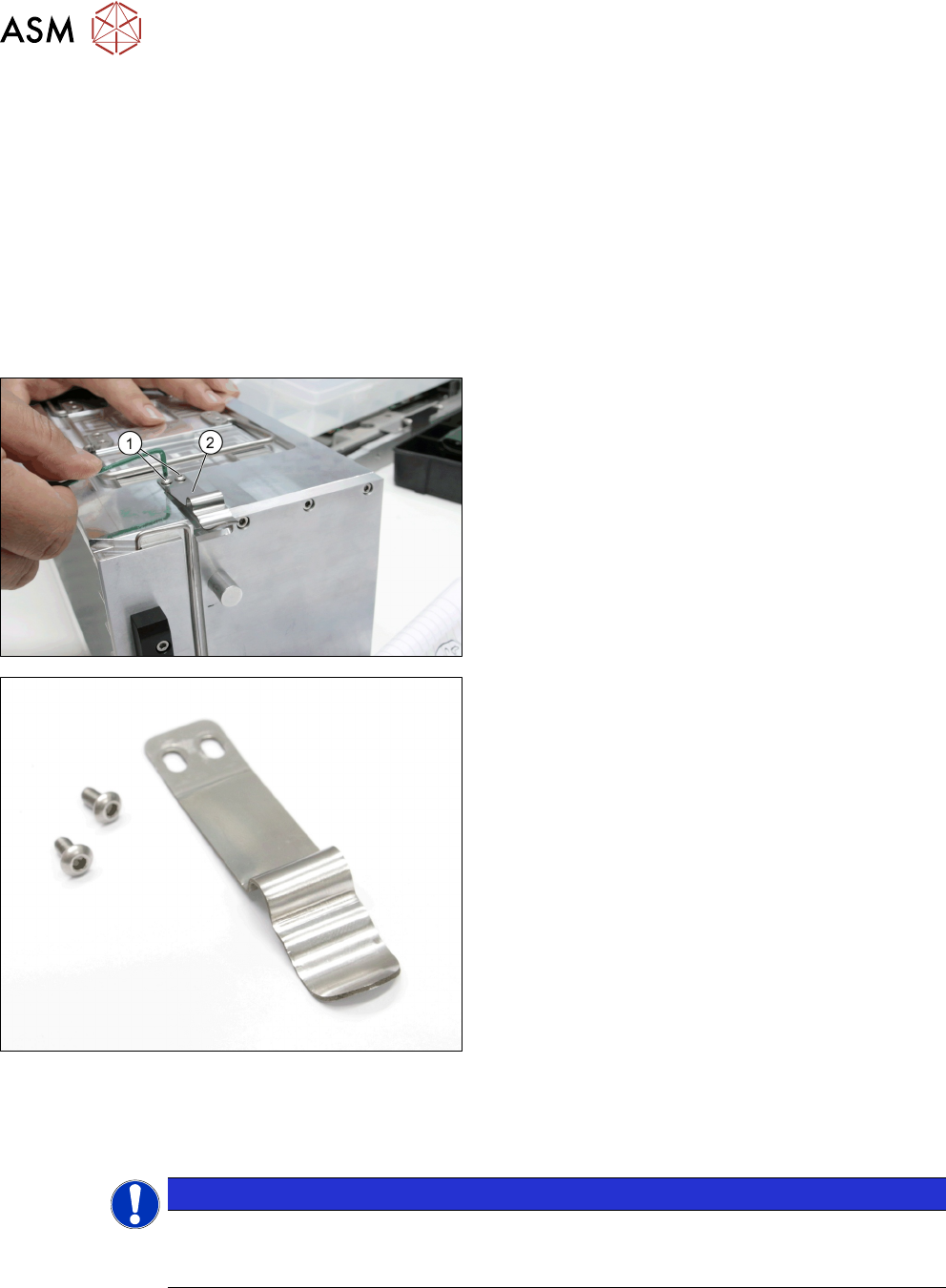

► Remove the two button head screws DIN EN ISO
7380-M3 x 6-A2-70 [03045194-xx] (1).
► Remove the Cassette Spring Lock [03134735-xx]
(2).
Cassette Spring Lock [03134735-xx]
Installation
► Follow the removal instructions in reverse order for installation.
► Install the spring in the most outer position.
NOTICE
Stuck Cassette
The cassette will be stuck in the magazine if the groove is sitting in the slot. Note that the
groove should not sit perfectly into the slot on the tower side.
