17 Issue 2 , Mar 18 Objective HO 4 : Create new version of BOM. BOM editing – new version release ❑ Right click then select edit BOM. ❑ The BOM can be edited by right click, in selection windows can be selected insert/re…

Issue 2, Mar 18

For DEK machine is only important the paste, click on paste and check whether field setup is set to

traceability.

Note: Field Setup activates or deactivates monitoring of material setup. That means if Setup is

set to none material is not checked. Setup field should be always set to traceability.

Note: iTAC is using the older terminology for naming of layer:

1. Component side (usually Top side)

2. Solder side (usually Bottom side)

3. Position independent

Issue 2, Mar 18

Objective HO 4: Create new version of BOM.

BOM editing – new version release

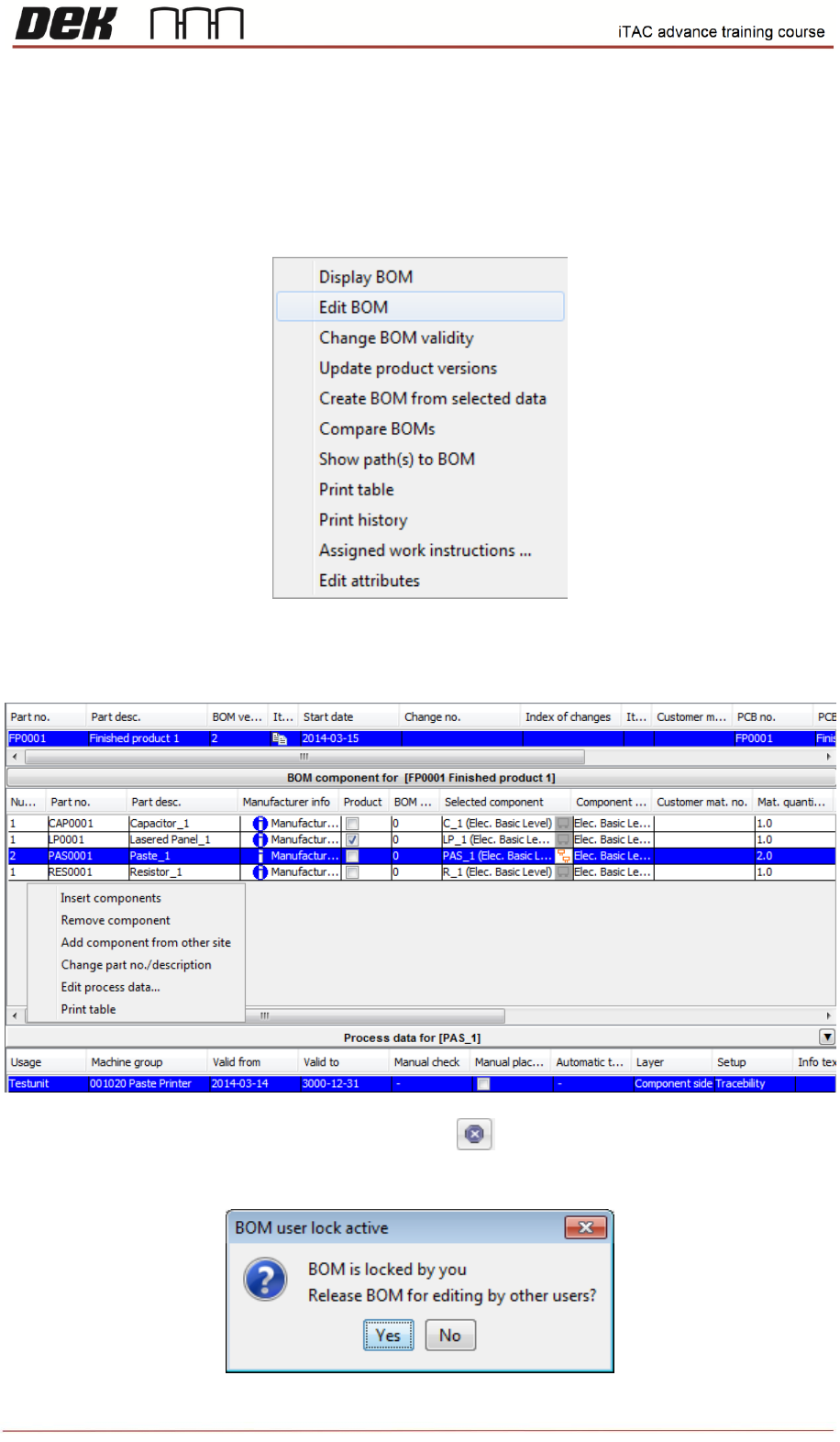

❑ Right click then select edit BOM.

❑ The BOM can be edited by right click, in selection windows can be selected insert/remove

component, edit process data, etc.

❑ Once required changes are done click on close in toolbar.

❑ Then will be prompted whether release BOM for editing by other users or not.

Issue 2, Mar 18

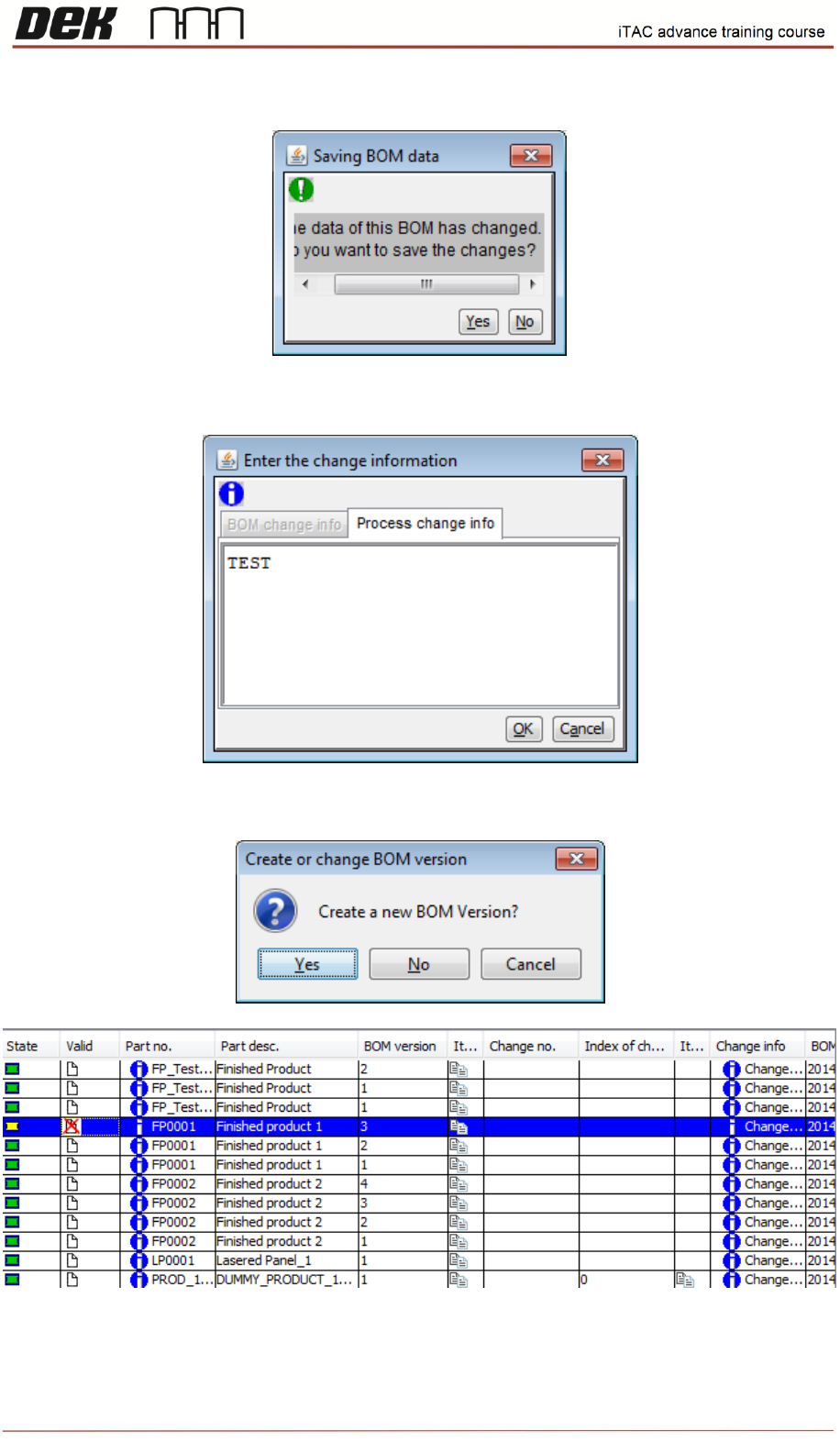

❑ The changes in BOM can be saved in following window.

❑ The information about changes may be added in following window.

❑ Finally new version can be created.

❑ To make new version valid right click and select version released.
