Issue 2, Mar 18

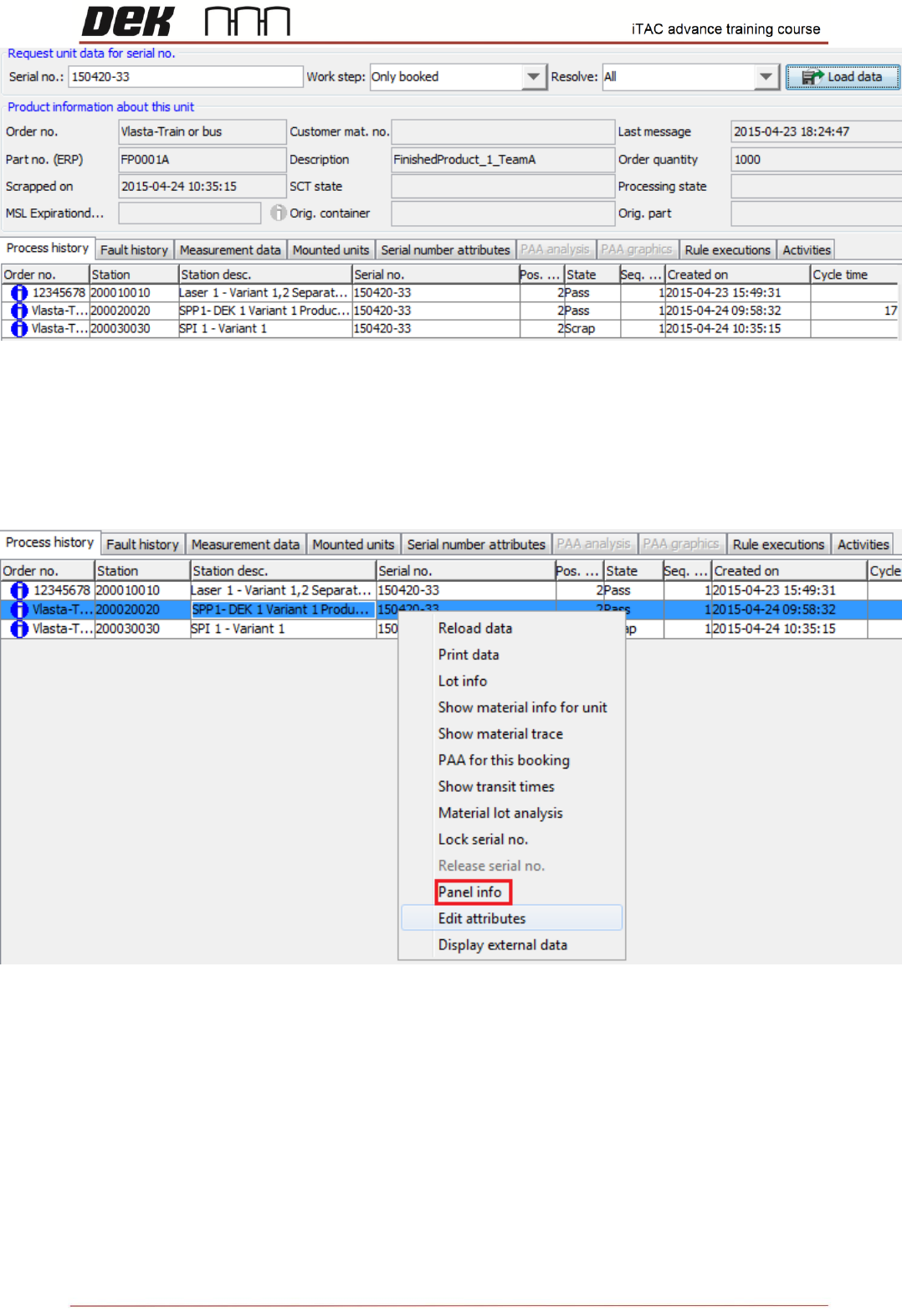

Process history tab shows the each work step done and its state.

If serial no. is part of multiple panel, the other serial numbers can be checked for each work step.

❑ Select particular work step

❑ Right click and select panel info

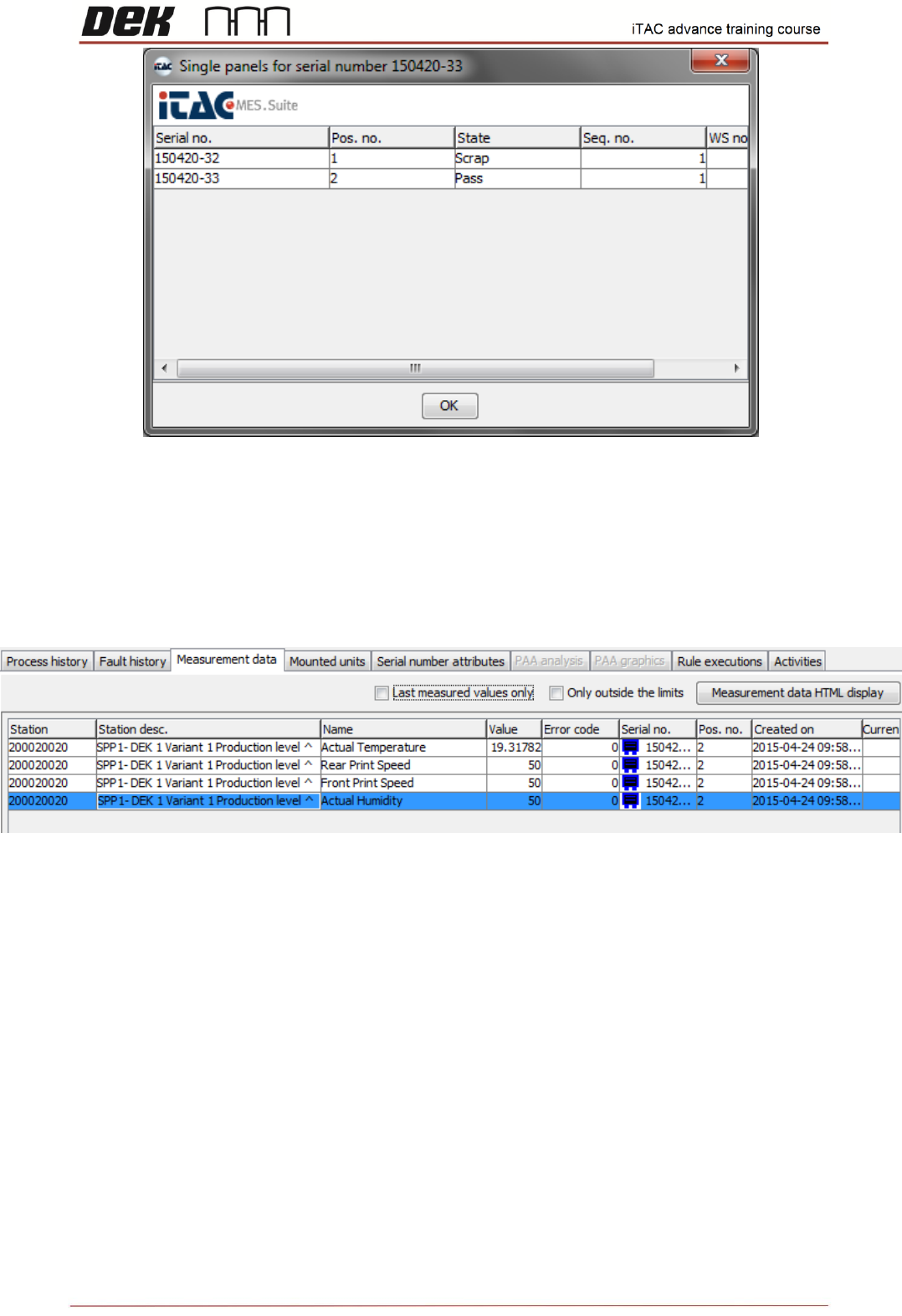

The panel info shows the state of all associated serial numbers for this work step

Issue 2, Mar 18

Measurement data shows the traceability data uploaded to iTAC server.

Note: Shown data are based on traceability setting in Setup product\Option\Traceability and

selected items in in E:\Config\PluginData\iTAC7\iTAC7TraceabilityData.xml

❑ Click on Measurement data tab

NOTES:

Issue 2, Mar 18

Printer log files

If something goes wrong, the iTAC log can be checked (open latest log file in

E:\Log\PluginData\iTAC7) and found which API function is causing issues.

See example below

; 2014/04/24 11:39:36.911 7220.213 CSetup->CheckSetup->Completed without error

; 2014/04/24 11:39:36.911 7220.213 SetupCheck Message

SerialNumberRef : -1

SerialNumberRefPos : 1

WorkOrderNumber : 23042014

Process Layer : ComponentSide

CheckMode : 1

ResultMode : 1

SetupCheck Message Output

WorkOrderNumber : 23042014

ProductNumber : FP0002

PlacementName :

SetupActive : 1

; 2014/04/24 11:40:49.715 7293.017 CTrace->GetStationSetting->Completed without error

; 2014/04/24 11:40:49.715 7293.017 Work Order Number: 23042014

; 2014/04/24 11:40:49.715 7293.017 Process Layer: ComponentSide

; 2014/04/24 11:40:49.715 7293.017 BOM Version: 4

; 2014/04/24 11:40:49.715 7293.017 Part Number: FP0002

; 2014/04/24 11:40:49.793 7293.095 Error calling CMaterial->GetMaterialBinData

2014/04/24 11:40:49.793 7293.095 E: Exception caught:

; 2014/04/24 11:40:49.809 7293.111 DEK.iTAC7.CResultWarning: Exception of type

'DEK.iTAC7.CResultWarning' was thrown.

; at DEK.iTAC7.CExceptionHelper.HandleResult(CiTAC7 theITAC7, IDebugLog theLogger, Object

theInstance, String theCaller, Int32 theResult)

; 2014/04/24 11:40:49.809 7293.111 Exception thrown in GetMaterialBinData, Error Code: 1

; 2014/04/24 11:40:49.809 7293.111 GetMaterialBinData Message

MaterialBinFilters

Key : MATERIAL_BIN_NUMBER

Value : barcode

Attribute: empty

MaterialBinResultKeys

MATERIAL_BIN_PART_NUMBER

MATERIAL_BIN_QTY_ACTUAL

MATERIAL_BIN_STATE

MaterialBinResultValues

From the log is visible that function “GetMaterialBinData” was thrown with error code 1.
