61 Issue 2 , Mar 18 Objective HO 17 : Use “ mlUploadMaterialBinBooking ” API function and modify the quantity. NOTES:

Issue 2, Mar 18

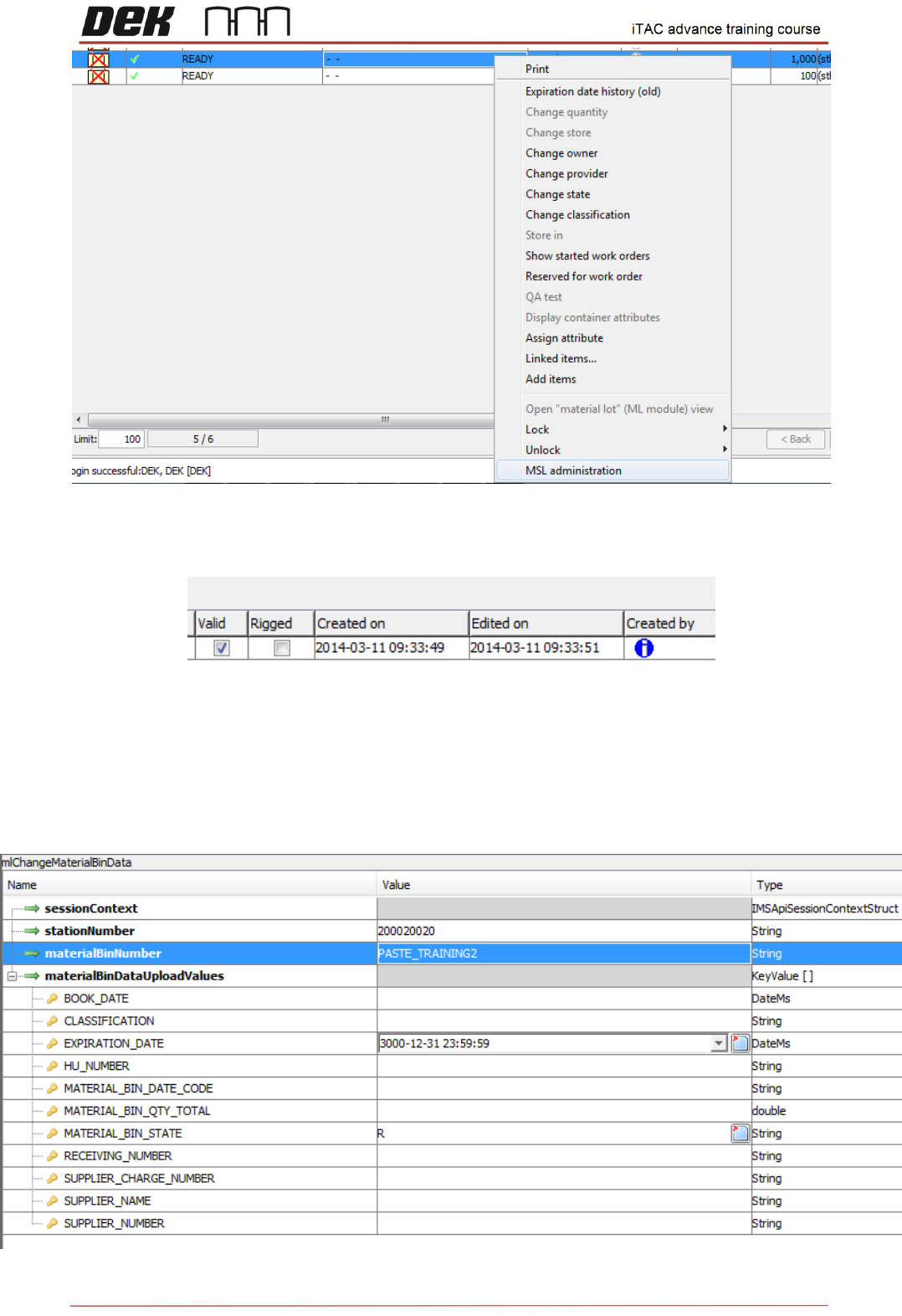

In MSL administration tab can be checked whether paste is rigged or not

Due to limited access we have to use the API functions to add/maintain container.

New paste container can be added by using “mlCreateNewMaterialBin” function.

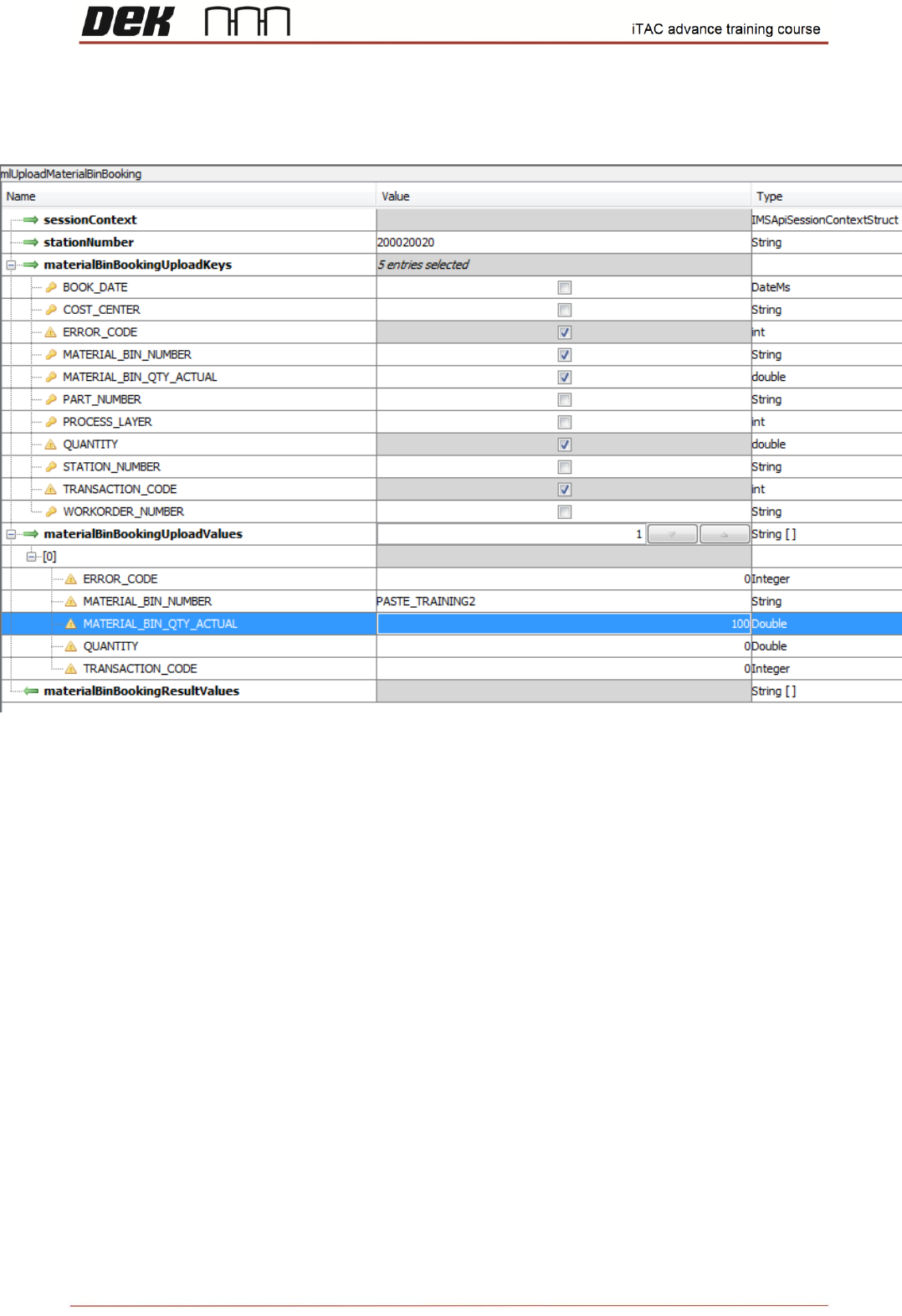

Quantity for existing paste container can be maintained by using “mlUploadMaterialBinBooking” API

function.

Use the function “mlChangeMaterialBinData” to maintain expiration date and paste container state.

Issue 2, Mar 18

Objective HO 17: Use “mlUploadMaterialBinBooking” API function and modify the quantity.

NOTES:

Issue 2, Mar 18

iTAC variants

New API flow was developed to suit all variants, it means now panel can be processed either as

Process Interlocking, Assign or Assign & Merge. (Refer to DEK paste printer specification)

Variant 1

Used at BHTC customer. It can be used at any customer using double sided lines.

DEK 1 - iTAC Barcode Verification (Interlocking) - ENABLED

Assign Barcode - ENABLED

Activate Barcode (Merge) – ENABLED

DEK 2 - DEK 1 - iTAC Barcode Verification (Interlocking) - ENABLED

Assign Barcode - DISABLED

Activate Barcode (Merge) – DISABLED

Note: Single Work Order is combining 2 lines, 1

for component side and 2

for bottom side

NOTES:
