Objective HO 1: Locate the hazardous areas of the machine / option.
Personal Safety
Watch the video and tick each safety item as it is demonstrated to you by
your instructor:
❑ Board clamps are sharp
❑ Wear eye protection and gloves when working with solder paste and
solvents
❑ If in doubt press the E-stop
❑ Do not bypass camsafe switches
Warning
▪ Moving machine parts can cause injury.
▪ During this course the machine may be operated with covers removed.
▪ Always remove system power prior to undertaking any work on machine.
▪ Ensure you DO NOT push or press any buttons or operate the machine until all
personnel are clear of danger
Strong Magnet warning (Machines with Linear Motors only)
▪ The linear motors inside the machine contain strong
permanent magnets. These
may interfere with pacemakers and metallic implants.
▪ These magnets could potentially erase data on credit cards, ID cards etc.
ESD hazard
▪ The printer contains Electro-Static Sensitive Devices (ESD).
▪ Do not touch any electronic component of PCB unless wearing a
correctly grounded wrist strap
Safety objective
I have been briefed on the above safety aspects and I am fully satisfied with my
responsibilities.
Sign:
Date:
7
Issue 2, Mar 18
Description of operation
iTAC is Manufacturing Execution System (MES) software running on a master
server located remotely from the manufacturing line. Machines in the production line (including the
DEK printer) are connected to the iTAC server.
Using barcodes, the server verify the product board entering the printer and selected consumables
that are used in the print process. Once board is printed the state and required traceability data (such
as verified items, actual pressure, set pressure) is uploaded into server assigned to the barcode of
currently produced panel.
NOTES:
8
Issue 2, Mar 18

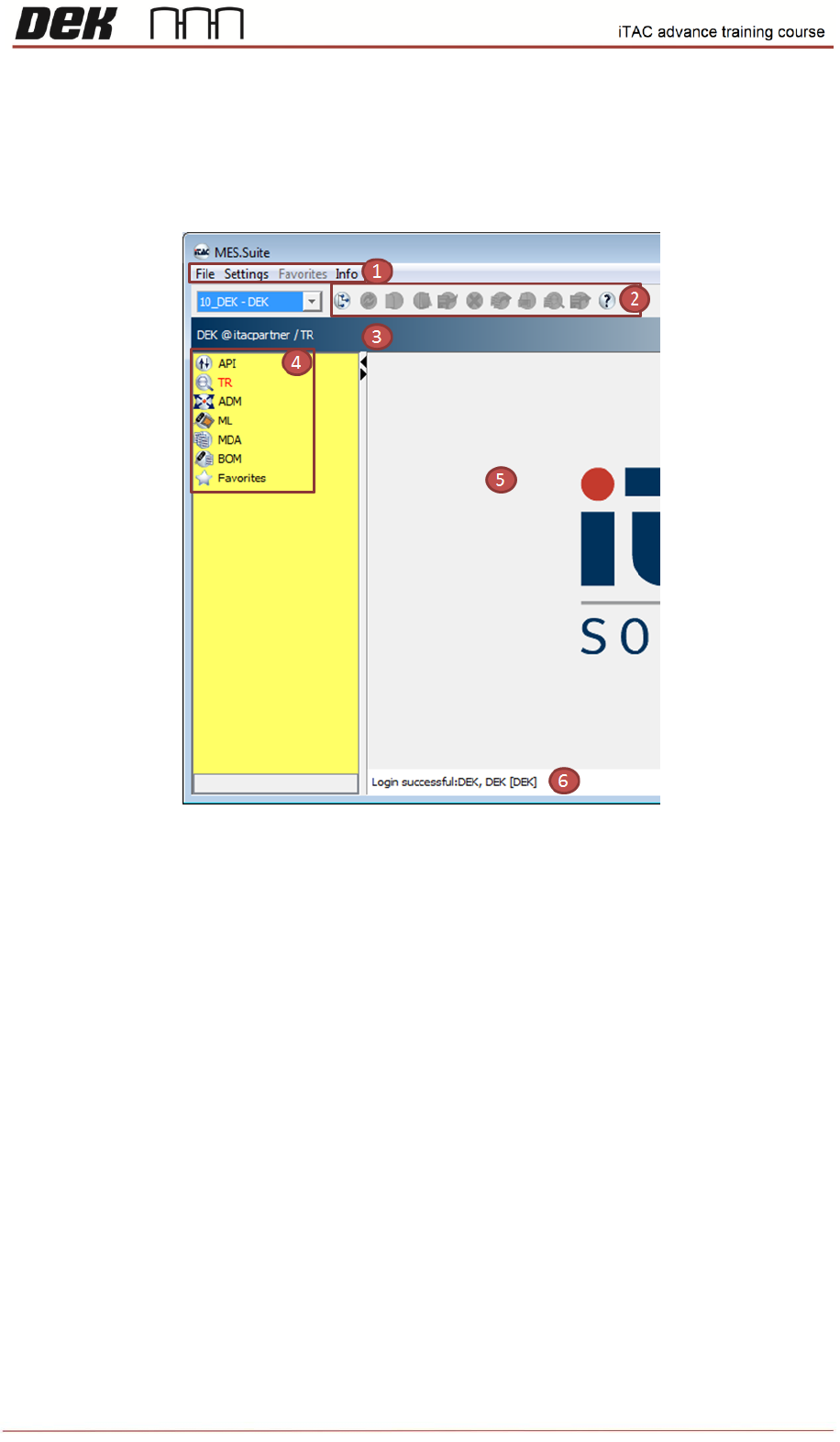

Windows elements
The iTAC workplace consists of various components for displaying information and operating
iTAC.MES.Suite.
Objective SS 2: List items 1-6 of window elements.
Remember the iTAC7 User Guide is the recognized source of information.
1. ……………………………………………………………………………………….
2. ……………………………………………………………………………………….
3. ……………………………………………………………………………………….
4. ……………………………………………………………………………………….
5. ……………………………………………………………………………………….
6. ……………………………………………………………………………………….
NOTES:
